Dehn 745500 E+K Set II EKS TI 2F KVS SBK Sheet metal case
Product details
DEHN Earthing and Short-Circuit Set EKS TI 2F KVS SBK
Manufacturer: DEHN
Description: Earthing and Short-Circuit Set TI 2-fold for KVS
Type: EKS TI 2F KVS SBK
Design: Cable
Number of Poles: 3
Max. Short-Circuit Current: 7 kA
Phase Side Cable Cross-Section: 25 mm²
Earth Side Cable Cross-Section: 25 mm²
Length of Phase Cable a: 200 mm
Length of Phase Cable b: 400 mm
Length of Phase Cable c: 600 mm
Length of Earth Cable: 500 mm
Connection Part Phase Side: Other
Connection Part Earth Side: Other
Fully Insulated: No
Material: Copper

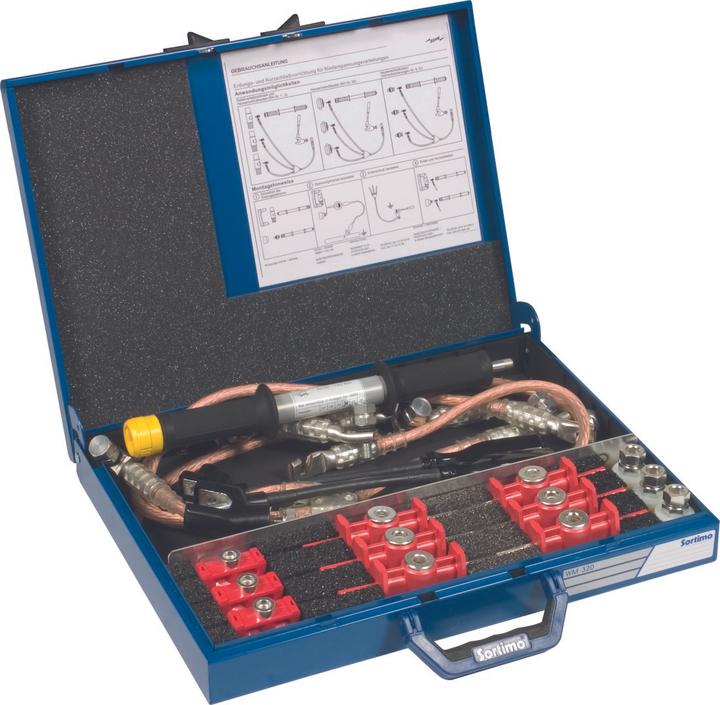

The three-pole earthing and short-circuit set TI in a steel sheet case according to DIN VDE 0683-100 (EN/IEC 61230) is used for earthing and short-circuiting electrical installations at the workplace according to DIN VDE 0105-100 (EN 50110). Partially insulated (TI) design with M10 connection thread. Complete set for low-voltage cable distribution (KVS). Variant number of the EuK device VUKMT58. Other cable lengths can be selected online via the EuK configurator. EAN: 4013364007888.
