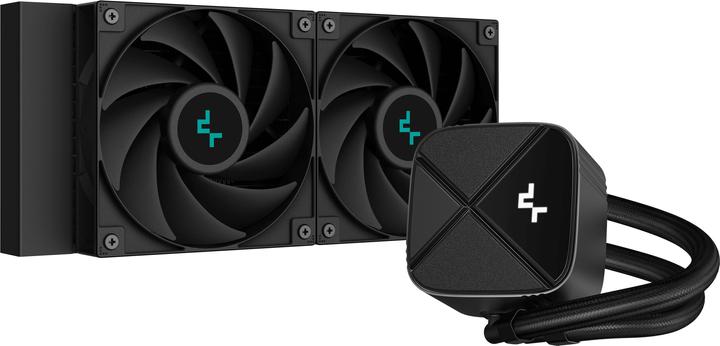

240 mm large radiator
Completely in simple black
2x 120 mm PWM fans with minimal airflow noise
Multiple chambers in the CPU block ensure very good cooling
Hoses with black sleeves
Excellent cooling for your CPU
The DeepCool LS520S ZERO DARK all-in-one liquid cooler combines good looks with efficient cooling. The CPU block is equipped with multiple channels that better isolate hot and cold coolant, thereby facilitating more effective heat dissipation.

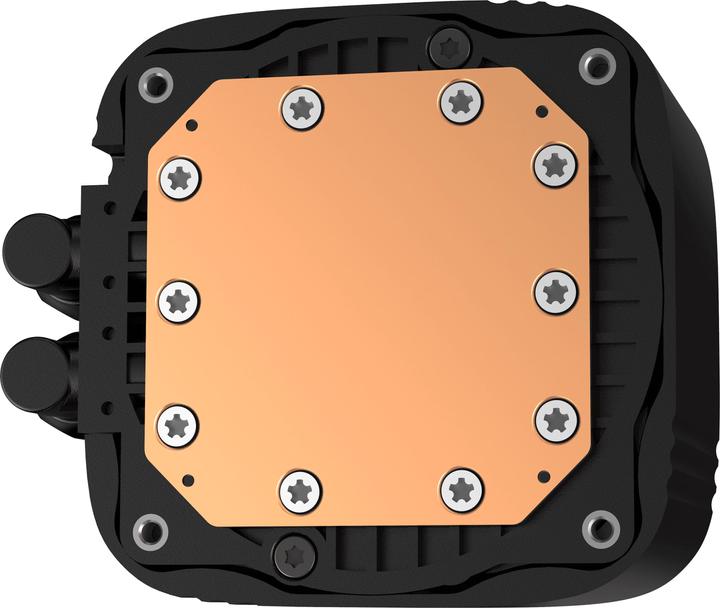

High-performance pump and copper radiator
The pump motor uses a three-phase design for smooth, quiet operation. It circulates the coolant at speeds of up to 3,100 RPM through the massive copper base plate of the cooler. A 240 mm radiator made of aluminum serves as the heat sink for the heated coolant, making it very effective for heat dissipation.

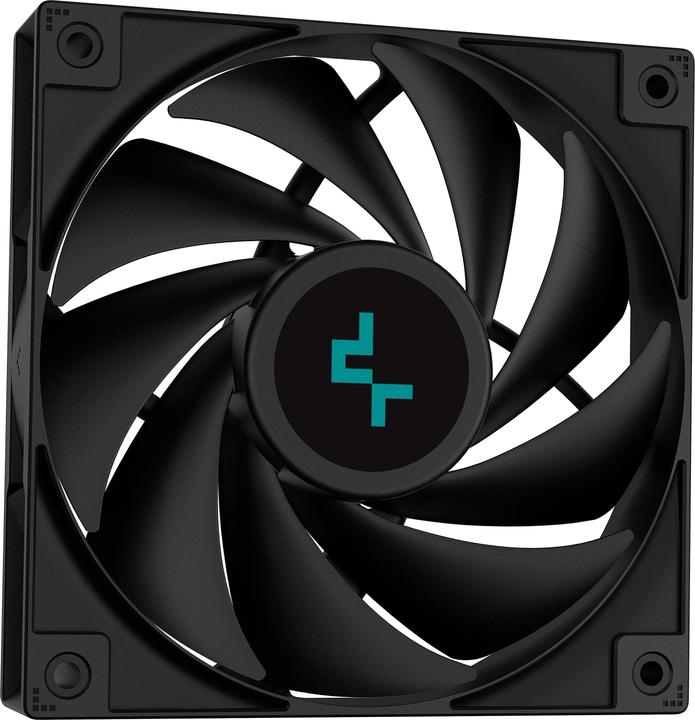

120 mm fans with excellent airflow
Two included fans provide very good airflow. The 120 mm fans impress with their very quiet operation and excellent static pressure.
Technical details
Color: Black
CPU cooler:
Dimensions: 86 × 74 × 57 mm (W x H x D)
Material: Copper

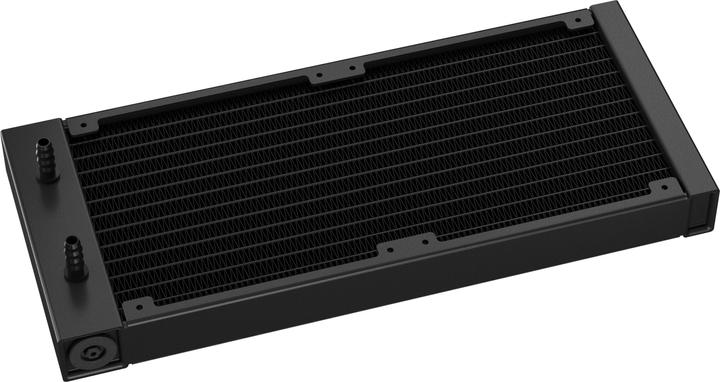

Radiator:
Dimensions (without fans): 282 × 120 × 27 mm (W x H x D)
Material: Aluminum
Pump:
Speed: 3,100 RPM
Rated voltage: 12 V
Fans:
Quantity: 2
Speed: max. 1,850 RPM
Airflow: 117.22 m³/h
Static pressure: 2.19 mmAQ
Noise level: max. 28 dB(A)
Connection: 4-Pin PWM
Rated voltage: 12 V
Compatibility:
Intel socket: LGA 1700, 1200, 115x
AMD socket: AM5, AM4.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
CPU Water Cooling Type | AiO water cooling |
Bottom plate material | Copper |
Number of fans | 2 Fan |
Fan dimension | 120 mm |
Item number | 41292277 |
Manufacturer | Deepcool |
Category | CPU water coolers |
Manufacturer no. | R-LS520-BKNNMM-G-1 |
Release date | 23.12.2023 |
External links |
Colour | Black |
Exact colour description | Black |
LED colour | without LED |
CPU Water Cooling Type | AiO water cooling |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
Bottom plate material | Copper |
Cover material | Aluminium |
Number of fans | 2 Fan |
Fan dimension | 120 mm |
Max. Speed | 2250 RPM |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 282 mm |
Width | 120 mm |
Height | 27 mm |
Weight | 1360 g |
Length | 42.20 cm |
Width | 16.40 cm |
Height | 17.60 cm |
Weight | 1.88 kg |
How often does a product of this brand in the «CPU water coolers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «CPU water coolers» category returned?
Source: Digitec GalaxusSimilar to the DeepCool LS520 SE, the LS520S Zero Dark also impresses in many areas. Firstly, there is the excellent cooling performance, which in some cases is even better than that of some compact water cooling systems with a larger radiator. This is complemented by a very sleek appearance, high-quality workmanship and a still very good and simple mounting system...
