CK500, tower case

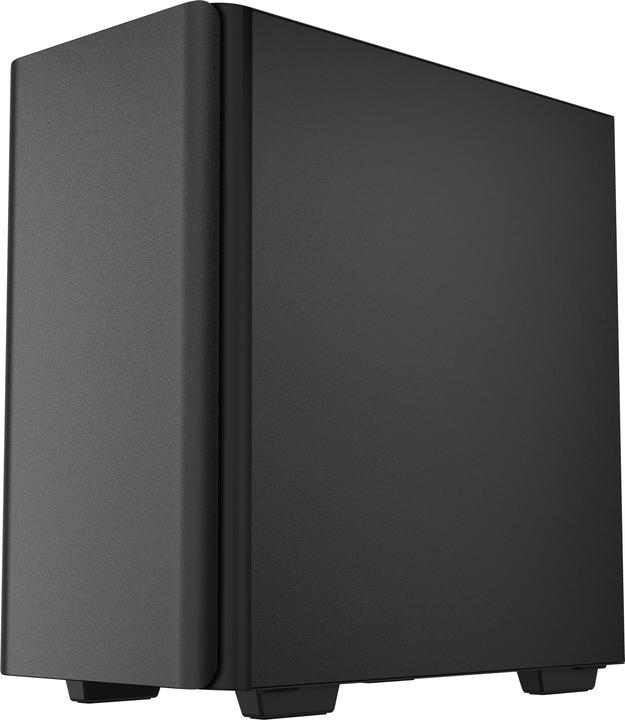

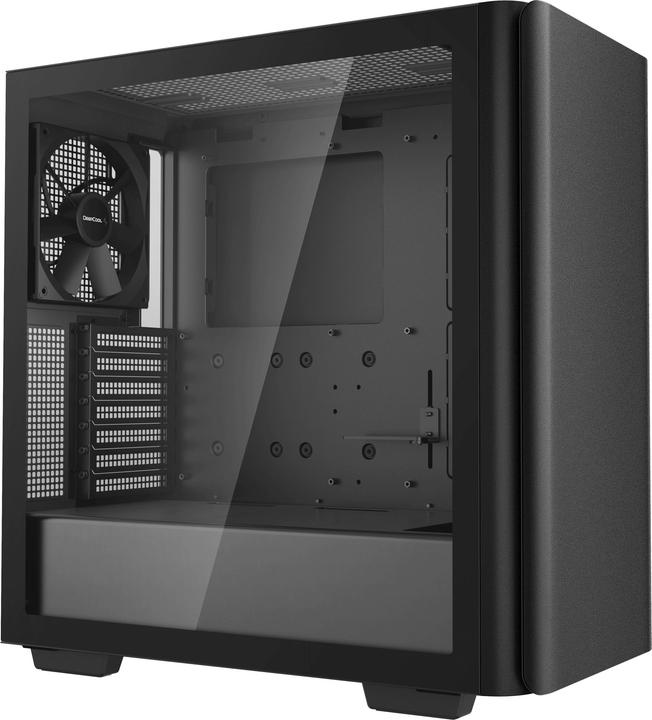

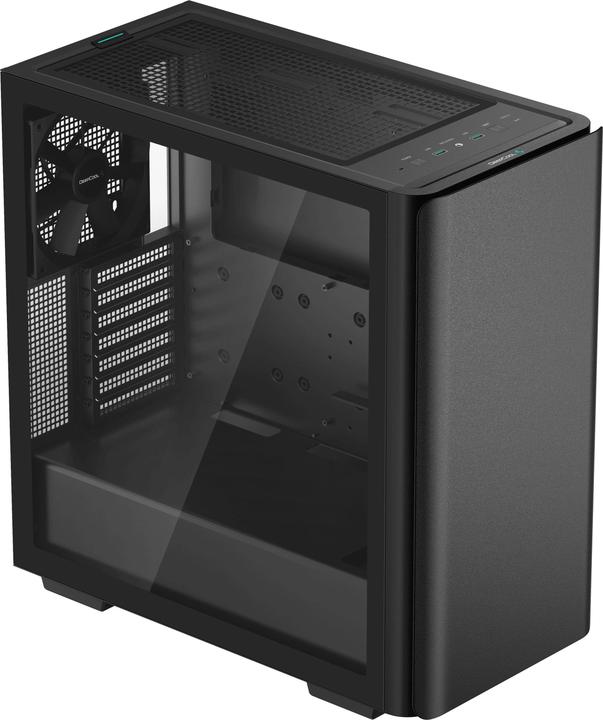

The DeepCool CK500 midi-tower case is a slim and minimalist case that offers balanced airflow and noise performance for the modern system builder with two pre-installed 140mm performance fans. Sleek, curved edges offer a premium appearance and minimalist design, while large vents allow for better airflow. The solid steel plate features an easy-to-release magnetic quick connect.
Type: Tower case
Color: Black
EAN code: 6933412714866
Manufacturer number: R-CK500-BKNNE2-G-1
Design: midi tower
Mainboard form factor: E-ATX
Material: ABS, SPCC, Tempered Glass
Window Kit: Yes
Mesh Front: Yes

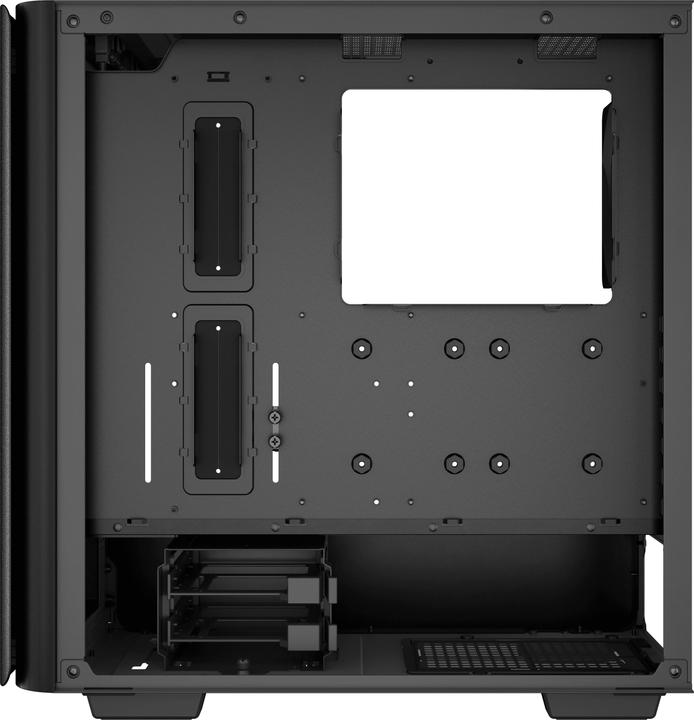

Internal dimensions: plug-in card length | maximum 380 mm
Internal measurements: CPU cooler height | maximum 175 mm
Internal dimensions: PSU form factor | ATX
Internal dimensions: PSU length | maximum 160 mm
Drive bays: 3.5 inch | internal | 2 pieces
Drive bays: 2.5 inch | internal | 2 pieces
Slots: Full Size | 7 pieces

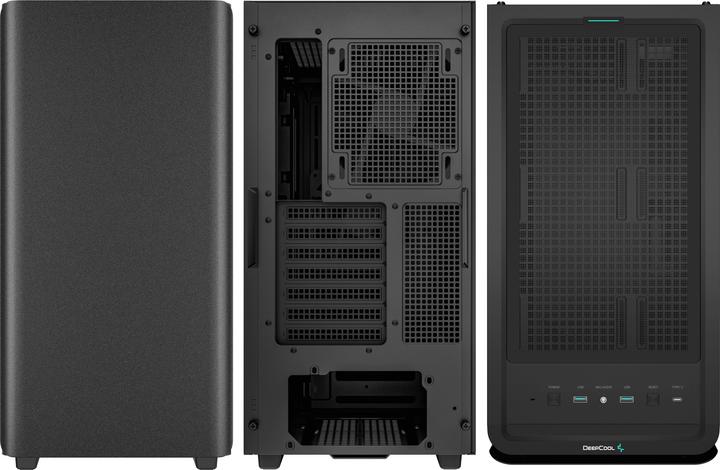

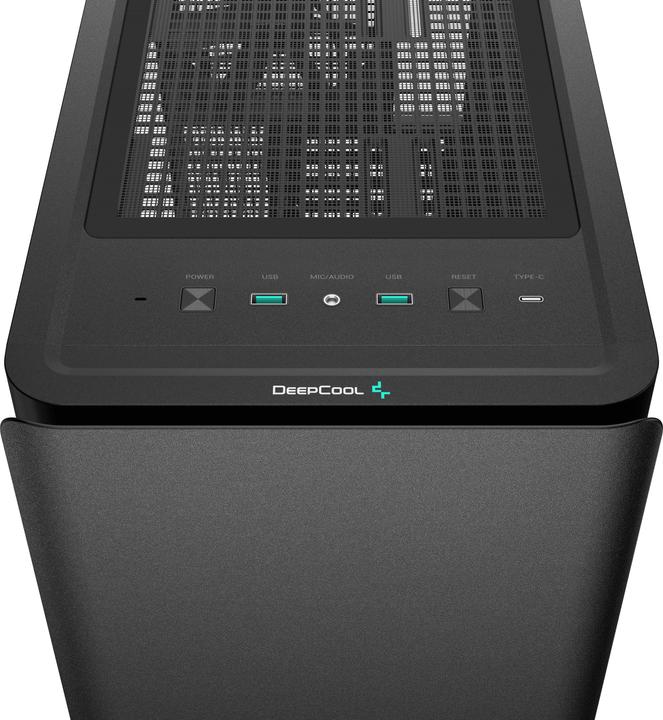

Front connectors: 1x audio, 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 1 (5 Gbps)
Front connectors: The designation USB 3.2 Gen 1 corresponds to the former designation USB 3.1 Gen 1 / USB 3.0.

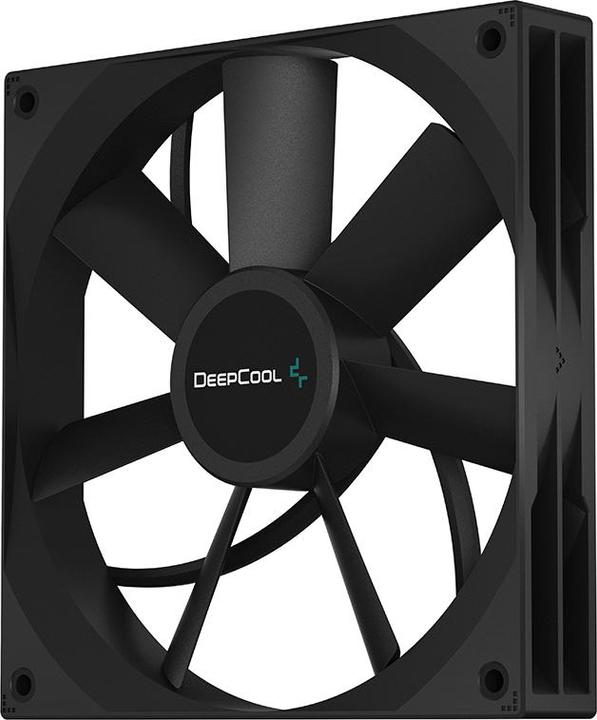

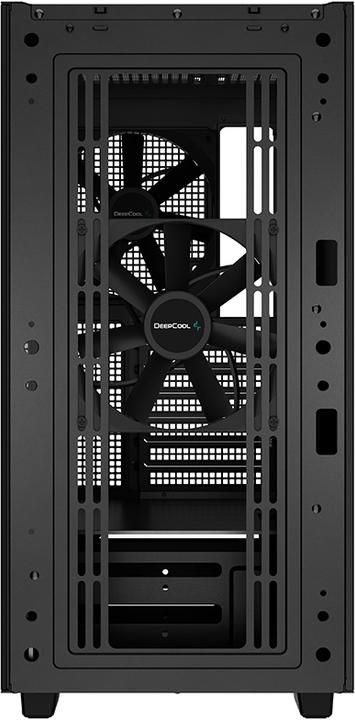

Front: 1x 140 mm fan available, another 140 mm fan can be installed, alternatively 3x 120 mm fans can be installed

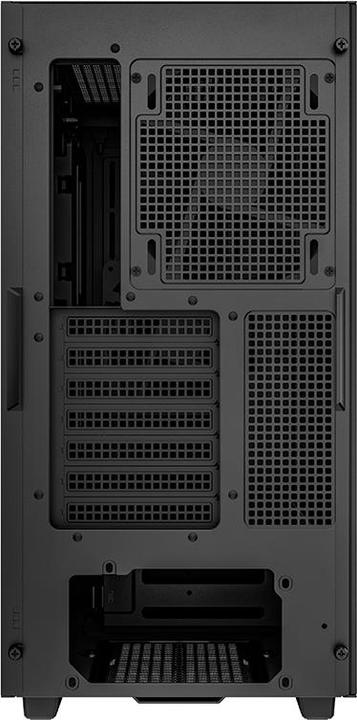

Rear: 1x 140 mm fan available, alternatively 1x 120 mm fan can be installed
Notes: 2x 140mm or 2x 120mm fans can be installed on the top
Water cooling possible: Yes
Water cooling possible: Supported radiators | Front: 120/140/240/280/360mm, Top: 120/140/240/280mm, Rear: 120/140mm
Dimensions: Width: 230mm x Height: 471mm x Depth: 456mm
Weight: 8kg.
PC case design | Midi tower |
Number of 3.5" drive slots (internal) | 2x |
Max. length graphics card | 380 mm |
Max. height CPU cooler | 175 mm |
Max length of power supply | 160 mm |
PC case features | Side windows |
Item number | 20851562 |
Manufacturer | Deepcool |
Category | PC case |
Manufacturer no. | R-CK500-BKNNE2-G-1 |
Release date | 12.5.2022 |
Colour | Black |
Exact colour description | Black |
Material group | Glass, Metal, Plastic |
Material | ABS, Spcc, Tempered glass |
PC case design | Midi tower |
Form factor | ATX, E-ATX, Micro ATX (mATX), Mini-ATX |
"Number of 5.25"" drive slots" | 2x |
Number of 3.5" drive slots (external) | 2x |
Number of 3.5" drive slots (internal) | 2x |
"Number of 2.5"" drive slots" | 2x |
Number of expansion card slots | 7x |
Max. length graphics card | 380 mm |
Max. height CPU cooler | 175 mm |
Max length of power supply | 160 mm |
PC case features | Side windows |
Number of fans | 1x |
Number of fan slots | 2x |
Fan location | Front side, Rear side |
Cooling properties | Water cooling possible |
Fans included | 1x 140mm |
Fans included | 1x 140mm |
Fan mount locations | 1x 120mm |
Fans included | 2x 140mm |
Fan mount locations | 2x 140mm, 3x 120mm |
Fan mount locations | 1x 140/120 mm left |
CO₂ emissions | 61.09 kg |
Climate contribution | CHF 1.45 |
Scope of delivery | Tower case |
Height | 47.10 cm |
Length | 45.60 cm |
Width | 23 cm |
Weight | 8 kg |
Length | 53 cm |
Width | 30 cm |
Height | 52 cm |
Weight | 9.21 kg |
How often does a product of this brand in the «PC case» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «PC case» category returned?
Source: Digitec GalaxusDeepCool does without RGB in the CK500, but instead relies on a chic and timeless look, fundamentally good workmanship and an excellent layout with plenty of space for hardware. Only the airflow suffers somewhat from the design of the steel front panel.
