Deepcool CH360 Digital

Mini-ITX, mATX
Delivered between Sat, 24.5. and Wed, 28.5.
Only 4 items in stock at supplier

Product details

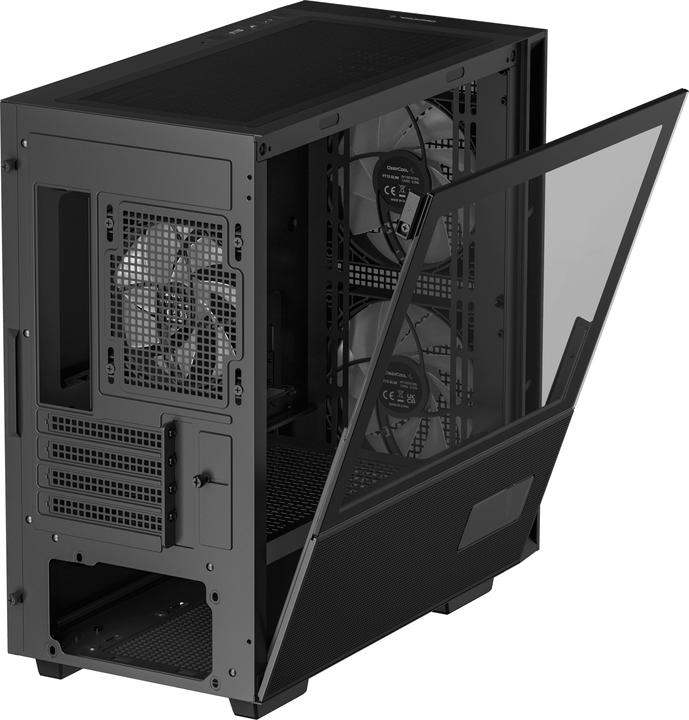

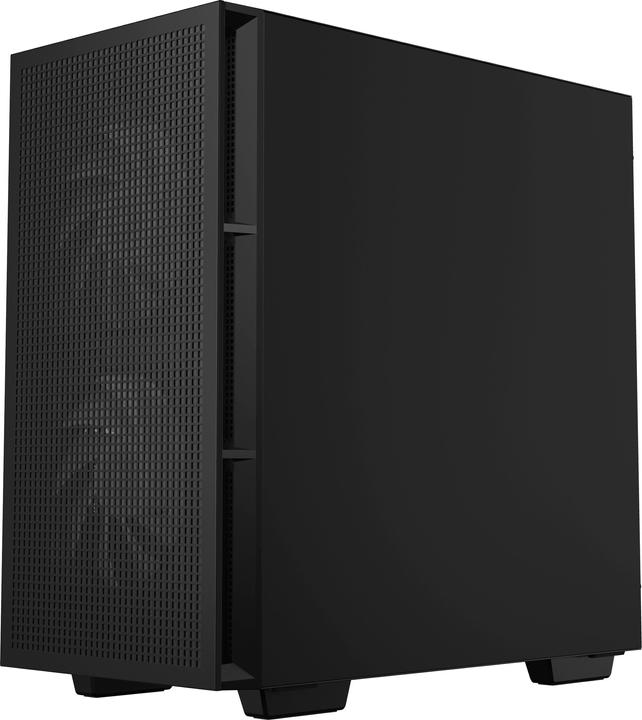

The CH360 Digital WH provides exceptional airflow from all sides of the chassis. From the high airflow front panel to the tempered hybrid glass side panels, cool air is always available for modern power-hungry components. The unique hybrid tempered glass and mesh side panel offers a crystal clear view of the system's core while providing modern GPUs with additional ventilation, creating a functional yet elegant design.

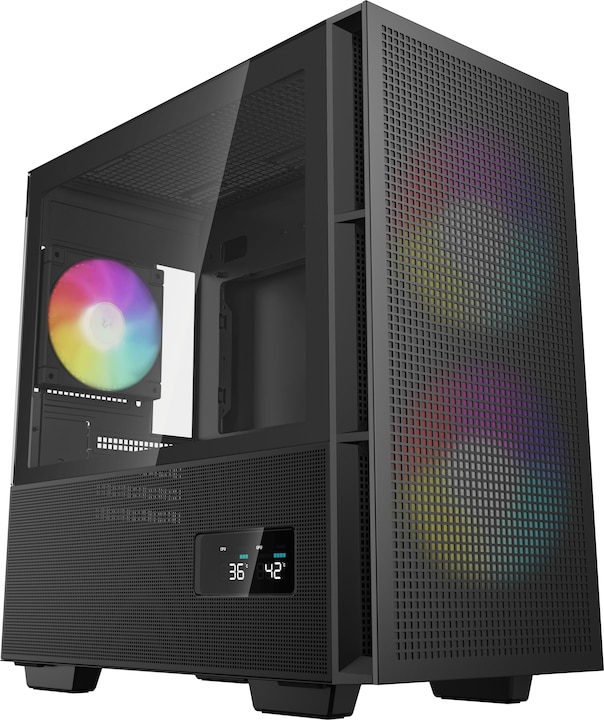

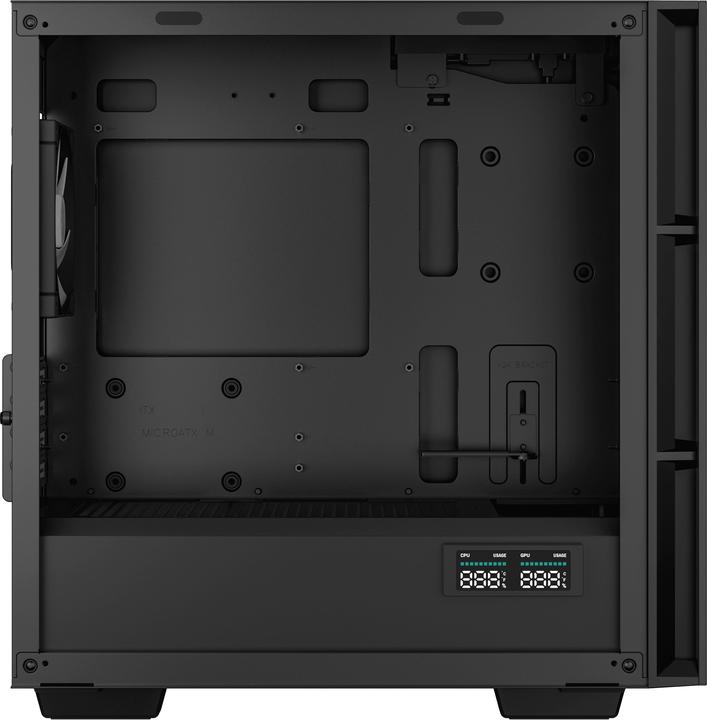

Monitor important CPU and graphics card information from your gaming station with the integrated digital dual status screen. Choose between CPU and graphics card temperature, utilization, or both, switching between temperature and utilization in 5-second intervals. An easy-to-use app allows you to control the status of the displays.

The CH360 Digital WH features a variety of cooling configurations, including the ability to mount a 360mm heatsink on the front and two included 140mm ARGB fans. With support for 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs, the CH360 Digital WH can be configured with a wide range of modern components.

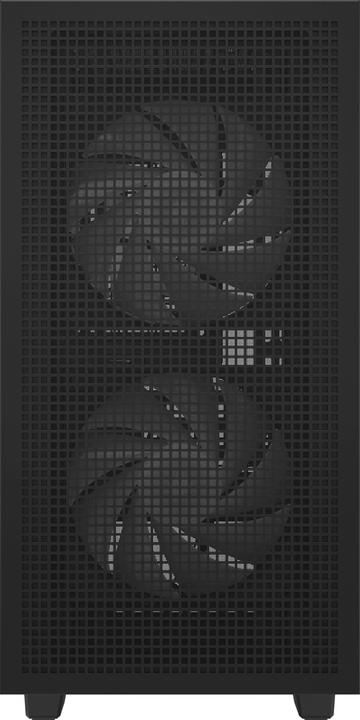

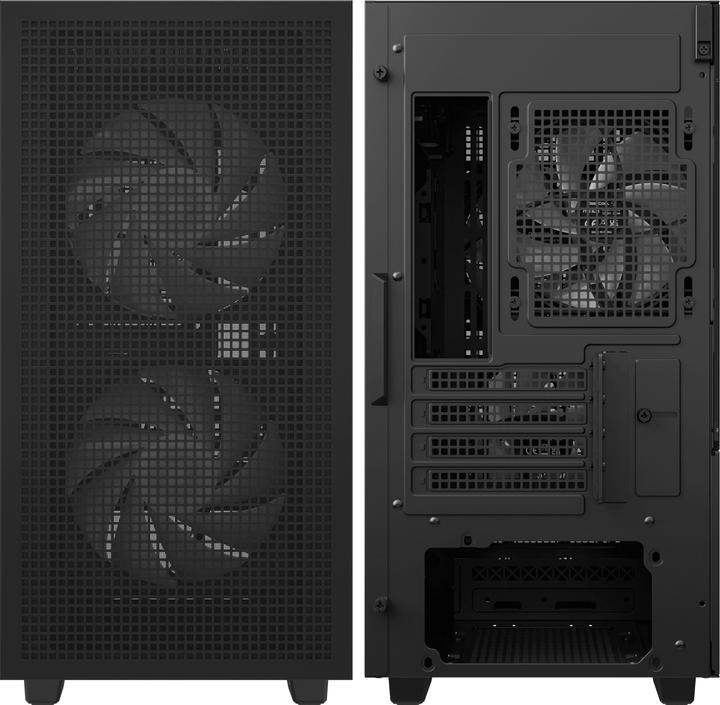

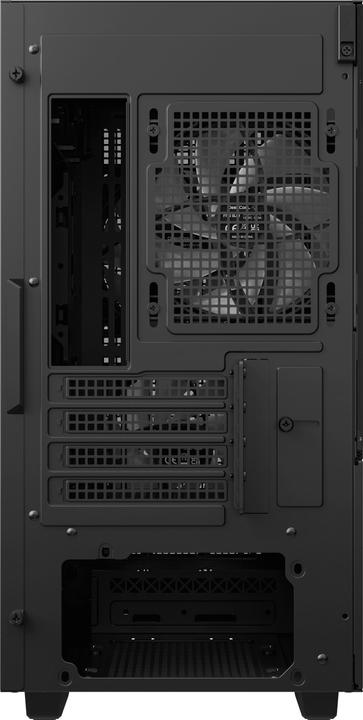

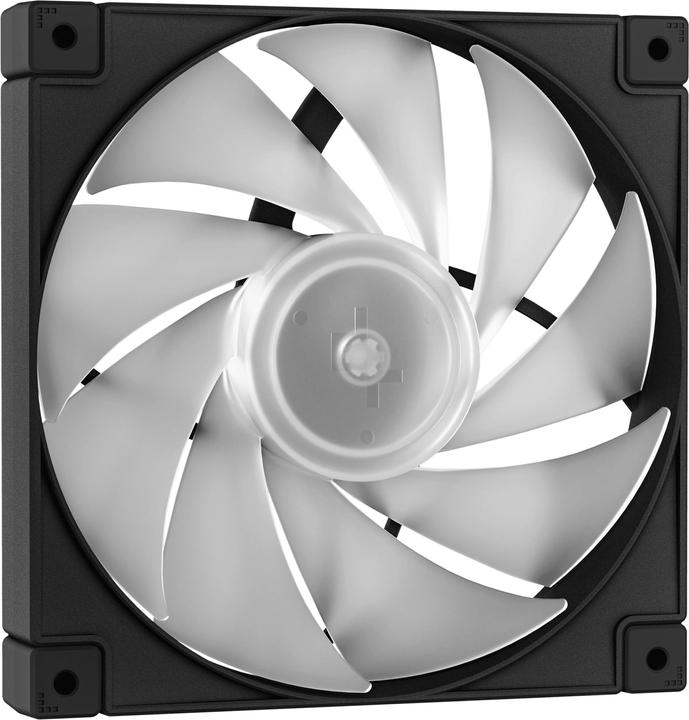

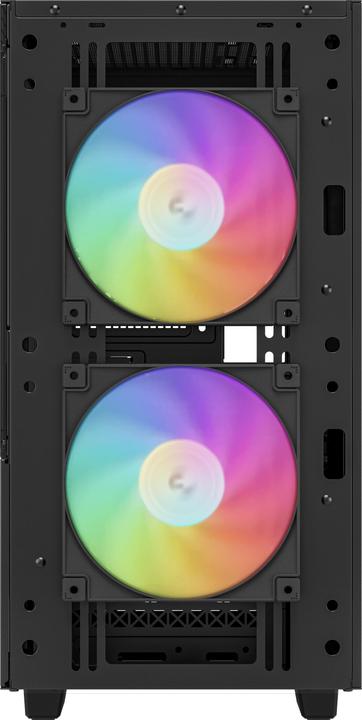

Two bright 140mm ARGB fans with PWM support are pre-installed on the front, bringing plenty of fresh air into the case. These fans are mounted outside the main chamber to provide additional clearance for modern GPUs while maintaining a smaller footprint. At the rear of the case is a 120mm ARGB fan to help dissipate heat from inside the case.

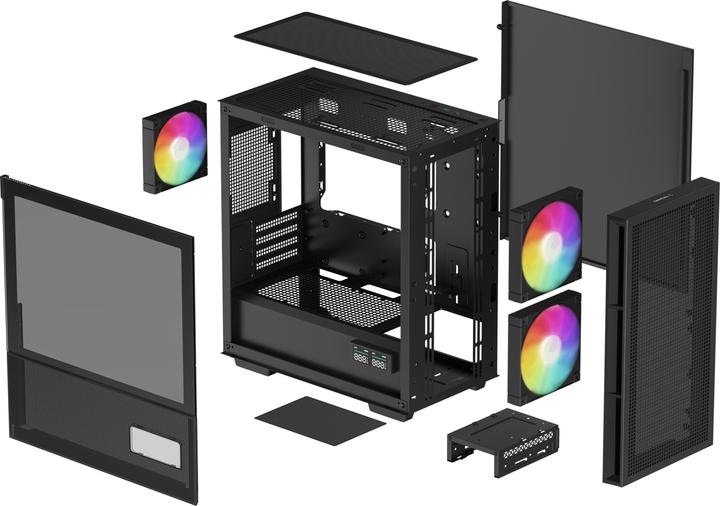

Assembly and maintenance of the CH360 Digital WH are straightforward, featuring a magnetic hybrid plate with an optional safety screw, magnetic air filters, an integrated GPU support arm, a removable hard drive cage, and a 26mm cable outlet behind the motherboard tray, making life with the PC a little easier.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
2 x
Max. length graphics card
320 mm

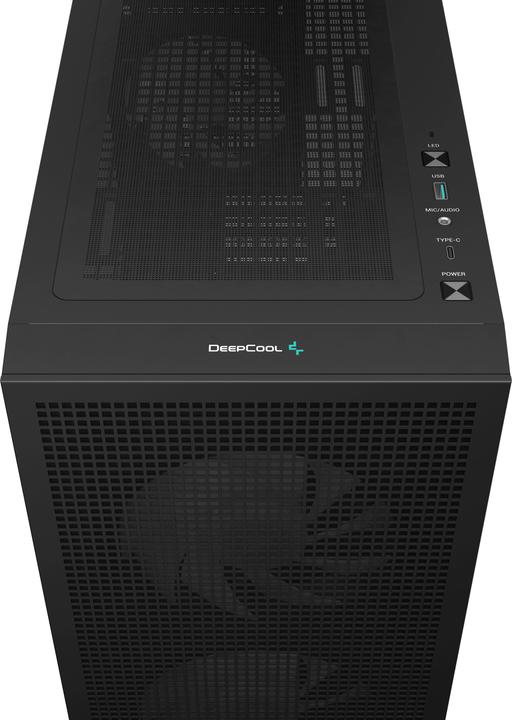

Front connectors
HeadphonesUSB 3.2USB Type C
PC case features
Side windows
Max. height CPU cooler
165 mm
Item number
45090427

General information

Manufacturer
Deepcool
Category
PC case
Manufacturer no.
R-CH360-BKAPE3D-G-1
Release date
20.4.2024

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Plastic
Material
ABSHardened glassSpcc

PC case properties

PC case design
Midi Tower
Form factor
Micro ATX (mATX)Mini-ITX
Number of 3.5" drive slots (external)
2 x
Number of 3.5" drive slots (internal)
2 x
"Number of 2.5"" drive slots"
3 x
Number of expansion card slots
4 x
Max. length graphics card
320 mm
Max. height CPU cooler
165 mm
Max length of power supply
160 mm
LED colour
Multicoloured
PC case features
Side windows

Connections

Front connectors
HeadphonesUSB 3.2USB Type C

Cooling properties

Number of fans
3 x
Number of fan slots
3 x
Number of radiator mounts
3

Front side

LED colour
Multicoloured
Fans included
2x 140mm
Fan mount locations
3x 120/140 mm
Radiator mount locations
1x max. 120mm1x max. 140mm1x max. 240mm1x max. 280mm

Rear side

LED colour
Multicoloured
Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Side

Fans included
2x 140mm

Top side

LED colour
Multicoloured
Fans included
2x 140mm
Fan mount locations
2x 120/140mm left
Radiator mount locations
1x max. 120mm1x max. 140mm

HDD Cage

LED colour
Multicoloured
Fans included
1x 120mm2x 140mm
Fan mount locations
3x 140mm
Radiator mount locations
1x max. 120mm1x max. 240mm1x max. 360mm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
43.10 cm
Length
42.80 cm
Width
21.50 cm
Weight
6 kg

Package dimensions

Length
49.70 cm
Width
47.70 cm
Height
28.60 cm
Weight
7.14 kg
