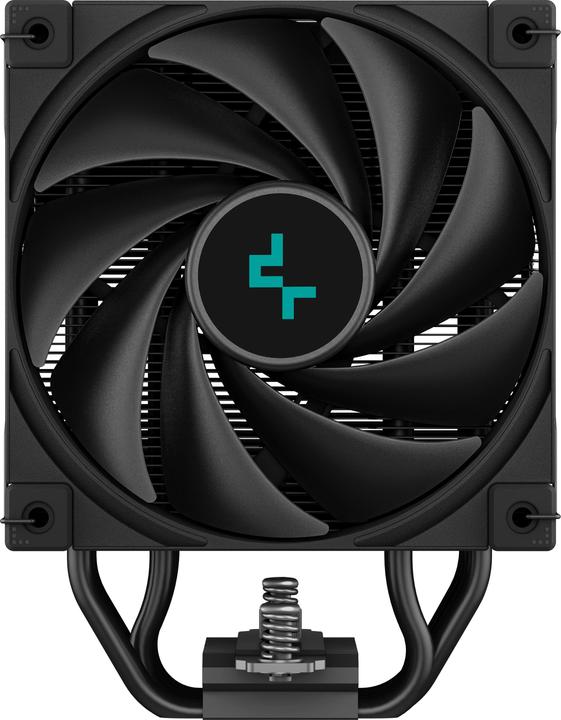

The DeepCool AK500S Digital is a powerful air cooler designed for efficient cooling of processors. With a sleek black design and a height of 160 mm, this single tower cooler is both functional and aesthetically pleasing. The cooler features a 12 cm fan that reaches a maximum speed of 1850 RPM and provides a static pressure of 2.19 mmH2O. This allows for effective heat dissipation even under demanding conditions. The AK500S Digital supports a variety of processor sockets, including LGA 1150, LGA 1700, AM4, and AM5, making it a versatile choice for different systems. Additionally, the RGB lighting adds a customizable visual component that integrates harmoniously into modern PC builds. With a maximum noise level of 28 dB, the cooler operates pleasantly quietly, making it ideal for gaming and work environments.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
Diameter | 120 mm |
Number of fans | 1x |
Airflow | 117.20 m³/h |
power connector | 4-pin |
Height (with fan) | 160 mm |
Item number | 39161686 |
Manufacturer | Deepcool |
Category | CPU coolers |
Manufacturer No. | R-AK500S-BKADMN-G |
Release date | 5.10.2023 |
External links |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Single Tower |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
Supported fan sizes | 120mm |
Number of heatpipes | 5 |
Diameter heat pipe | 6 mm |
Materials radiator core | Aluminium |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Number of fans | 1x |
Maximum mountable fan | 1 |
Max. Speed | 1850 RPM |
Airflow | 117.20 m³/h |
Static pressure | 21.48 Pa |
Max. noise level | 28 dB |
LED lighting | RGB |
power connector | 4-pin |
Nominal voltage | 5 V |
Power consumption | 1.44 W |
Country of origin | China |
CO₂ emissions | 24.79 kg |
Climate contribution | CHF 0.59 |
Width (with fan) | 96 mm |
Length (with fan) | 125 mm |
Height (with fan) | 160 mm |
Weight | 997 g |
Length | 22 cm |
Width | 18 cm |
Height | 16 cm |
Weight | 1.20 kg |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Digitec Galaxus
The processor cooler fits all Intel or AMD CPUs from the last decade (see table). According to the manufacturer, it dissipates up to 240 watts of waste heat via its five evaporator tubes into the black-painted cooling fins, in front of which a 120-millimetre fan rotates. The cooler keeps the keep-out area in front of and behind the CPU socket, making it suitable for quad-channel systems with RAM on...
