Deepcool AG620

157 mm
Delivered between Tue, 7.4. and Fri, 10.4.
More than 10 pieces in stock at supplier
free shipping

Colour4

Product details

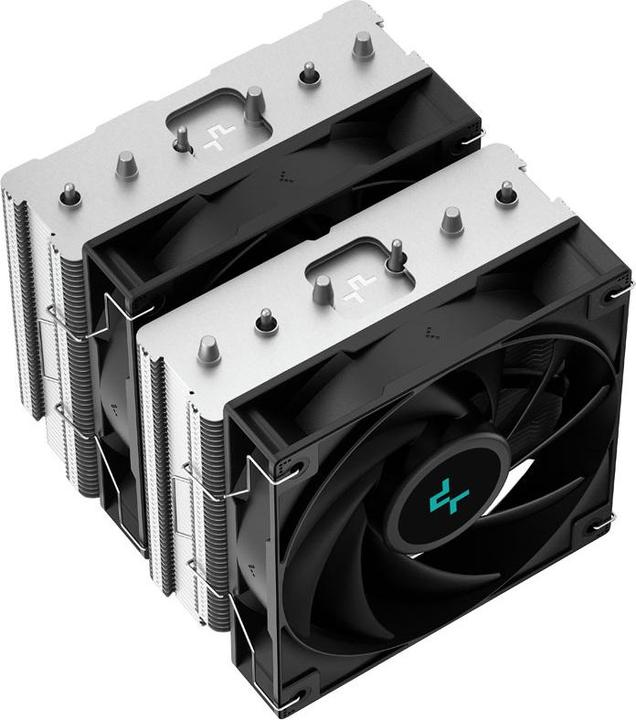

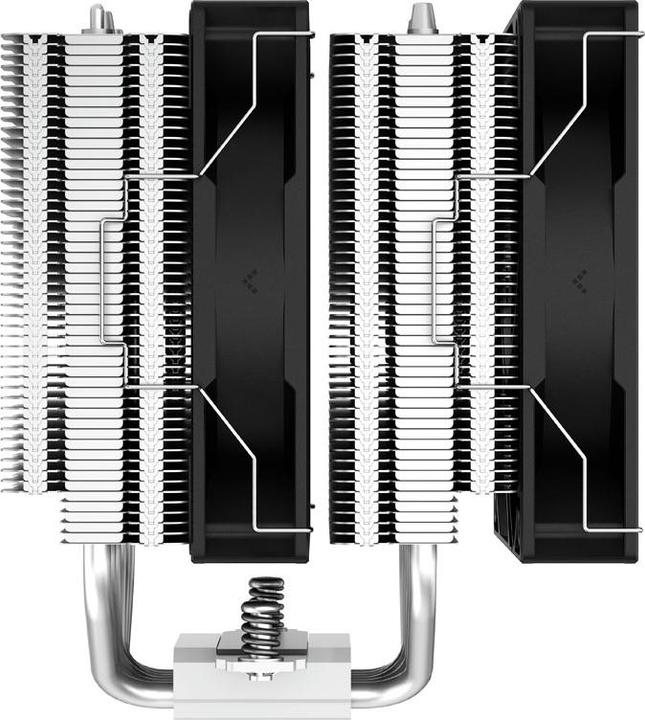

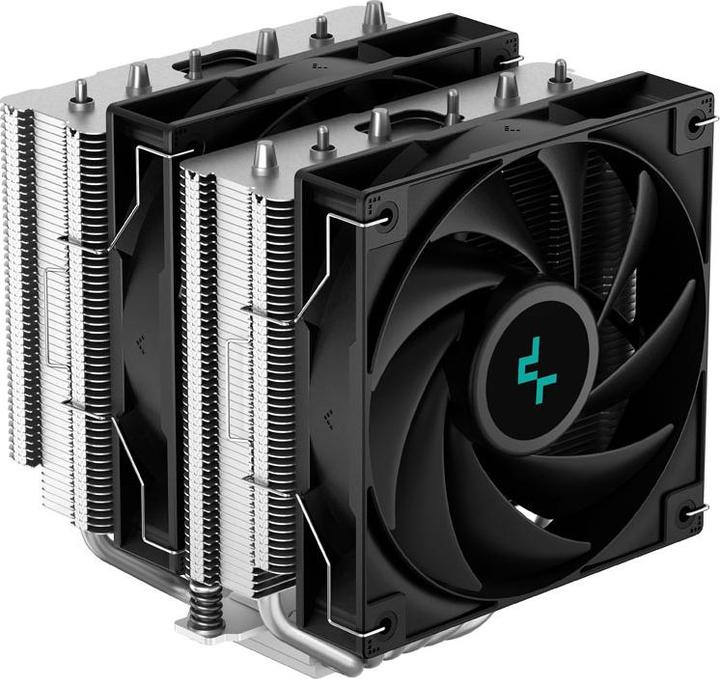

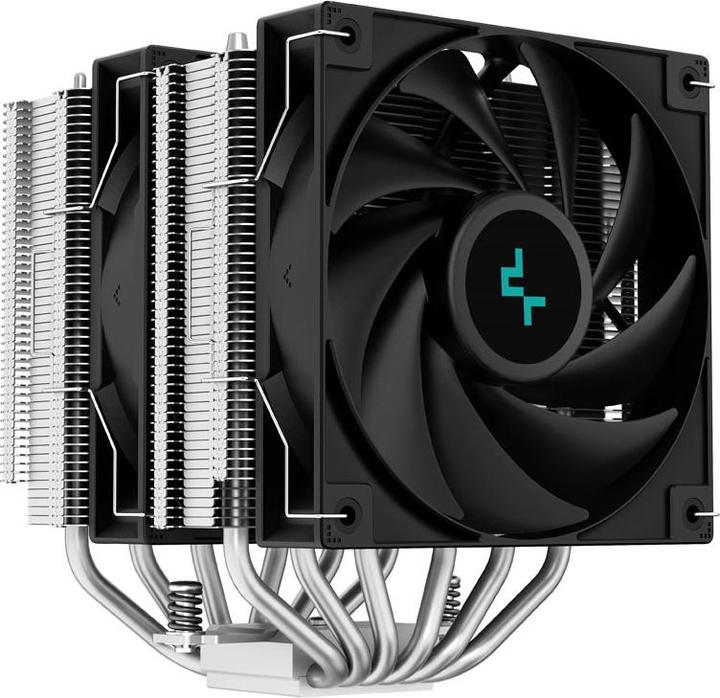

The DeepCool AG620 is a dual-tower CPU cooler with a 120 mm fan that offers an impressive cooling performance of 260 W and is optimized for excellent efficiency.

Significant Cooling Performance
Keep temperatures low with up to 260 W of heat dissipation capacity to ensure your system runs at peak performance without issues.

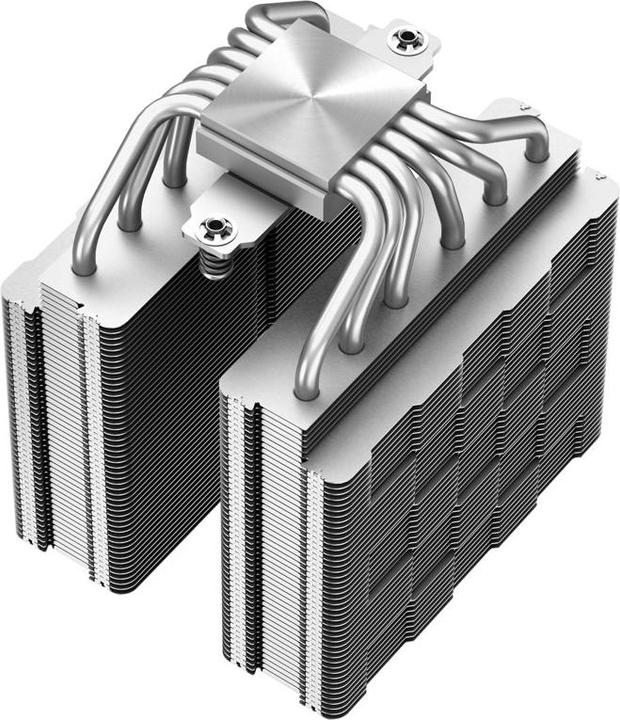

Balanced Bidirectional Heatpipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heatpipe achieves the best heat dissipation performance, regardless of whether the cooler is installed in a vertical or horizontal case. This perfect ratio allows for a highly efficient phase change in the heatpipe, resulting in lower thermal resistance across a wide TDP range.

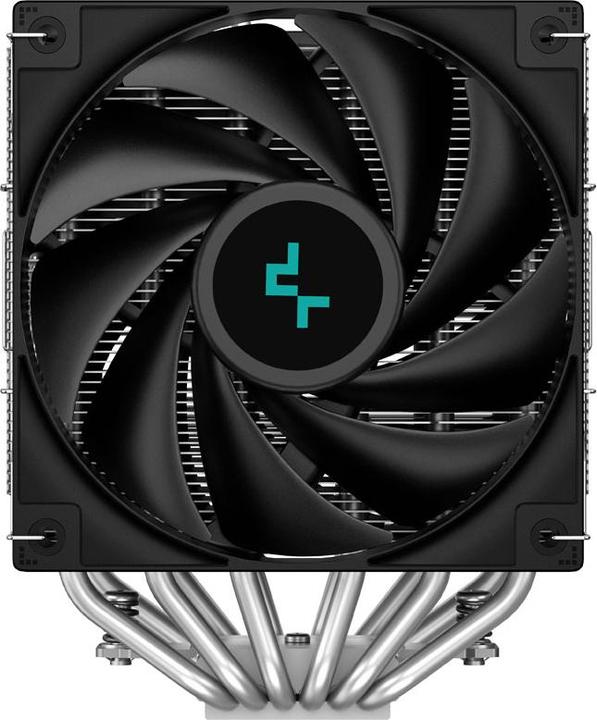

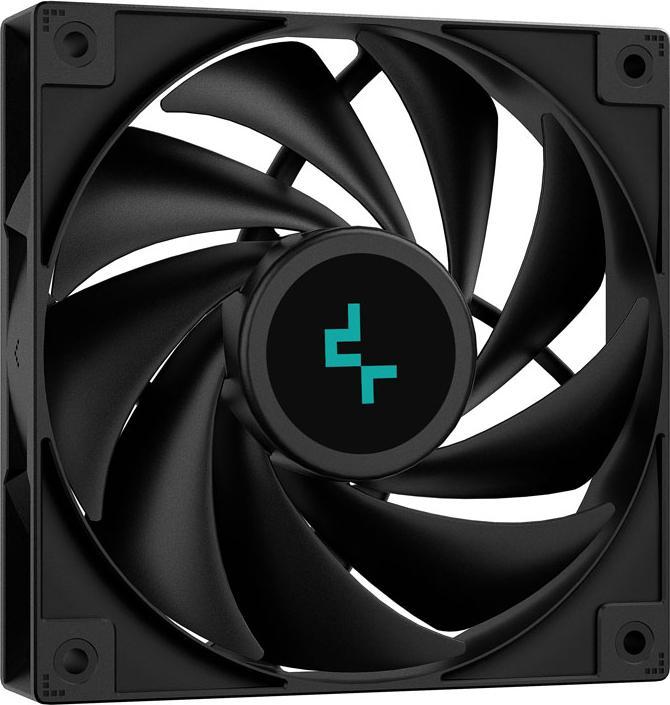

High-Efficiency Fans
Find your optimal balance with automatic PWM support for full power under load and quiet efficiency at idle. 300-1850 RPM ≤ 29.4 dB(A) 67.88 CFM.

Matrix Fin Array

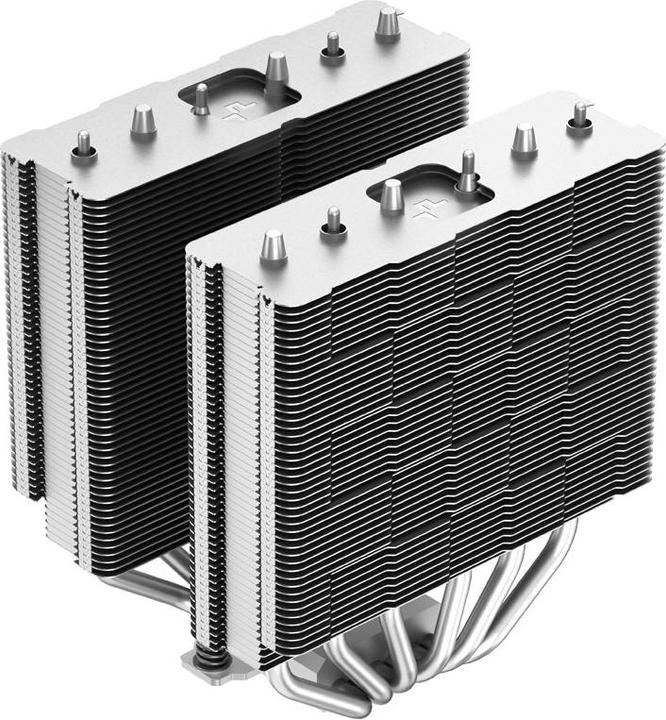

High-quality aluminum fins on the heatsink are densely stacked for ideal heat dissipation and feature a unique "checkerboard" design.

Simple and Secure
The included metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that ensures excellent contact pressure.

Key specifications

Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1200LGA 1700LGA 2011LGA 2011-v3LGA 2066
Diameter
120 mm
Number of fans
2x
Max. TDP
260 W
Airflow
115.33 m³/h
power connector
4-pin PWM
Height (with fan)
157 mm

General information

Item number
22930077
Manufacturer
Deepcool
Category
CPU coolers
Manufacturer no.
R-AG620-BKNNMN-G-1
Release date
3.11.2022
External links

Colour

Colour
Silver
Exact colour description
AluminiumBlack

Cooler properties

CPU cooler design
Dual Tower
Fan type
Standard
Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1200LGA 1700LGA 2011LGA 2011-v3LGA 2066
Cooler mounting
Screw
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
6
Diameter heat pipe
6 mm
Number of cooling fins
127
Materials radiator core
Copper
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm

Fan properties

Number of fans
2x
Maximum mountable fan
2
Max. Speed
1850 RPM
Max. TDP
260 W
Airflow
115.33 m³/h
Static pressure
20 Pa
Max. noise level
29.40 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Power consumption
1.68 W
Voltage
12 V

Scope of delivery

Scope of delivery

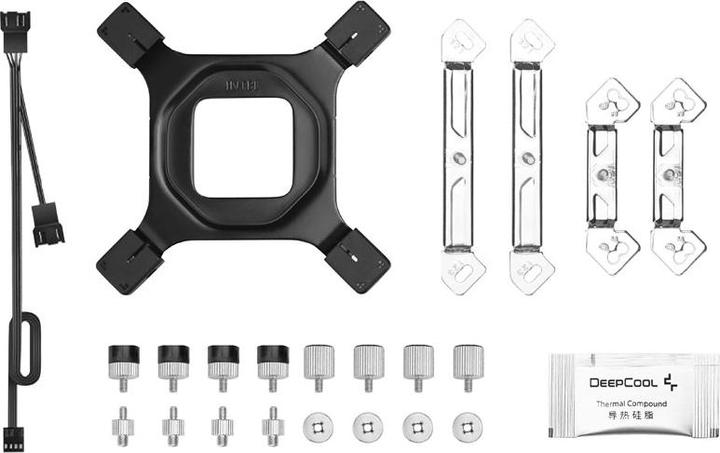

2x 120 mm fanHeat padInstallation kit

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
158.74 kg
Climate contribution
CHF 2.75

Product dimensions

Width (with fan)
136 mm
Length (with fan)
129 mm
Height (with fan)
157 mm
Weight
1300 g

Package dimensions

Length
18 cm
Width
17.80 cm
Height
22.30 cm
Weight
1.51 kg

30-day right of return
24 Months Warranty (Bring-in)
