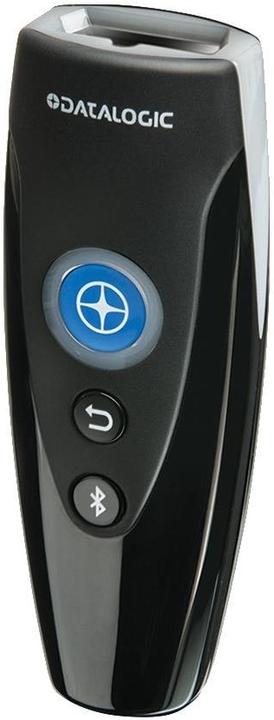

Datalogic Rida DBT6420
1D barcodes, 2D barcodesProduct details
The Datalogic Gryphon DBT6400 is ideally suited for various activities in retail, including traditional and mobile POS, shelf replenishment, and inventory management. Weighing only 85 g and small enough to fit in any pocket, it is the perfect companion. With wireless Bluetooth connectivity, it complements any Bluetooth-enabled mobile device, enhancing its capabilities to reliably capture all common 1D and 2D codes.
The DBT6400 boasts outstanding reading performance when capturing 1D and 2D codes: it can easily read low-contrast, damaged, or poorly printed codes, as well as codes from dimly lit mobile phone displays. Thanks to its batch mode, it can store over 2000 linear codes internally, allowing you to continue working uninterrupted even when there is no Bluetooth connection to your mobile device.
In addition to its convenience and lightweight design, the DBT6400 offers features that make it very user-friendly. Its illumination system is based on soft white light, which is gentle on the user's eyes. The 4-point aiming system makes targeting the code to be scanned easier. You will be notified of successful readings via vibration, audio signal, green spot, or LED display, depending on your preference.
Barcode scanner type | Handheld barcode scanner |
Connections | USB |
Signal transmission | Bluetooth, Cable, Wireless |
Documents | Technical data sheet.pdf |
Item number | 9468381 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer No. | DBT6420-BK-BTK1 |
Release date | 28.8.2018 |
Colour | Black |
Exact colour description | Black |
Barcode scanner type | Handheld barcode scanner |
Barcode Scanner Version | Scanner USB Kit |
Scanning method | Imagers |
Barcode Scanner Features | Keyboard inscription |
Connections | USB |
Signal transmission | Bluetooth, Cable, Wireless |
Protection type (IP code) | IP50 |
Scanner functions | 1D barcodes, 2D barcodes |
Minimum print contrast | 15% |
Stack codes | All 1D barcodes, All GS1 DataBar linear codes, Aztec Code, Aztec Mesas, British Post, Canadian Post, China Han Xin Code, China Postage, Data matrix, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR code, UPC A/E Composites |
Read angle lengthwise max. | 65° |
Read angle cross max. | 60° |
Image resolution | 752 x 480 pixels |
Display functions | Tiltable |
Wireless transmission | Bluetooth |
Max. range | 25 m |
Frequency | 2400 MHz |
Battery type | Li-ion |
Charging time | 2.50 h |
Capacity | 700 mAh |
Voltage | 5 V |
Country of origin | China |
Scope of delivery | Charging/Transmission Station, Lithium-ion battery, USB cable |
Length | 27.50 mm |
Width | 42.30 mm |
Height | 112.40 mm |
Weight | 85 g |
Length | 25.10 cm |
Width | 14.90 cm |
Height | 8.60 cm |
Weight | 562 g |
