The 1D device is ideal for those who are looking for a handy scanner with good performance. The linear imager reads all standard 1D codes and GS1 DataBar linear codes.

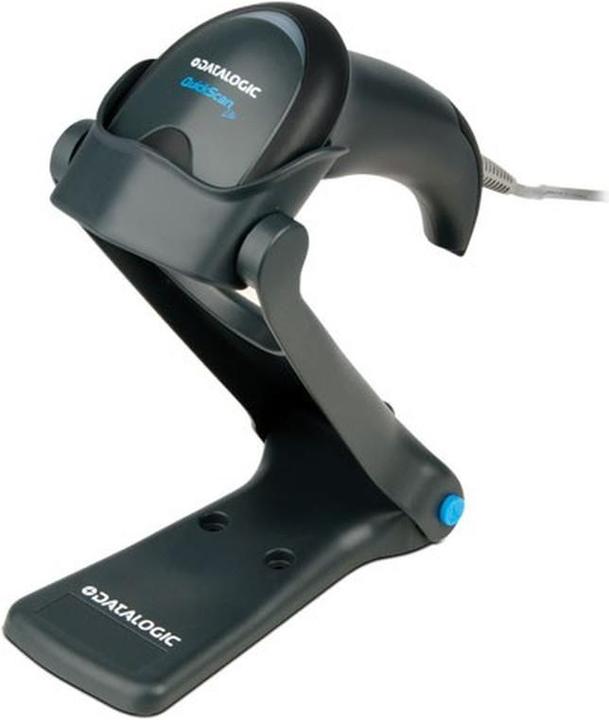

Thanks to the widened, bright scan line, it also reads the wide barcodes common in certain regions, such as those used by manufacturers of electronic parts. In combination with the special foldable stand, it can be used flexibly in retail, banking or light industry as a presentation scanner in addition to the handheld mode. The patented Green Spot reading confirmation, its light weight and its compact housing with a protective and non-slip rubber surface ensure good ergonomic properties. Thus, the QuickScan survives repeated falls from 1.5 m without damage. The IP42 certification ensures protection against splash water and dust. For easy integration, choose between USB and KBW/RS232 interface.
| Scanner type | Hand-held scanner |
| Connections | USB |
| Signal transmission | Cable |
| Documents | |
| Item number | 3483070 |
| Manufacturer | |
| Category | |
| Manufacturer no. | QW2120-BKK1S |
| Release date | 12/16/2014 |
| Sales rank in Category Barcode scanners | |
| External links |
| Colour group | Black |
| Exact colour description | Black |
| Scanner type | Hand-held scanner |
| Barcode Scanner Version | Scanner USB + Stand Kit |
| Scanning method | Imagers |
| Barcode Scanner Features | Keyboard inscription |
| Connections | USB |
| Signal transmission | Cable |
| Protection type (IP code) | IP42 |
| Max. drop height | 1.50 m |
| Scanner functions | 1D barcodes |
| Minimum print contrast | 25 % |
| read indicators | Beeper, Datalogic "Green Spot" read confirmation, Good Read LED |
| Maximum scanning distance | 60 cm |
| Scan performance | 400 Scans/s |
| Stack codes | GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
| Voltage | 5 V |

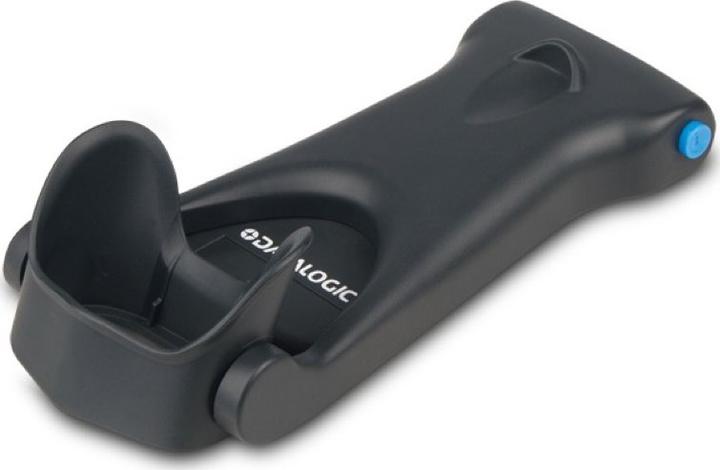

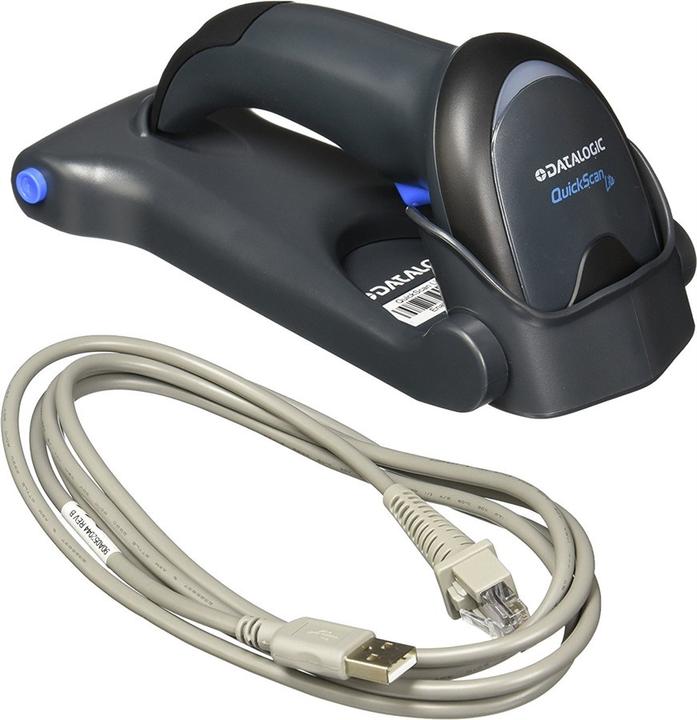

| Scope of delivery | Pedestal, USB cable |
| Length | 170 mm |
| Width | 70 mm |
| Height | 65 mm |
| Weight | 119 g |
| Length | 22.20 cm |
| Width | 10.20 cm |
| Height | 9.50 cm |
| Weight | 530 g |
Specifications may include unverified machine translations.
