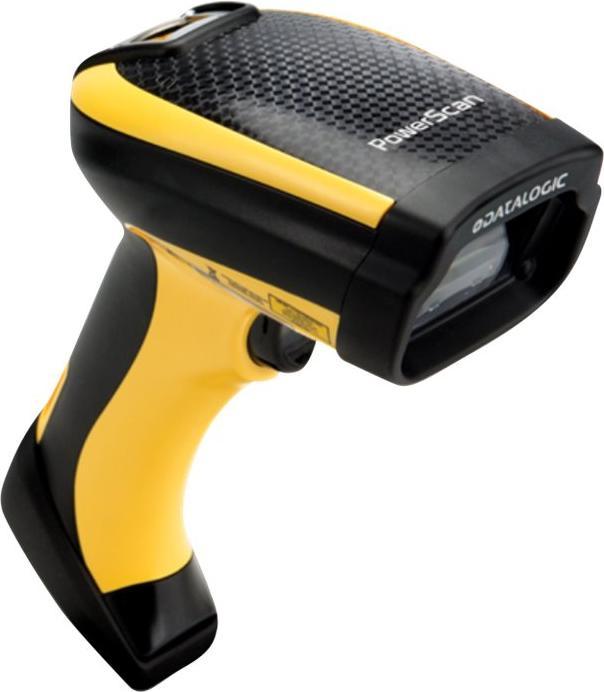

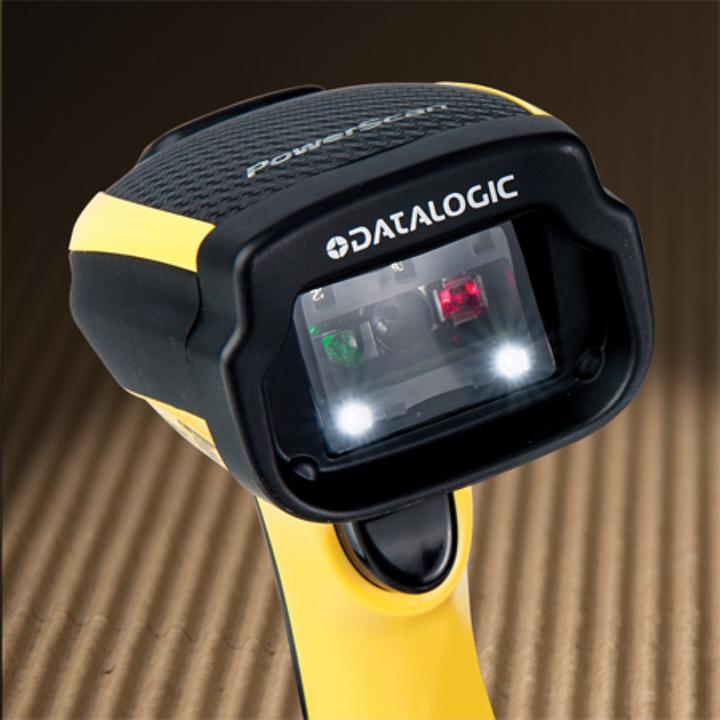

Datalogic PowerScan PM9501-DHP - Barcode Scanner

1D barcodes, 2D barcodes
Currently out of stock
Free shipping starting at 50.–

Product details

The PowerScan PM9500 Area Imager is a rugged, mobile scanner specifically designed for industrial environments. Equipped with the latest generation of the STAR Cordless System, Datalogic's proprietary wireless system, the mobile PowerScan is now even more versatile, user-friendly, and offers a greater range. The PM9500 series is also available in two display variants: 4 configurable keys or a complete 16-key keyboard. This simplifies the interaction between the host and the user, and the bidirectional information exchange ensures more reliable and effective communication. To prevent longer work processes from being disrupted, the PowerScans are equipped with powerful batteries that last over a full work shift—even in scan-intensive applications. The ergonomic grip shape, balance, and intuitive targeting ensure high first-read rates while preventing painful wrist movements. The soft, white light of the PowerScan 9500 Area Imager is comfortable for the human eye and facilitates long and scan-intensive work processes.

Features:

  • Improved depth of field for capturing wide and high-resolution codes thanks to the use of a liquid lens
  • Fast omnidirectional reading
  • Soft, white illumination
  • Versions with display and 4 or 16 keys available
  • Point-to-Point and Multi-Point transmission
  • Networking and seamless roaming
  • Fast 433 MHz and 910 MHz wireless transmission
  • Datalogic’s Motionix motion detection technology
  • Visual and acoustic reading confirmation via Datalogic’s 3GL technology and beeper
  • EASEOFCARE service offerings protect your investment while ensuring maximum productivity and ROI.

Key specifications

Scanner type
Hand-held scanner
Connections
RS-232RS-485USB
Signal transmission
Wireless

General information

Item number
15676490
Manufacturer
Datalogic
Category
Barcode scanners
Manufacturer no.
PM9501-DHP433RB
Release date
16.4.2021

Colour

Colour
BlackYellow
Exact colour description
BlackYellow

Barcode scanner properties

Scanner type
Hand-held scanner
Barcode Scanner Version
Scanner USB Kit
Scanning method
Laser
Connections
RS-232RS-485USB
Signal transmission
Wireless
Protection type (IP code)
IP65
Max. Drop height
2 m

Reading properties

Scanner functions
1D barcodes2D barcodes
Minimum print contrast
15%
Max- Scan distance
110 cm
Stack codes
Aztec CodeChina Han Xin CodeCompositesData matrixGS1 DataBar Expanded StackedGS1 DataBar Stacked OmnidirectionalMaxiCodeMicro QR CodeMicroPDF417QR code

Display

Image resolution
132 x 48 pixels
Display functions
Backlight

Wireless transmission

Frequency
433 MHz

Battery properties

Battery type
Li-ion
Battery life
4.50 h
Capacity
3350 mAh
Voltage
10 V

Scope of delivery

Scope of delivery
Datalogic AladdinOPOS/JavaPOS Drivers

Product dimensions

Length
110 mm
Width
110 mm
Height
212 mm
Weight
440 g

Package dimensions

Length
25.60 cm
Width
13.10 cm
Height
9.60 cm
Weight
576 g
