DAP-Audio Compact 8.1

• 8 combined mic/line inputs
• EQ with mid sweep
• Phantom power
• Selectable high-pass filter

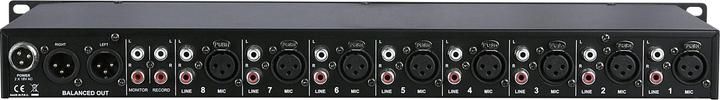

The Compact 8.1 is a high-quality 1U microphone-line mixing console designed for 19-inch racks. It stands out from other compact mixers with several smart features. All inputs are suitable for both microphones and line-level signals. They are equipped with a high-pass filter and a phantom power selection switch. The mixer has a balanced master output, a record output, and a monitor output. The monitor output can also be used as an independent additional output for a second area or another zone. The main EQ features a mid-frequency sweep, allowing you to eliminate the feedback frequency of your system when using the Compact 8.1 as a microphone mixer. All channels are equipped with signal/clip indicators, providing you with a clear overview of your input signals even from a distance. The Compact 8.1 combines user-friendly operation with a high number of inputs and intelligent features in a 1U mixer.
