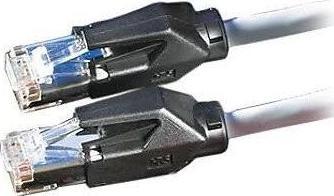

Dätwyler Network cable
PiMF, CAT6, 3 mSupplied by
orderflow.ch CH
Free shipping starting at 50.–
High quality flexible patch cable with pair and overall shielding based on CU 7702 (Cat.7). Assembled on both sides with Cat.6 connectors (Hirose TM21 connector).
Features bend protection and a protective lug for the locking pin. It contains 8 cores of TP copper stranded wire, with pair shielding made of laminated aluminum foil and overall shielding made of tinned copper braid.
The cable sheath is made of flame retardant, low smoke, and halogen-free polyolefin (FRNC/LSOH).
Patch cable type | Copper cable |
Contact assignment | straight |
Documents | |
Item number | 7677878 |
Manufacturer | Dätwyler |
Category | Network cables |
Manufacturer no. | 21.05.0033 |
Release date | 8.2.2018 |
Cable colour | Green |
Material | Halogen-free compound |
Material of the isolation | Copper braiding |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | halogen-free (LSHF) |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Frequency | 0.01 MHz |
Impedance | 100 Ohm |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free, Handle protection |
Cable category | CAT6 |
Contact assignment | straight |
Shield | PiMF |
Number of fibres | 8 x |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 piece |
Diameter | 6 mm |
Length | 3 m |
Width | 10000 mm |
Depth | 10000 mm |
Weight | 384 g |
