Cypress Semiconductor CY4501 CCG1 Development Kit

Ratings
BrandMore from Cypress Semiconductor
Currently out of stock
Free shipping starting at 50.–

Product details

Interface Function: USB-C
Kit Classification: Development Kit
Kit Name: CCG1

The CY4501 CCG1 Development Kit from Cypress Semiconductor is based on the CCG1 USB controller family with a Type-C connector (CYPD11xx). The kit is designed for the development of USB host and client systems that include a Type-C connector, as well as for EMCA cables. For USB Power Delivery (PD), the CCG1 host and client boards included in this kit can be configured as Downstream Facing Port (DFP), Upstream Facing Port (UFP), or Dual Role Port (DRP).

The CCG1 host board is used to emulate a Type-C USB port that would be present on a USB host, such as a tablet or laptop. The CCG1 client board is used to emulate a Type-C USB port that would be present on a USB peripheral device, such as a monitor or docking station. The CCG1 EMCA board is used to emulate a smart cable with an integrated Type-C controller at both ends.

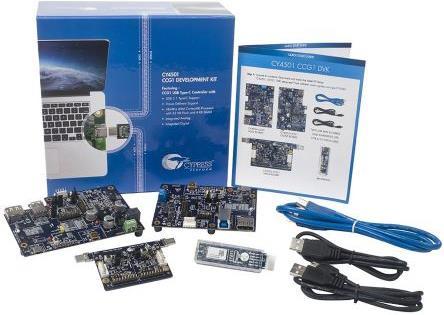

Kit Contents:

  • CCG1 Client Board
  • CCG1 Host Board
  • CCG1 EMCA Board (Electronically Marked Cable Assembly)
  • SuperSpeed USB Cable Type A to Type B
  • Two USB 2.0 Cables Type A to Mini-B
  • Quick Start Overview and Related Documentation.

Key specifications

Development board type
Kit

General information

Item number
10098832
Manufacturer
Cypress Semiconductor
Category
Single board computer kits
Manufacturer no.
CY4501
Release date
13.11.2018

Development board properties

Development board type
Kit
