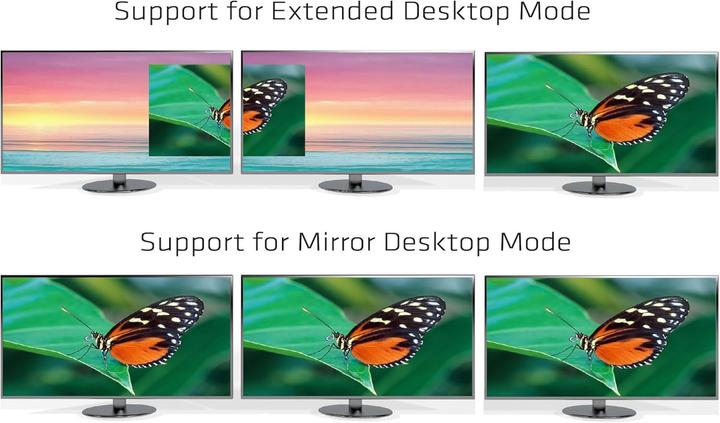

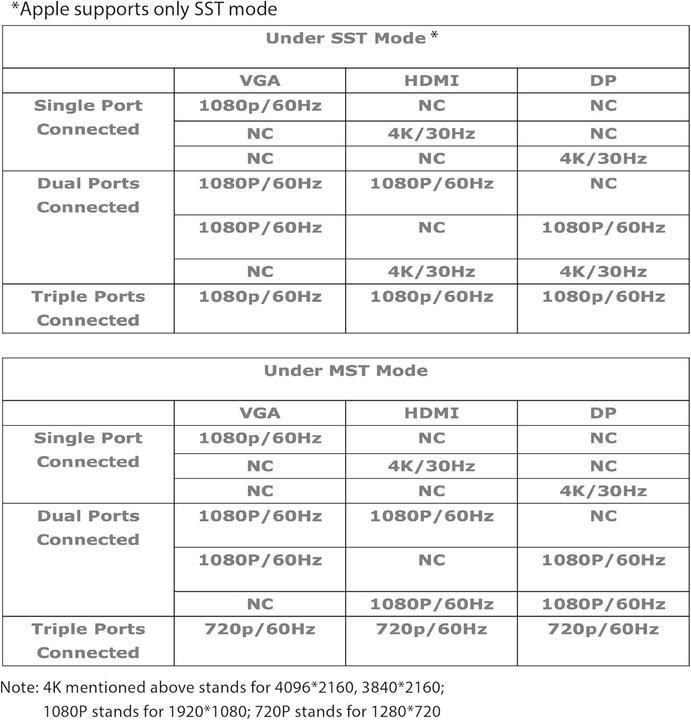

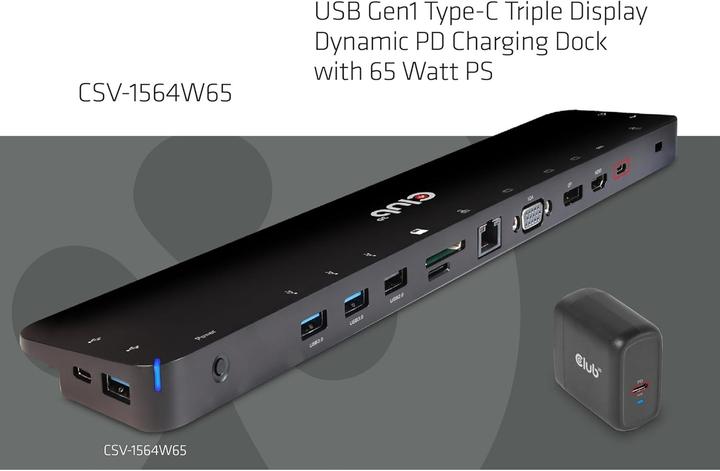

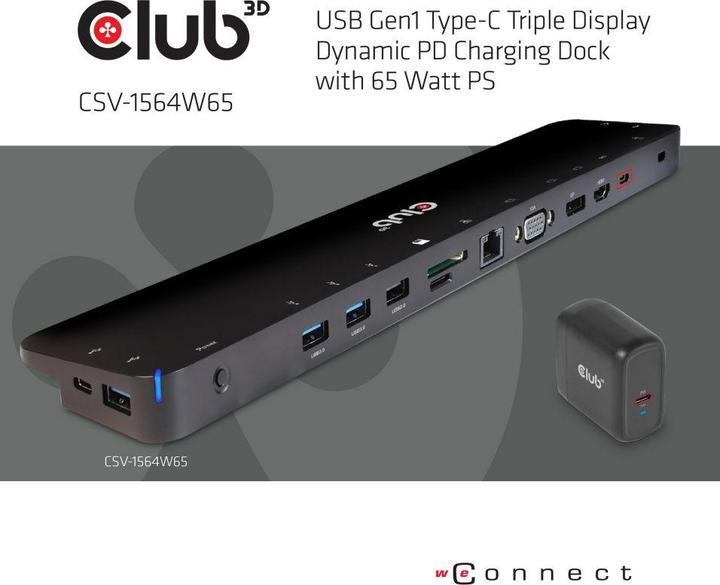

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Dock with charging function, including a 65-watt power adapter, is a versatile solution that combines video, data, power, Ethernet, and audio, specifically designed for people who are frequently on the go. The three different video ports (HDMI, DisplayPort, VGA) allow you to use three different images or videos on three different displays simultaneously in MST mode.

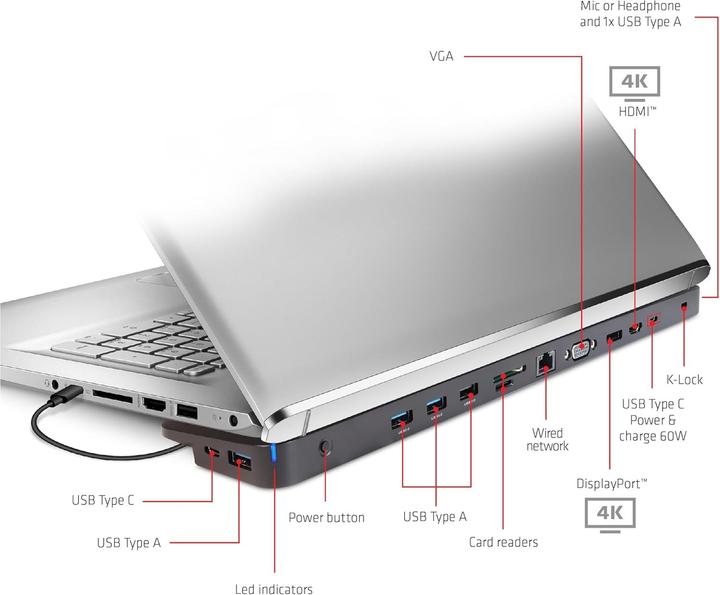

The USB Type-A ports and the USB Type-C data port enable the connection of multiple USB devices to the host. The USB Type-C charging port provides power for this docking station and can simultaneously charge the host PC when connected to a PD charger. A special notebook power supply is not necessary, allowing the user to travel with less weight. The Micro SD and SD/MMC ports enable reading information from the memory card via the host.
Through the 3.5 mm audio jack, music can be played from the host via a headset. Additionally, the host can be connected to fast Ethernet through the Gigabit Ethernet port. All hosts equipped with DP Alt Mode are supported (PC, laptop, smartphone, etc.).
Dynamic power detection and distribution: The product no longer operates with a fixed power output from the external PD power supply but instead uses only the actual power consumed, allowing the PC to be dynamically charged with more power. For video signals, the source device must support DisplayPort Alt Mode.
Type | Docking stations |
Operating system compatibility | Mac OS, Windows 10 Home |
Main connection | Docking port (proprietary) |
Exact USB ports | USB-A 2.0 (2x), USB-C 3.2 Gen 1 (2x) |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Item number | 17267897 |
Manufacturer | Club 3D |
Category | Docking stations + USB hubs |
Manufacturer no. | CSV-1564W65 |
Release date | 31.5.2022 |
May include power adapter | No |
Colour | Black |
Type | Docking stations |
Number of ports | 1 portion |
Max. connected monitors | 3x |
Equipment + functions | Notebook charging function |
Compatible brands | Universal |
Operating system compatibility | Mac OS, Windows 10 Home |
Main connection | Docking port (proprietary) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-C 3.2 Gen 1 (2x) |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Max. port speed | 1000 Mbit/s |

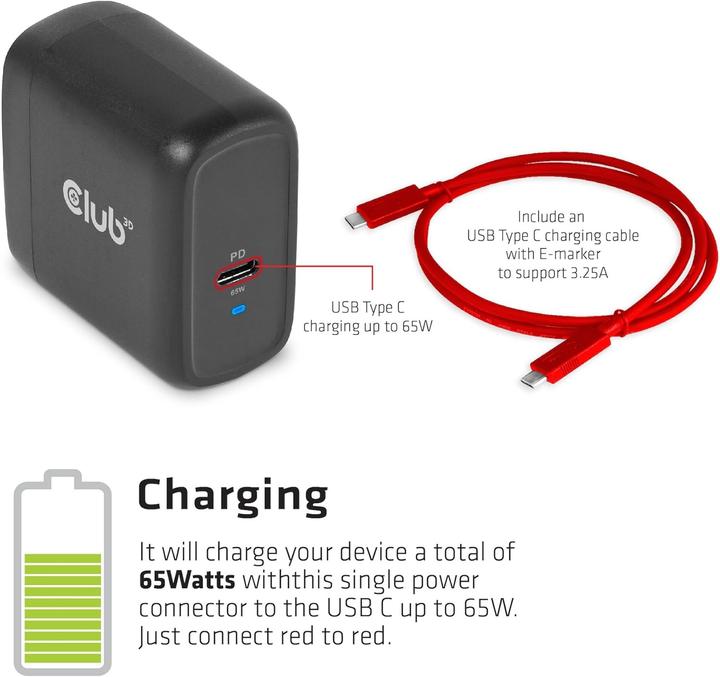

Charging power | 65 W |
Country of origin | China |
CO₂ emissions | 59.61 kg |
Climate contribution | CHF 1.42 |
Scope of delivery | 2x USB Type-C cable, Battery charger, Docking station, Verb |
Width | 7.50 cm |
Height | 2 cm |
Weight | 616 g |
Length | 37.40 cm |
Width | 11.30 cm |
Height | 7.60 cm |
Weight | 554 g |
