DataView® software is an indispensable tool for configuring and starting measurements, displaying readings in real time, exporting data, and creating standard or custom test reports.

Data View® is a universal software platform that can be used with most Chauvin Arnoux products:
QualiStar series power system analyzers: C.A 8331, C.A 8333, C.A 8336, C.A 8435
Power analyzers: C.A 8220 C.A 8230
Power and energy loggers: PEL102 PEL103
Ground testers: C.A 6470N, C.A 6471, C.A 6472
Insulation testers: C.A 6543, C.A 6547, C.A 6549, C.A 6550, C.A 6555
Multimeter clamps: F407, F607
Data loggers of the SIMPLE LOGGER II series
Earthing tester: C.A 6417
Installation tester: C.A 6116N C.A 6117
Winding ratio tester: DTR8510

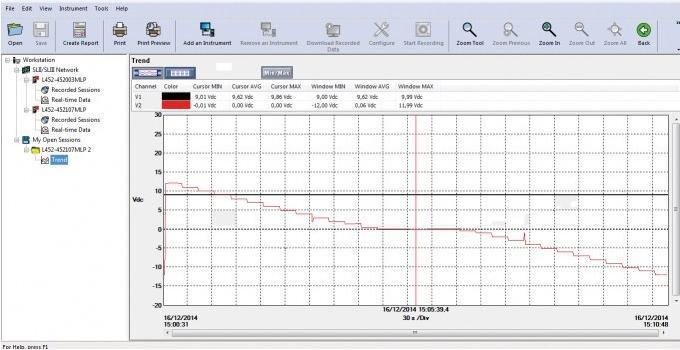

The easy-to-use DataView® software automatically detects the instrument connected to the PC and allows the user to directly access the data stored in the instrument, the configuration and real-time data.DATAView® automatically generates test reports but also allows the creation of customized reports.In addition, the software offers numerous functions for easy operation or more detailed analysis: zoom to analyze specific graph sections display the stored readings of various parameters export the stored data to Excel object linking and embedding (OLE), etc.The instruments are connected to the PC via USB, RS232 or Bluetooth depending on the model.

Operating System Requirement:
Windows XP / Windows Vista and Windows 7/8 (32/64 bit).
256 MB RAM for Windows XP
1 GB RAM for Windows Vista and Windows 7/8 (32 bit)
2GB RAM for Windows Vista and Windows 7/8 (64 bit)
80 MB hard disk space (200 MB recommended).
