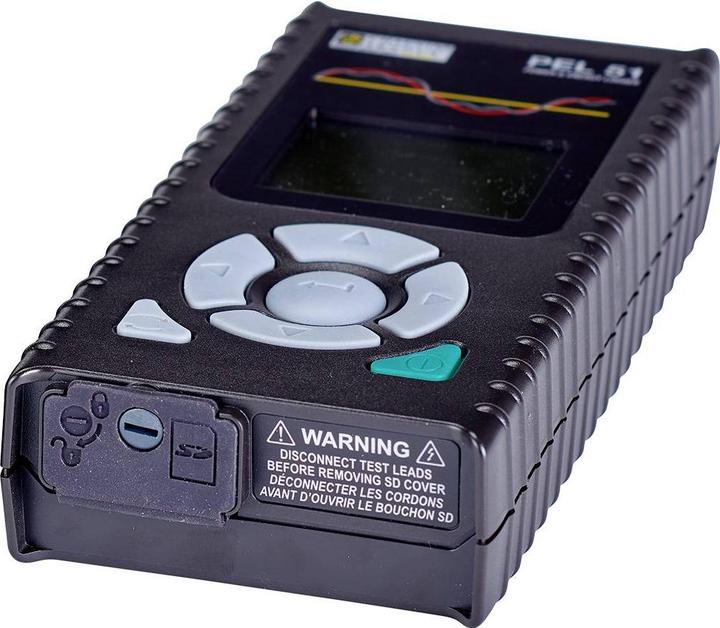

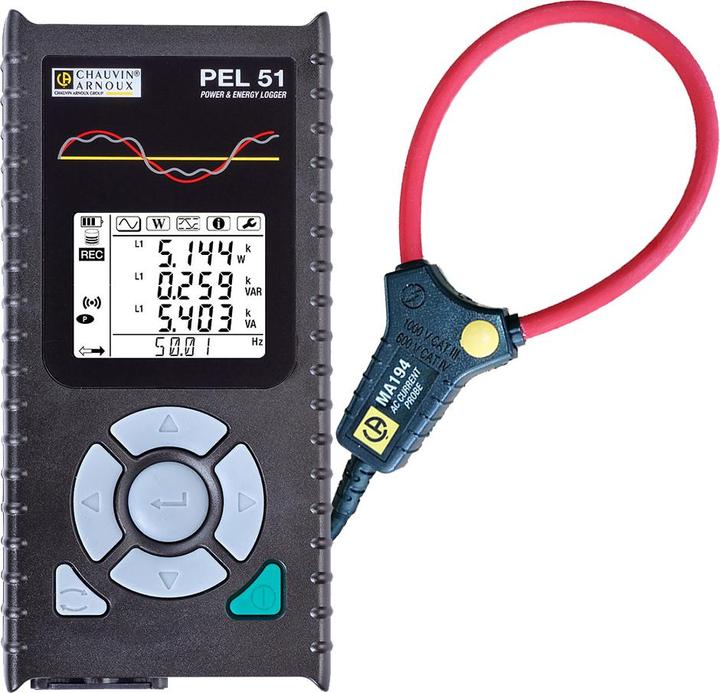

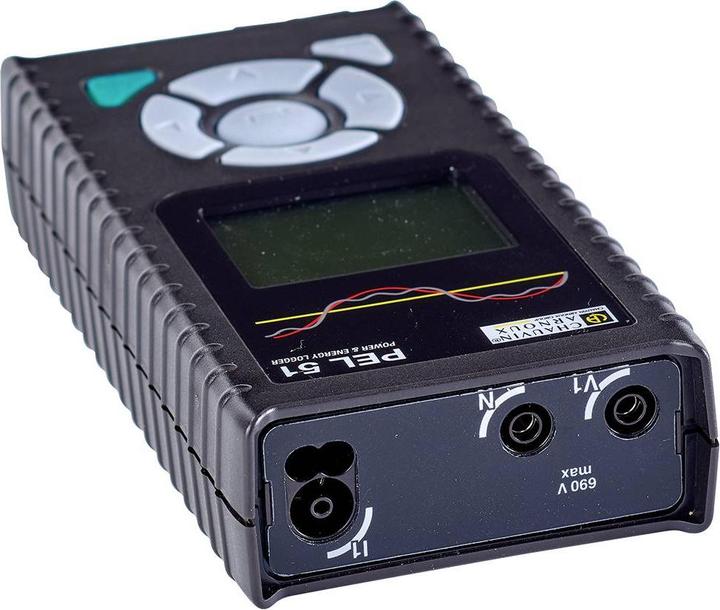

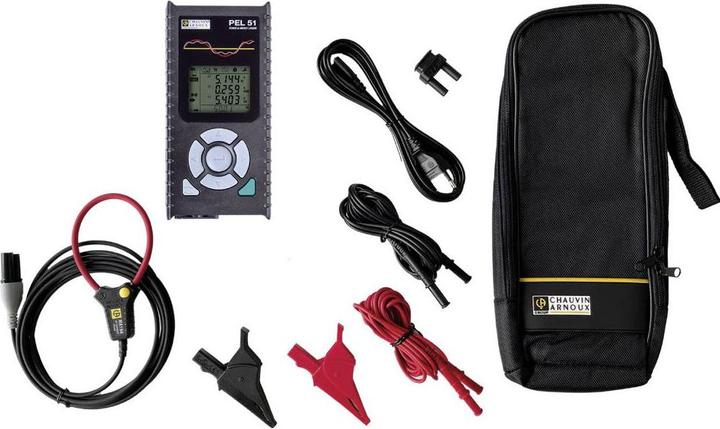

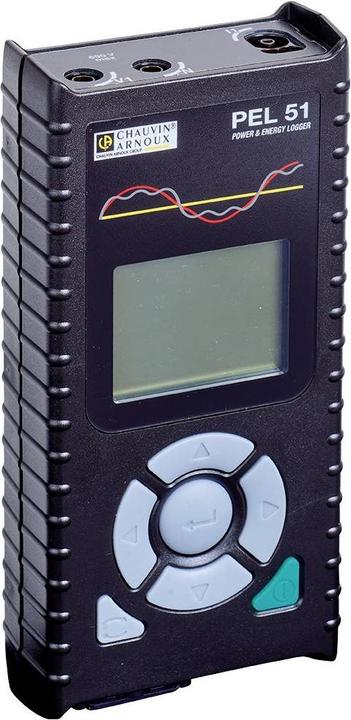

Chauvin Arnoux PEL 51 Mains analyser 1-phase incl. current clamps, with logger function

The PEL51 power and energy recorder offers a simple complete solution for electricians to monitor electricity consumption, whether as part of energy-saving measures or to improve the energy efficiency of buildings.

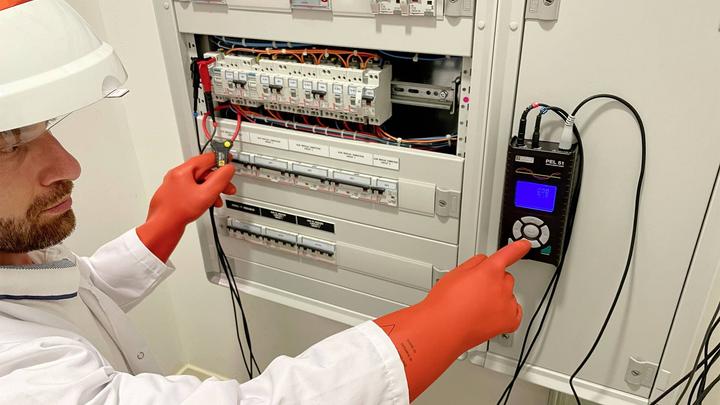

The PEL51 is compact, fits well in the hand, and is user-friendly. Thanks to its magnetic housing, it can be easily placed in small control cabinets. You do not need to turn off the power to put it into operation. Additionally, it powers itself through the phase, allowing for longer measurement campaigns.

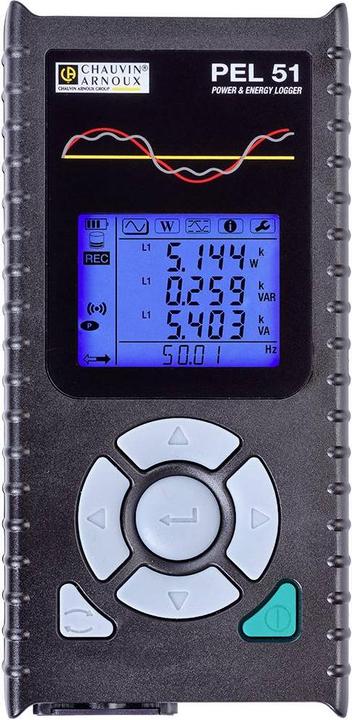

The illuminated LCD display with multiple readings provides excellent readability. The PEL51 features a single-phase channel and performs the following measurements:

• TRMS voltage and current measurement
• Power measurement in W (P, Pf), VA, and var (N, Q1, and D)
• Measurement of PF, DPF, CF, and THD

All data is stored on an SD card.

The PEL51 has several communication modes for real-time monitoring and storing measurement results:

• Wi-Fi communication
• Embedded web server

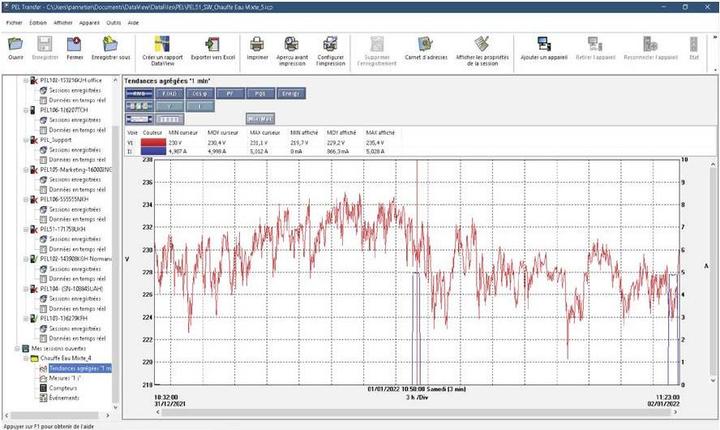

• PEL Transfer® software for data backup, real-time display, and analysis

Software Plus: Integrated software tool for breaking down energy losses and directly converting energy into costs, with adjustable monetary values.

Strengths:

• Target markets: small services and residential
• Electricians for monitoring consumption
• Differentiation of various loads
• More precise thanks to the MINI94 current transformer
• Ergonomics: easy to read, simple, communicative, compact

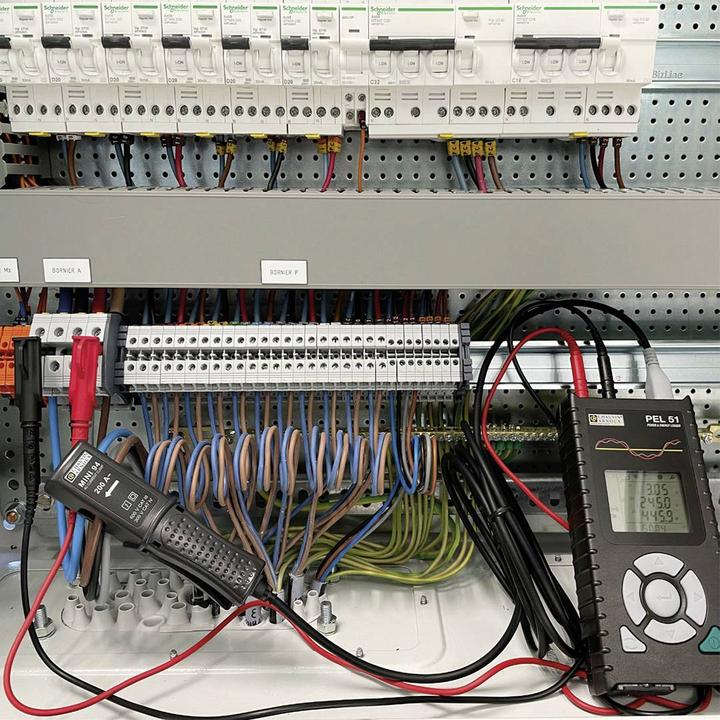

• Connection without power interruption via clamp.
