Chauvin Arnoux C.A 942 Hand-held Oscilloscope (Scope-Meter) 40MHz 2-channel 2 GSa/s 2.5 kpts 8 Bit Hand-held

Chauvin Arnoux Portable Oscilloscope C.A 942

Manufacturer: Chauvin Arnoux
Description: Portable Oscilloscope
Model: C.A 942
Display: Color/digital
Frequency bandwidth: 40 MHz
Number of channels: 2
Minimum input sensitivity: 5 mV
Reference signal shapes: yes
Selectable pulse width triggering: no
Measurement data storage: yes
Interface: yes
Max. AC voltage measurement range: 600 V
Max. DC voltage measurement range: 600 V
Frequency measurement: yes
Temperature measurement: yes
Capacitance measurement: yes
Continuity test/diode test: yes
Power supply: Battery/mains

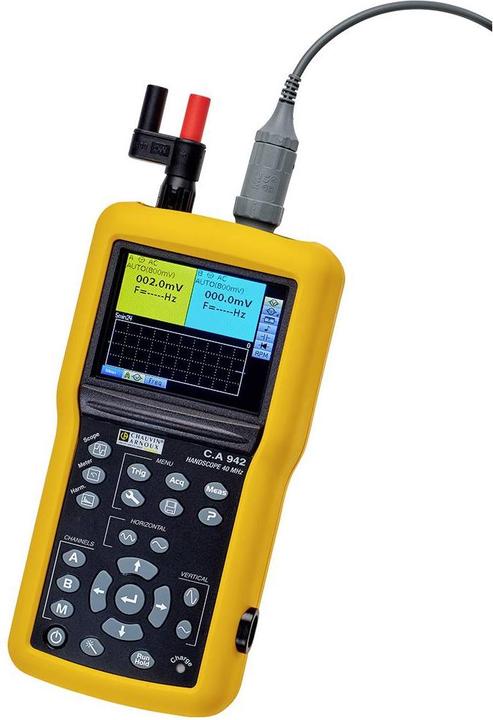

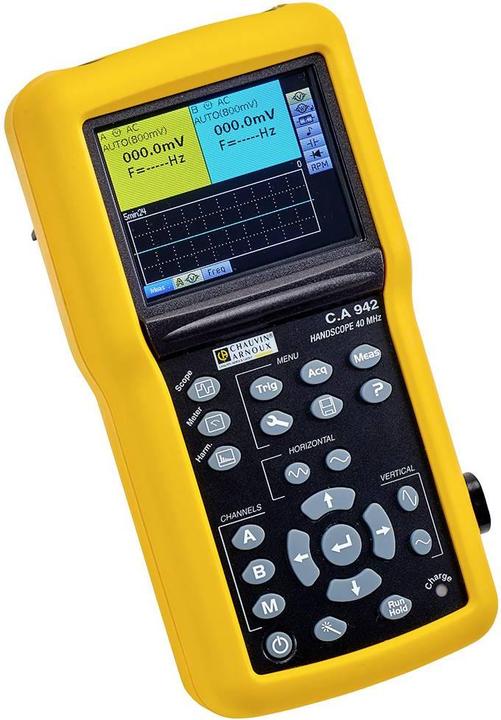

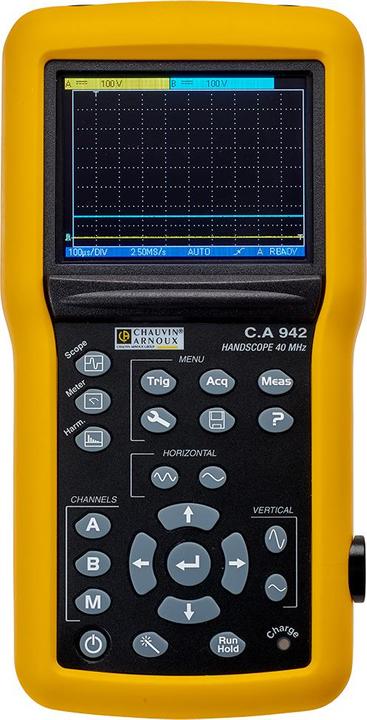

The shock-resistant handheld scope CA 942 with an IP54 protection rating fits perfectly in the hand. The large, LED-lit TFT color display of the user-friendly device provides excellent data representation. Operation is simplified by clear symbols for function selection and an interactive, readily accessible help feature in multiple languages.

The handheld scope combines three devices in one through its 2 isolated channels:

• Oscilloscope up to 40 MHz with 2 fully isolated channels, 600 V CAT III

Bandwidth: 40 MHz, 2 GS/s
5 mV to 200 V/div and 25 ns to 200 s/div

• Multimeter with 8,000 point display and power measurement
• Harmonic analyzer up to rank 31 (with a fundamental frequency of 40 to 450 Hz).

The 2 MB storage capacity allows for the storage of measurement data and, in multimeter mode, the graphical recording of up to 2,700 measurements (over 5 minutes to 1 month). Data transfer is done via optically isolated USB with the SCPI protocol. This enables remote configuration of the device using the SX-METRO software. The product has been developed to optimize the environmental balance according to strict ecological criteria.
