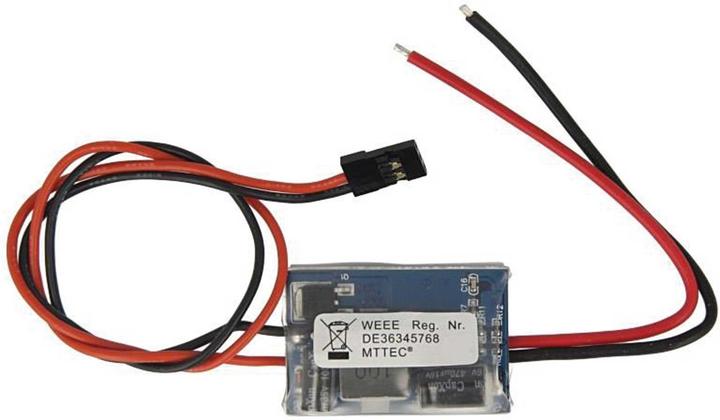

Chargery super lv s-bec v1.1 - 10a, 2-6s lipo

Chargery Super LV BEC 10A - Receiver power supply for 2S-6S LiPo batteries. Version 1.1 now features 10V overvoltage protection at the output. The Chargery Super LV BEC is a very powerful BEC that comes with interesting safety features. It provides a continuous current of up to 10A and can be used with 2-6S configurations. The Chargery Super LV BEC operates with high efficiency and is designed for safe use with all proven 2.4 GHz RC receivers as well as modern servos. It combines safety with a constant power supply for your RC model, eliminating the need for an external receiver battery. With this, the Chargery Super LV BEC enhances the power-to-weight ratio of your RC model. The Chargery Super LV BEC is perfectly tailored to the needs of current high-current digital servos.

Features:
High efficiency at 5.4V, 5.9V, 7.4V, and 8.4V output voltages. Wide input voltage range from 6V to 25V (2 to 6 LiPo batteries). The minimum input voltage at 8.4V output voltage is 10V. The maximum continuous current is 10 Amperes. With adequate ventilation, 15A can be achieved temporarily. 10A continuous and 15A peak at input voltage below 12V, 8A continuous and 12A peak at input voltage 12 - 25V. Built-in overcurrent and overtemperature protection. Short-circuit protection at the output. Overvoltage protection at the output. If the output voltage exceeds 10V, the BEC shuts down within 0.1µs to protect the remaining electronics. An LED status indicator provides visual feedback. Small size: L43*W27*H10mm. Weight: 23g with cable.
