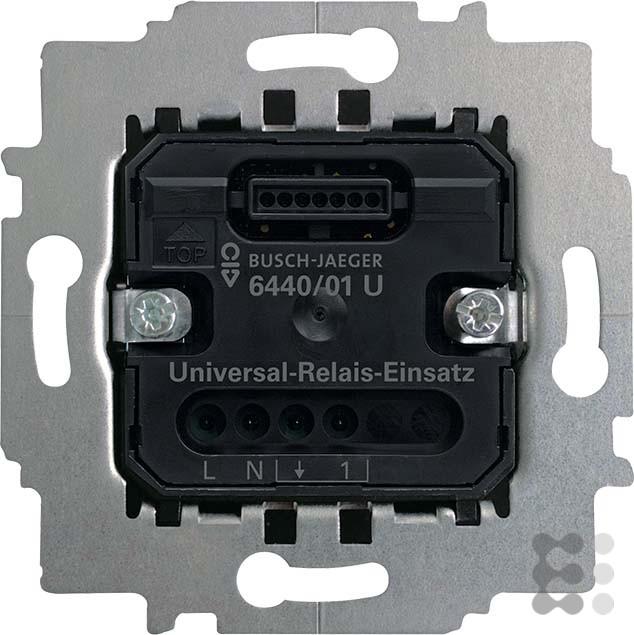

Busch-Jaeger Universal relay insert 6440/01 U

Busch-Jaeger universal relay insert 6440/01 U

Manufacturer: Busch-Jaeger
Designation: Universal relay insert
Type: 6440/01 U
Composition: Basic element
Design: Relay
Load type: Universal and LED retrofit
Extension input: Yes
Light value memory: No
Usable with button: No
Usable with motion detector: Yes
Usable with presence detector: Yes
Usable with timer: No
Can be used with radio button: No
Can be used with IR button: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Other
Surface protection: Untreated
Surface finish: Glossy
Colour: Black
Rated voltage: 230 V
Frequency: 50-60 Hz
Rated current: 10 A
Switching capacity: 0-2300 W
Number of channels: 1
Min. depth of device box: 40 mm
Depth of device box: 40 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Further details:
3-wire connection technology (neutral conductor required). For switching lighting systems. For Busch-Comfort switch operating element 6815-...-101. For Busch-Presence detector sensors 6813--102. Can be combined with universal slave insert 6440/05 U. Operation in alternating circuits possible via push-button extension unit. Operation also possible via conventional push-buttons (2020 US, 2021/6 UK). Only in conjunction with commercially available flush-mounted device boxes according to DIN 49073.
