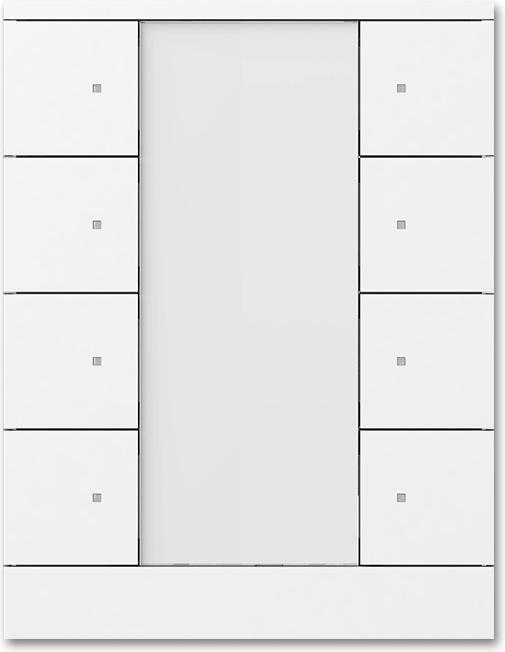

Busch-Jaeger Busch-Jäger operating element 8-fold Busch-Tenton® SB/U8.0.11-84

Busch-Jaeger Control Element 8-fold SB/U8.0.11-84

Manufacturer: Busch-Jaeger
Description: 8-fold control element in studio white
Type: SB/U8.0.11-84
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With Bus Coupling: no
Number of Control Points: 8
Number of Buttons: 8
With LED Display: yes
With Labeling Field: yes
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: glossy
Color: studio white
RAL Number (similar): 9016
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 30.7 mm

Additional Details: With integrated KNX bus coupler. Includes labeling field. Supports KNX functions through innovative color concept (yellow=lighting, blue=shutter, orange=RTR, magenta=scenes, and white=neutral/no function assignment) or standard lighting red/green. Button functions: switching, dimming, shutter control, value sending, light scenes, among others. With integrated temperature sensor. Number of Bus Participants: 1.
