Busch-Jaeger BJ UP junction box UAE 0215 8 8 pole - accessories network
Free shipping starting at 50.–

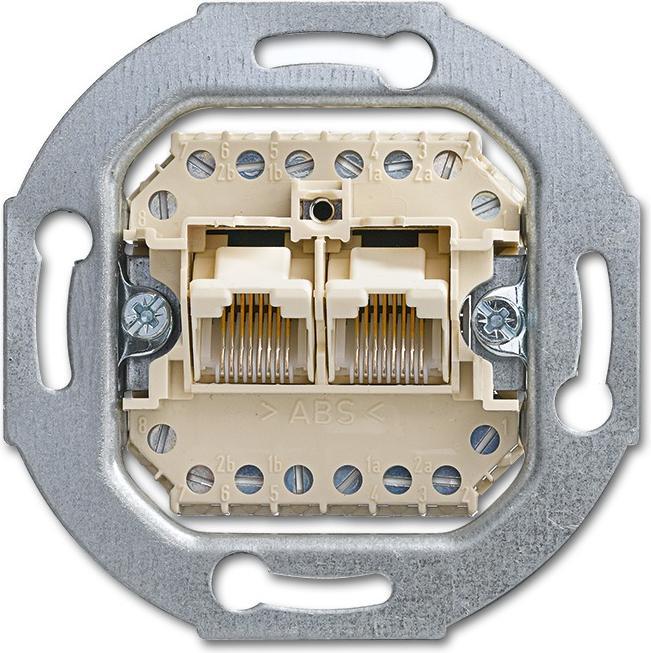

Busch-Jaeger UAE Socket Insert 0215
Manufacturer: Busch-Jaeger
Designation: UAE Socket Insert 8/8-pole
Type: 0215
Composition: Basic element
Usage: Other
Mounting ring: No
With dust protection: No
With hinged cover: No
Outlet orientation: Angled
With printing: No
Halogen-free: No
Antibacterial treatment: No
Color: White
RAL number (similar): 9010
Mounting type: Claw/screw mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20

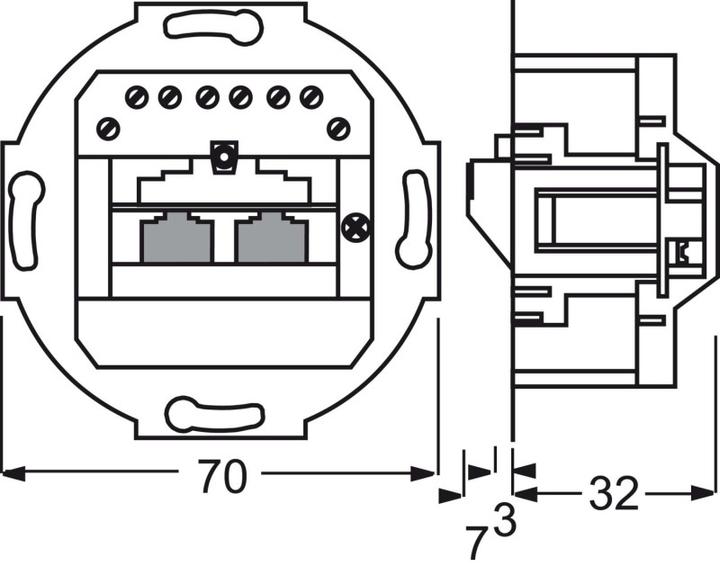

Device width: 71 mm
Device height: 71 mm
Device depth: 29 mm
Min. depth of device box: 25 mm
Busch-Jaeger UAE Socket Insert 0215: Additional details
With angled outlet. For 8-pole connectors, RJ11/12, RJ45, ISDN-capable, Cat. 3. Design according to IEC 60 603-7-2:2007. Screw contacts. With spreader. Compatible with central plate 1803-02-xxx.
EAN: 4011395796306.
Item number | 20021565 |
Manufacturer | Busch-Jaeger |
Category | Telephone accessories |
Manufacturer no. | 2CKA000230A0243 |
Release date | 27.4.2021 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 x |
Length | 29 mm |
Width | 71 mm |
Height | 71 mm |
