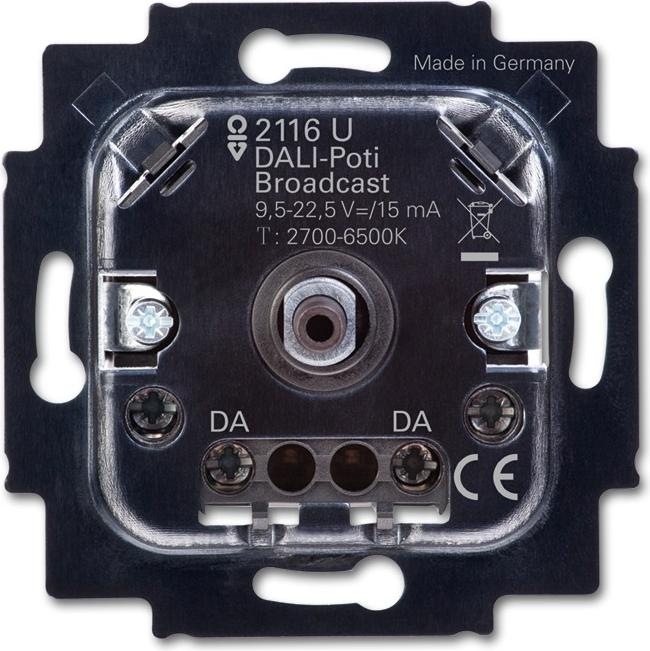

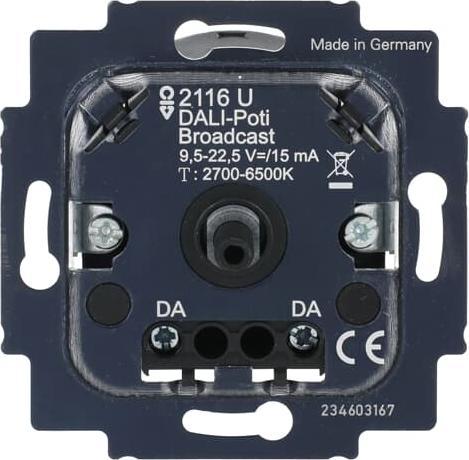

Busch-Jaeger BJ 2116 U DALI potentiometer insert, tunable white, Busch-Dimmer

Busch-Jaeger Dimmer 2116 U

Manufacturer: Busch-Jaeger
Designation: Dimmer UP
Type: 2116 U
Mounting type: Flush-mounted
Control current: 15 mA
Rated voltage: 230 V
Dimming DALI: yes
Manufacturer-specific dimming: yes
Operating method: Rotary/push button
Secondary control input: yes
Light value memory: yes
Usable with switch: no
Usable with motion detector: no
Usable with presence detector: no
Usable with timer: no
Usable with wireless switch: no
Min. depth of device box: 28.5 mm
Usable with IR switch: no
Device width: 71 mm
Device height: 71 mm
Device depth: 48.6 mm
Metallic color: no
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Busch-Jaeger Dimmer 2116 U: additional details
Busch DALI TW dimmer for broadcast operation (central telegram). For switching and controlling up to 64 DALI operating devices according to IEC 62386 (e.g., electronic ballasts and transformers with DALI interface). With rotary control and push-off button. Polarity safe. For changing the color temperature of tunable white lights/bulbs that comply with the DALI standard IEC 62386-209 (Device Type 8). Color temperature adjustable between 2,700 K - 6,500 K. Switch-on brightness and basic brightness adjustable to be power failure safe. With integrated LED orientation light. Color of the orientation light adjustable (18 colors + OFF). Parallel connection of up to 5 devices in passive operation. Max. current consumption: 15 mA. Not suitable for combination with DALI sensors or controllers from other manufacturers. A power supply according to IEC 62386 is required to generate the DALI voltage, e.g., from Tridonic, Philips, Helvar, or BJE Art. No. 2116/11 U. Max. DALI line length: 300 m (with 1.5 - 2.5 mm²). Without central plate. Only install in conjunction with commercially available flush-mounted device boxes according to DIN 49073.
EAN: 4011395211403.
