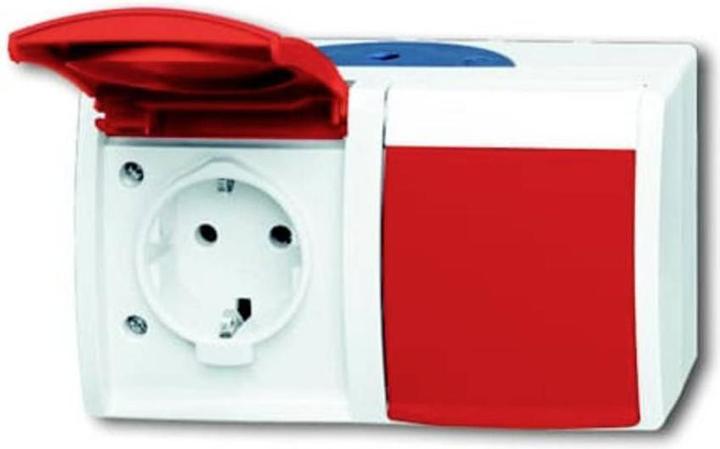

Busch-Jaeger 4011395993323 Socket Red

Busch-Jaeger Schuko Socket 2f. 20/2 EW/DVN-53

Manufacturer: Busch-Jaeger
Designation: Schuko Socket 2f. horizontal
Type: 20/2 EW/DVN-53
Execution: Socket CEE 7/3 (Type F)
Protective contact: Grounding clips
Number of active contacts (round): 2
With signal lamp: no
Number of units: 2
Number of modules (in modular design): 1
Number of phases: 1
Printing/Labeling: IT
Connection type: Terminal block
With hinged cover: no
With increased touch protection: no
Text field/Labeling area: yes
Color: blue
RAL number (similar): 3003
Metallic color: no
Transparent: no
Lockable: no
Ejection mechanism: no
Insulated installation: yes
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: IT
Mounting type: Surface-mounted
Mounting method: Screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Antibacterial treatment: no
With pass-through function: yes
With on/off switch: no
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04

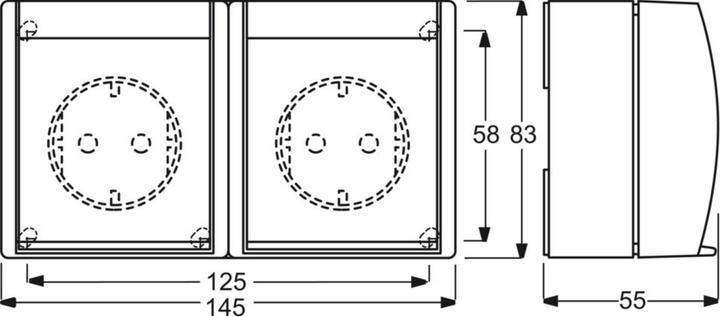

Device width: 145 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device box: 0 mm
Compatible with Apple HomeKit: no
Compatible with Amazon Alexa: no
Compatible with Google Assistant: no
IFTTT support available: no
For harsh conditions (according to VDE): no

Busch-Jaeger Schuko Socket 2f. 20/2 EW/DVN-53: additional details
For connecting electrical consumers. For horizontal mounting. Pre-wired. With red hinged cover, IT (RAL 3003). Labeling field 57.8 x 9.8 mm. Continuous colored marking (hinged cover and base).
