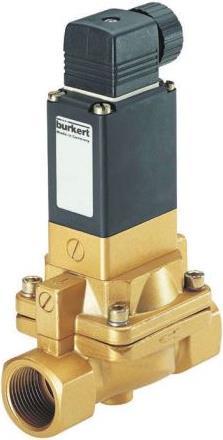

Bürkert 2/2 way solenoid valve 230Vac, G3/4

Supply voltage: 230 VAC
Number of connections: 2
Operation: Control
Connection: G3/4, female thread
Connection size: 3/4 inch
Valve position standard: Normally closed
Range of application: Neutral media
Type: 2/2
Valve opening: 20 mm
Body material: Brass
Operating pressure max: 10 bar
Operating temperature range: 0 to +55 °C
Minimum operating temperature: 0 °C
Maximum operating temperature: +55 °C
Thread fitting type: G

Universal two-way solenoid valves, Type 5282. The Burkert Type 5282 solenoid valve is particularly notable for its design, which incorporates fluid separation by installing a diaphragm seal in the pilot valve. This keeps the coil protected from the effects of demanding applications. Features and benefits include less sensitivity to dirty liquids and corrosion resistance due to the separation diaphragm, suitability for neutral gases and liquids, a long-life magnetic system, high reliability, opening and closing times controlled by integral throttling screws, a lockable manual override as standard, NBR sealing material, and an IP65 protection class. This series of Burkert solenoid valves complies with European standards for potable water.
