Supply voltage = 24 V dc
Number of connections = 2
Operation = control
Connection = G1 1/4, internal thread
Connection size = 1-1/4inch
Valve position standard = normally closed
Application = Liquid
Type = 2/2
Valve opening = 25mm
Body material = stainless steel
Operating pressure max = 10 bar
Operating temperature range = 0 → +120 °C
Minimum operating temperature = 0°C
Maximum operating temperature = +120°C
Servo support = Yes

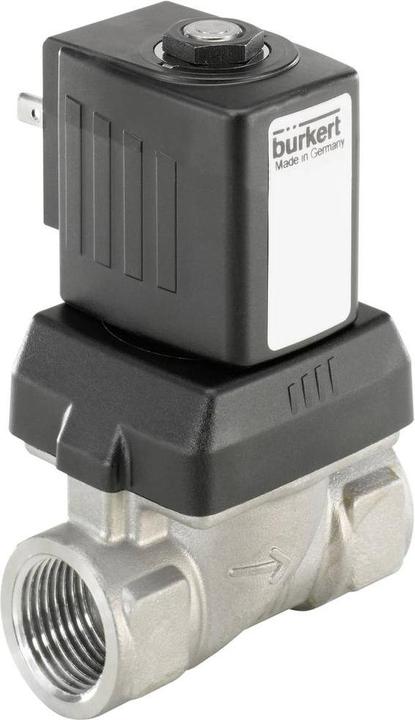

Due to their internal complexity, these valves can only be used with clean, neutral media. Solenoid valves series DS6213-EV, 2/2 stainless steel. New series of 2-way solenoid valves as openers from Burkert. Made of stainless steel and designed for use with water and inert liquids and gases. Soft mechanical coupling between the main spool and pilot armature supports smooth actuation, and the precision machined main body path contributes to quiet, water hammer free operation. Suitable for a variety of applications including compressed air and vacuum systems, heating and air conditioning, water treatment and swimming pool equipment. Compact size to simplify installation where space is limited. 0-10 bar operating pressure 0.1-4 second response time Opens without differential pressure Minimum pressure differential of 0.5 bar for full opening High flow rate Sealed coil IP65 protection.
Electrical engineering accessory type | Housing |
Item number | 10319698 |
Manufacturer | Bürkert |
Category | Electronics supplies + Casing |
Manufacturer no. | 227551 |
Release date | 15.1.2019 |
External links |
Electrical engineering accessory type | Housing |
CO₂-Emission | |
Climate contribution |
Length | 95 mm |
Weight | 2300 g |
