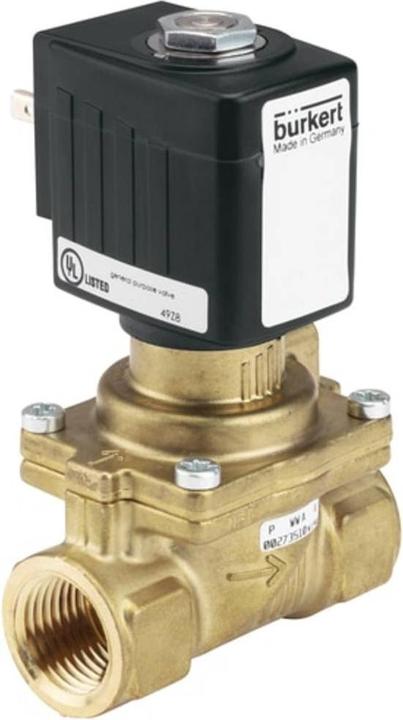

Bürkert 1/2" Sol valve 13mm orifice 24VDC

Supply voltage: 24 V DC
Number of connections: 2
Operation: Solenoid valve/Pneumatics
Connection: G1/2
Connection size: 1/2 inch
Valve position standard: Normally closed
Applications: Compressed air, water
Type: 2/2
Valve opening: 13 mm
Housing material: Brass
Max. operating pressure: 16 bar
Operating temperature range: -10 to +80 °C
Minimum operating temperature: -10 °C
Maximum operating temperature: +80 °C
Max. closing time: 0.1 to 4 s

DS6281-EV 2/2 solenoid valve with brass housing. A 2-pole, pilot-controlled solenoid valve suitable for use with neutral liquids such as compressed air and water. Normally closed and normally open versions are available with nitrile rubber or fluoropolymer seals. Can be used for a variety of applications, including heating and cooling, water treatment, compressed air, and vacuum systems. Response time of 0.1 to 4 seconds (depending on pressure). IP65 protection (with cable protection). Brass housing, low noise, water hammer-free design, compact installation length, NPT/Rc connection, pressure range of 0.2 to 16 bar.
