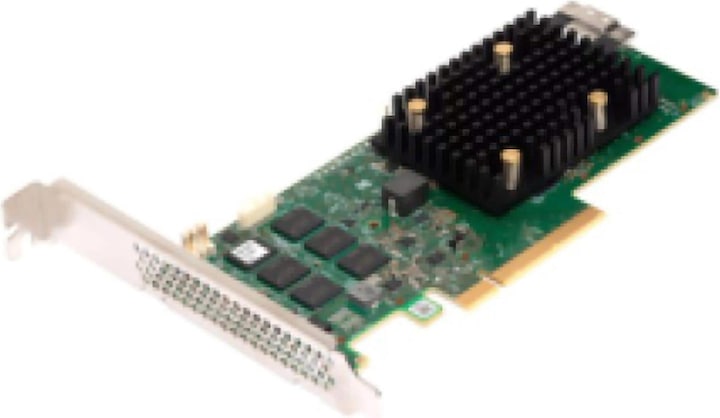

Broadcom HBA 9500-8i Tri-Mode - Storage Controller - 8 Transmitter/Channel - SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x8
Manufacturer: Broadcom
Part No.: 05-50077-03
Model: HBA 9500-8i Tri-Mode
EAN/UPC: 0830343007509
Product Description:
The Broadcom HBA 9500-8i Tri-Mode is a storage controller that supports SATA 6Gb/s, SAS 12Gb/s, and PCIe 4.0 (NVMe) interfaces. It is a plug-in card with a PCIe 4.0 x8 bus type. This device is compatible with hard disks and solid-state drives, featuring 8 channels and a maximum of 1024 storage peripherals.
System Requirements:
Compatible with FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, and VMware vSphere (ESXi).
Dimensions:
15.565 cm x 6.89 cm
Detailed Specifications:
Device Type: Storage controller - plug-in card
Host Bus: PCIe 4.0 x8
Mass Storage Controller.
Internal connection options | mini-SAS (1x) |
Expansion slot | PCI Express x8 (1x) |
Number of connectable hard disks | 1024 x |
Controller type | SAS controller |
Item number | 14619384 |
Manufacturer | Broadcom |
Category | Storage controller |
Manufacturer no. | 05-50077-03 |
Release date | 13.1.2021 |
Sales rank in Category Storage controller | 35 of 529 |
Controller type | SAS controller |
Expansion card form factor | Low profile |
Number of ports | 1 portion |
Number of connectable hard disks | 1024 x |
Expansion slot | PCI Express x8 (1x) |
Internal connection options | mini-SAS (1x) |
Scope of delivery | Low profile slot bracket, Slot bracket |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 15.57 mm |
Width | 155.63 mm |
Length | 23 cm |
Width | 5.50 cm |
Height | 14.50 cm |
Weight | 100 g |
