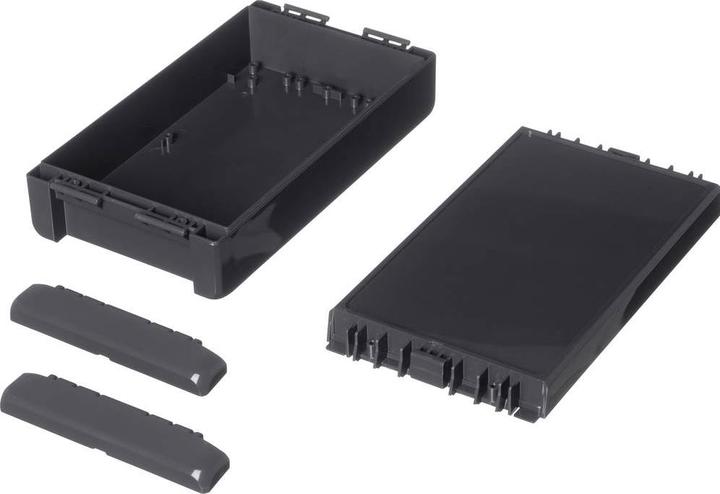

Bopla BOCUBE IP67 enclosure, PC, RAL 7024

Housing material: Polycarbonate
External dimensions: 231 x 125 x 60 mm
External length: 231 mm
External width: 125 mm
External height: 60 mm
IP protection class: IP68
Color: Gray
Cover color: Gray
Series: Bocube
Shielded: No

Bocube IP66/IP67/IP68 polycarbonate housing. The Bocube series from Bopla is a unique, innovative housing with IP66/IP68 certification, ideal for wall-mounted or desktop applications in industrial or office environments. Available in light gray (RAL7035) or graphite gray (RAL7024), this versatile polycarbonate housing comes in 11 sizes and features a clear or opaque cover with a 2 mm deep recess for membrane keypads. The Bocube housing is also equipped with a patented swivel quick-release mechanism that can be opened with a screwdriver and closed by hand. Due to the low number of components, it can be quickly and easily assembled without special tools. Circuit boards and front panels can be mounted in the cover and base.

• Recessed area for membrane keypads
• Large mounting area for connectors, cable glands, and controls
• Available in light gray (RAL7035) or graphite gray (RAL7024)
• Swivel quick-release (housing can also be screwed)
• Polycarbonate (PC) according to UL94-V0 (fire-resistant and self-extinguishing) with integrated sealing profile
• Protection class IP66/IP68
• A cable seal can be mounted to prevent unauthorized insertion (not included).

Bocube is a plastic housing made from a single material, making it particularly recyclable. CE marking.
