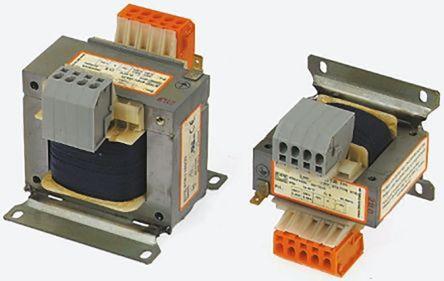

Block Isolation transformer,2500VA 2x0-115Vo/p

Rated primary voltage: 230V AC, 400V AC
Rated secondary voltage: 115V AC
Nominal power: 2.5kVA
Number of outputs: 2
Length: 192mm
Width: 161mm
Depth: 180.5mm
Dimensions: 192 x 161 x 180.5mm
Maximum temperature: +40°C
Weight: 26.3kg

EN61558, VDE05700950. UL approved component for Canada and USA. Control, safety, and isolating transformer. Suitable as safety and control isolating transformers. Double secondary winding for series or parallel connection. Transformers with 63, 100, 160, and 250 VA can also be mounted on 35 mm standard DIN rails. All transformers have 4 mounting holes for panel mounting. Easy installation with 4 mm² cage clamps. Insulation class B. Main connections: 0 V, -15 V, +15 V, 230 V, 400 V. The +15 V and -15 V can be used to offset the primary voltage by 15 V. Small inrush current, high efficiency, low regulation.
