Bitspower Z-Multi 150mm Water Tank

Delivered between Tue, 29.7. and Thu, 7.8.
More than 10 pieces in stock at supplier
free shipping

Product details

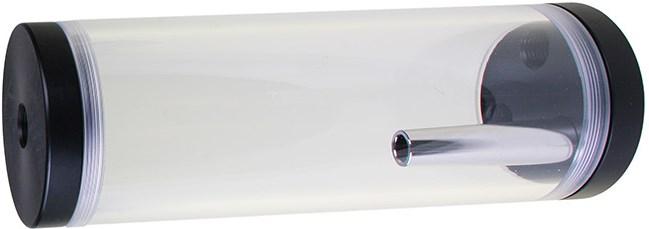

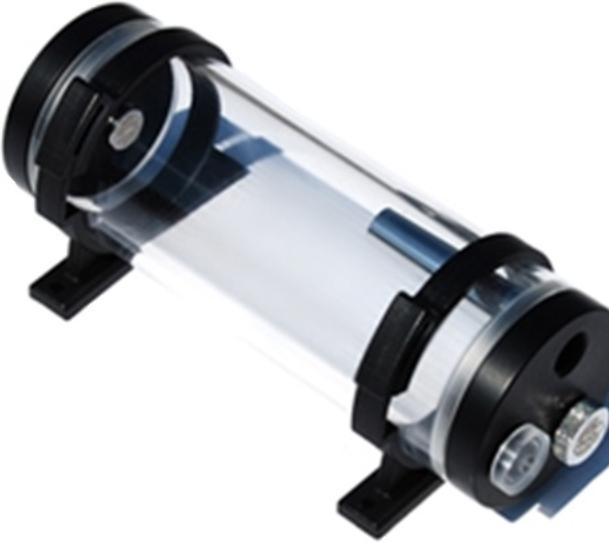

The Z-Multi Water Tank from Bitspower features two screwed POM caps, one with a G1/4" thread and the other with three G1/4" threads. The cap with a G1/4" thread already has an adapter screwed in, which flows into three individual streams towards the reservoir when used as an inlet. In the cap with three threads, one of the threads has a flow pipe installed, which is typically used as an inlet. If the inlet comes from the top, meaning on the opposite side of the flow pipe, the outlet should not be through the flow pipe, as this could allow air to enter the cooling circuit if the water level is below the pipe. The delivery includes two sealing plugs to close the unused openings. One plug is silver shiny, while the other is transparent and has a hole for optional LED lighting. Additionally, two brackets are included to mount the reservoir to the case or elsewhere.

Technical Specifications:
Material: Acrylic, POM
Acrylic tube color: Clear
Dimensions: 170 x 60 mm (H x Ø, +/-3%)
Length without cap: 150 mm
Inner diameter: 50 mm
Threads: 4x G1/4"

Delivery includes:
1x G1/4" silver shiny plug,
1x G1/4" silver shiny Aqua-Pipe I,
1x G1/4" silver shiny Anti-Cyclone Adapter,
1x G1/4" crystal plug I with 5 mm LED hole,
2x tank brackets.

Key specifications

container type
Tubular containers
fill port
G1/4" female thread
connector
G1/4" female thread
Item number
5164321

General information

Manufacturer
Bitspower
Category
Water cooling reservoirs
Manufacturer no.
BP-WTZM150P-BK
Release date
17.6.2015

Compensation tank properties

container type
Tubular containers
connector
G1/4" female thread
Number of connections
4
fill port
G1/4" female thread
LED holes
available (for 5mm LEDs)
Material
Plexiglass

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x anti-cyclone adapter1 x inlet pipe2 x G1/4"" screw plugs2 x mounting clamps

Product dimensions

Length
60 mm
Width
60 mm
Height
170 mm

Package dimensions

Length
23.50 cm
Width
9.40 cm
Height
9 cm
Weight
440 g
