BitFenix Aegis

mATX, Mini-ITX
1Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

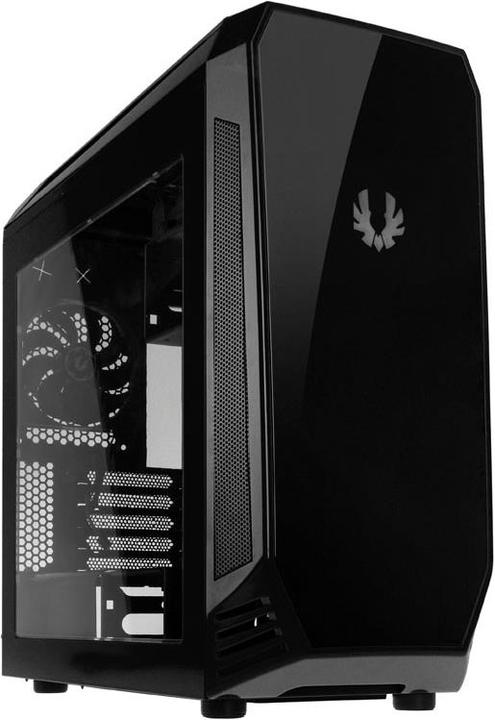

The BitFenix Aegis Mini Tower is a versatile PC case designed for compact builds. With a sleek black design, it not only offers an appealing aesthetic but also thoughtful functionality. The Aegis supports various motherboard formats, including Mini-ITX and Micro-ATX, and provides ample space for powerful graphics cards with a maximum length of 380 mm. The well-thought-out arrangement of fan slots allows for effective cooling, while the option to mount multiple radiators enhances adaptability for water cooling solutions. The internal configuration accommodates up to four 3.5-inch drives, enabling flexible storage expansion. With front ports for USB 3.0 and audio, the Aegis is also user-friendly and practical for everyday use.

  • Supports up to 7 fans for optimal cooling
  • Space for up to 4 internal 3.5" drives
  • Maximum CPU cooler height of 170 mm
  • Compatible with radiators up to 360 mm long
  • Sleek and compact design for space-saving builds.

Key specifications

PC case design
Mini Tower
Number of 3.5" drive slots (internal)
4 x
Max. length graphics card
380 mm
Front connectors
Headphones, Microphone, USB 3.0
Max. height CPU cooler
170 mm
Item number
5070372

General information

Manufacturer
BitFenix
Category
PC case
Manufacturer no.
BFC-AEG-300-KKWL1-RP
Release date
16.6.2015
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal, Plastic
Material
Plastic, Steel

PC case properties

PC case design
Mini Tower
Form factor
Micro ATX (mATX), Mini-ITX
Number of 3.5" drive slots (external)
4 x
Number of 3.5" drive slots (internal)
4 x
"Number of 2.5"" drive slots"
4 x
Number of expansion card slots
5 x
Max. length graphics card
380 mm
Max. height CPU cooler
170 mm
Max length of power supply
220 mm

Connections

Front connectors
Headphones, Microphone, USB 3.0

Cooling properties

Number of fans
1 x
Number of fan slots
7 x
Fan location
Bottom side, Front side, Rear side, Top side
Connectable fans (control)
4
Number of radiator mounts
3
Radiator locations
Front side, Rear side, Top side

Front side

Fans included
Optional fan
Fan mount locations
2x 140mm, 3x 120mm
Radiator mount locations
1x max. 360mm

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm
Radiator mount locations
1x max. 120mm

Bottom side

Fans included
Optional fan
Fan mount locations
1x 120mm, 1x 140mm
Radiator mount locations
No mounting possible

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm, 2x 140mm
Radiator mount locations
1x max. 360mm

Display properties

Display size (inches)
2.80"

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
47 cm
Length
48 cm
Width
20.50 cm
Weight
6.70 kg

Package dimensions

Length
53 cm
Width
51 cm
Height
26 cm
Weight
4.55 kg
