Berrybase Arduino Proto Shield Rev3 (Uno Size)

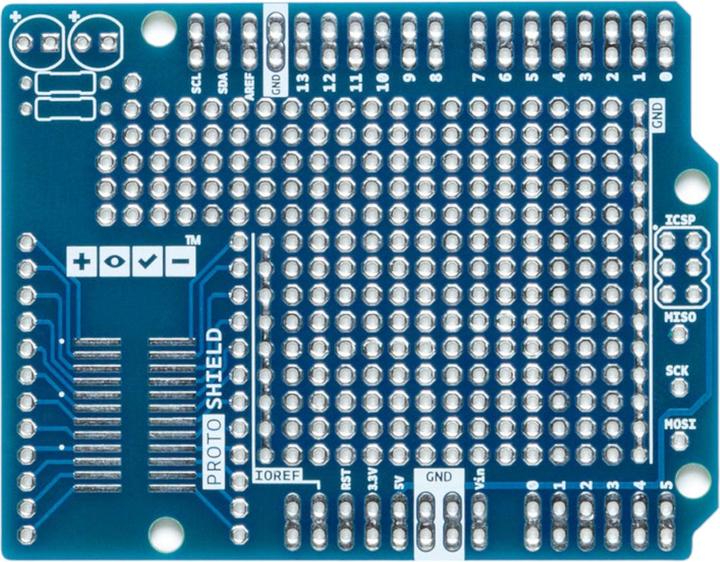

The Proto Shield Rev3 in Uno size makes it easy for you to design custom circuits and solder directly onto it. You can solder both TH and SMD ICs in the prototyping area to test them with your Arduino board. The SMD area is designed for a SOIC IC with a maximum of 24 pins, while the TH area offers plenty of space for the necessary components around your project. You can even stick a mini breadboard (not included) onto the prototyping area for solder-free operations. The prototyping area also includes two power lines (IOREF and GND), two LED pads, and SPI signal output pads for boards that have SPI only on the ICSP header, such as the Arduino Zero.

Features:

• The Proto Shield simplifies the design of custom circuits.

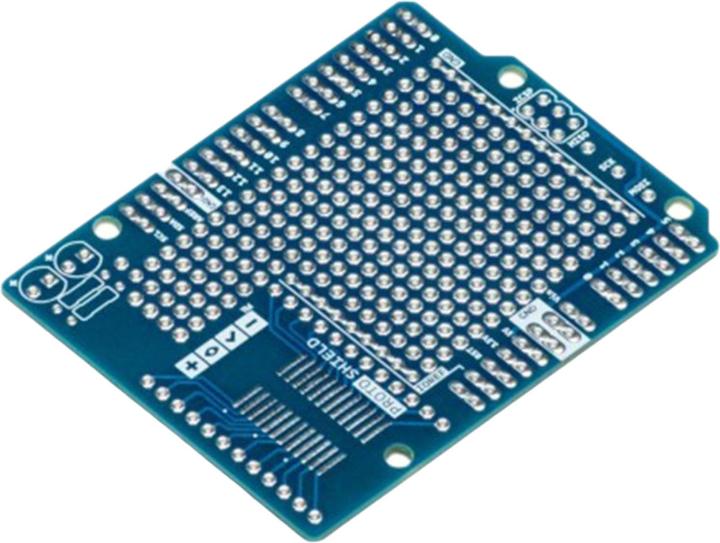

• It provides an SMD area for SOIC ICs with up to 24 pins.
• The TH area has ample space for additional components.
• Two power lines (IOREF and GND) are available.
• There are two LED pads and SPI signal output pads.
• An ICSP connector is included.

Application examples:

• Creating and testing prototypes for electronics projects.
• Integrating additional sensors and actuators into Arduino Uno projects.
• Developing custom circuits for specific applications.
• Building and testing circuit designs without soldering.
• Creating portable projects by mounting on a surface or in a case.

Technical specifications:

• Manufacturer: Arduino
• Manufacturer SKU: TSX00083
• Compliance: REACH
• Dimensions: 54 x 69 x 2 mm
• Weight: 21 g

Delivery includes:

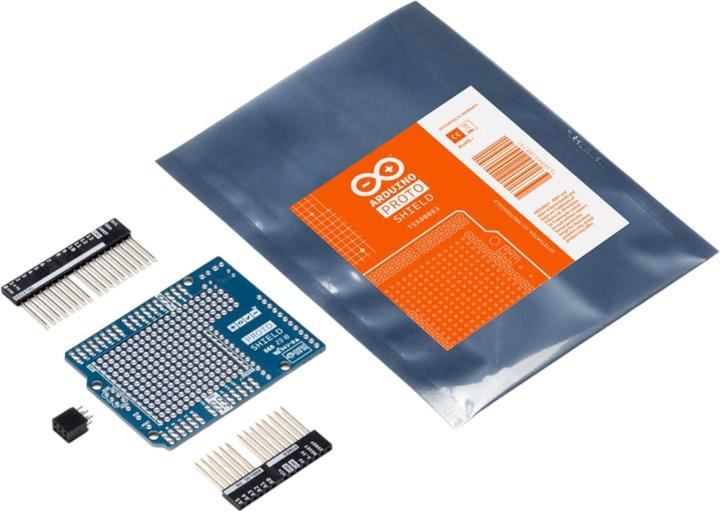

• 1x Proto Shield Rev3 Uno Size PCB
• 1x Header pin set.
