Bernstein 1290000000

Bernstein aluminium enclosure GEH.CA-290

Manufacturer: Bernstein
Designation: Aluminium enclosure RAL7001

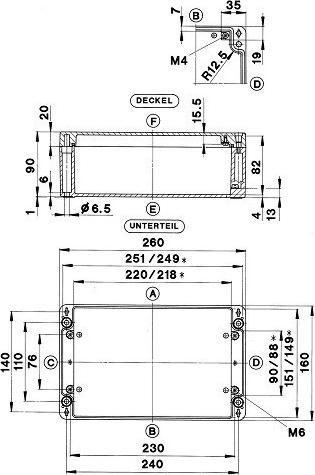

Dimensions: 260 x 160 mm
Type: GEH.CA-290
Mounting type: Other
Type of cover: Closed
Type of door: Without
Transparent cover/door: No
With lock: No
Height: 90 mm
Width: 160 mm
Depth: 260 mm
Material thickness enclosure: 4 mm
Material thickness door/lid: 4 mm
Colour: Grey
RAL number: 7001
Mounting option: Yes
Enclosure material: Aluminium
Surface protection: Powder-coated
With mounting plate: No
Suitable for outdoor use: No
Suitable for lightning protection: No
Protection class (IP): IP67
Protection class (NEMA): Other
Protection class: I
Impact resistance: IK09
Cover with pressure relief: No

Further details:
Empty enclosure for high mechanical load capacity. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant due to high-quality powder coating. Earthing screws in the base and cover for holding protective conductors. Fastening bars for holding and fastening fixtures (mounting rail, mounting plate, etc.). Material: Die-cast aluminium. Seal: Foamed PUR seal. Cover screws: Stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.
