Short Info: be quiet! Dark Rock TF 2 - CPU Air Cooler - for LGA1155, AM3+, LGA1150, LGA1151, LGA2011-3 (Square ILM), AM4, LGA2066, LGA1200 - Aluminum with Copper Base - 135 mm - Black
Product Description: be quiet! Dark Rock TF 2 CPU Air Cooler
Product Type: CPU Air Cooler
Package Contents: Thermal Paste
Color: Black
Compatibility: LGA1155 Socket, AM3+ Socket, LGA1150 Socket, LGA1151 Socket, LGA2011-3 (Square ILM) Socket, AM4 Socket, LGA2066 Socket, LGA1200 Socket
Cooler Material: Aluminum with Copper Base
Number of Fans: Dual
Fan Diameter: 135 mm
Fan Height: 22 mm
Fan Bearing: Dynamic Fluid Bearing
Rotational Speed: 1400 RPM
Noise Level: 11.1/19.7/27.1 dBA
Power Connection: Fan Connector, 4-Pin
Nominal Voltage: 12 V
Features: 6 Heat Pipes (6 mm)

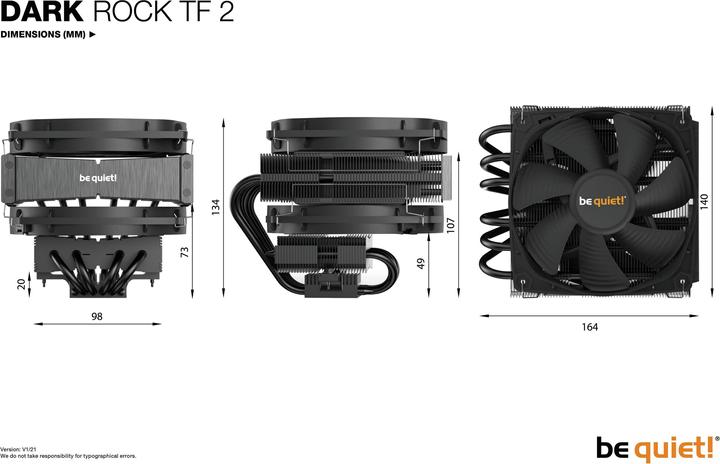

Dimensions (Width x Depth x Height): 14 cm x 16.3 cm x 13.4 cm
Weight: 945 g
Functions: Vibration Dampening, Silent Wings
Detailed Information:
General
Product Type: CPU Air Cooler
Package Contents: Thermal Paste
Width: 14 cm
Depth: 16.3 cm
Height: 13.4 cm
Weight: 945 g
Color: Black
Heatsink and Fan
Compatible with: LGA1155 Socket, AM3+ Socket, LGA1150 Socket, LGA1151 Socket, LGA2011-3 (Square ILM) Socket, AM4 Socket, LGA2066 Socket, LGA1200 Socket
Cooler Material: Aluminum with Copper Base
Number of Fans: 2
Fan Diameter: 135 mm
Fan Height: 22 mm
Fan Bearing: Dynamic Fluid Bearing
Rotational Speed: 1400 RPM
Noise Level: 11.1/19.7/27.1 dBA
Power Connection: Fan Connector, 4-Pin
Nominal Voltage: 12 V
Nominal Current: 0.2 - 0.4 A
Power Consumption: 2.4-4.8 W
Cable Length: 22 cm
Features: 6 Heat Pipes (6 mm)

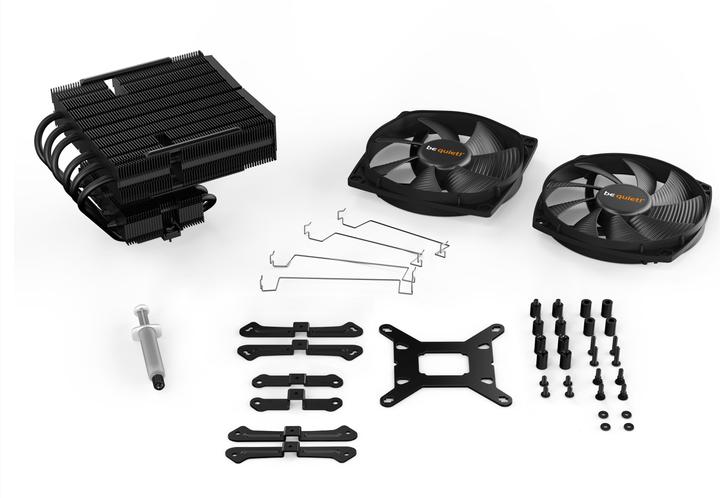

Miscellaneous: Mounting Kit Included
MTBF: 300,000 Hours
Performance Features: Vibration Dampening, Silent Wings.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 1851, LGA 2011, LGA 2011-v3, LGA 2066 |
Height (with fan) | 134 mm |
Diameter | 135 mm |
Number of fans | 2 x |
Max. TDP | 230 W |
Airflow | 0.09 m³/h |
power connector | 4-pin PWM |
Item number | 16335805 |
Manufacturer | be quiet! |
Category | CPU coolers |
Manufacturer no. | BK031 |
Release date | 11.8.2021 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Top Blower |
Fan type | Standard |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700, LGA 1851, LGA 2011, LGA 2011-v3, LGA 2066 |
Cooler mounting | Backplane |
Supported fan sizes | 135mm |
Number of heatpipes | 6 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 6 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 135 mm |
Number of fans | 2 x |
Max. Speed | 1400 RPM |
Max. TDP | 230 W |
Airflow | 0.09 m³/h |
Max. noise level | 27.10 dB |
LED colour | without LED |
Fan bearing type | Fluid Dynamic bearing |
power connector | 4-pin PWM |
Power consumption | 4800 W |
Voltage | 12 V |
Scope of delivery | Installation kit |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 163 mm |
Length (with fan) | 163 mm |
Height (with fan) | 134 mm |
Weight | 945 g |
Length | 22 cm |
Width | 20 cm |
Height | 22 cm |
Weight | 1.47 kg |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Digitec Galaxus
Two 135 millimetre fans, seven heatpipes and a fighting weight of 945 grams: the be-quiet cooler outperforms the rest of the test field in terms of material usage and cooling performance, and at the lowest noise level. The downside is the high price and the height of 134 millimetres...
The be quiet! Dark Rock TF 2 exhibits excellent cooling ability and near-silent operation, though it faces stiff competition from its own be quiet! brethren. But as either a performance option where the clearance is the primary limiting factor, or for those who favour downdraft coolers, it's a solid choice.
