Axis F1025 Sensor unit, 12m

1920 x 1080 Pixels
Ratings
BrandMore from Axis
Currently out of stock
Free shipping starting at 50.–

Product details

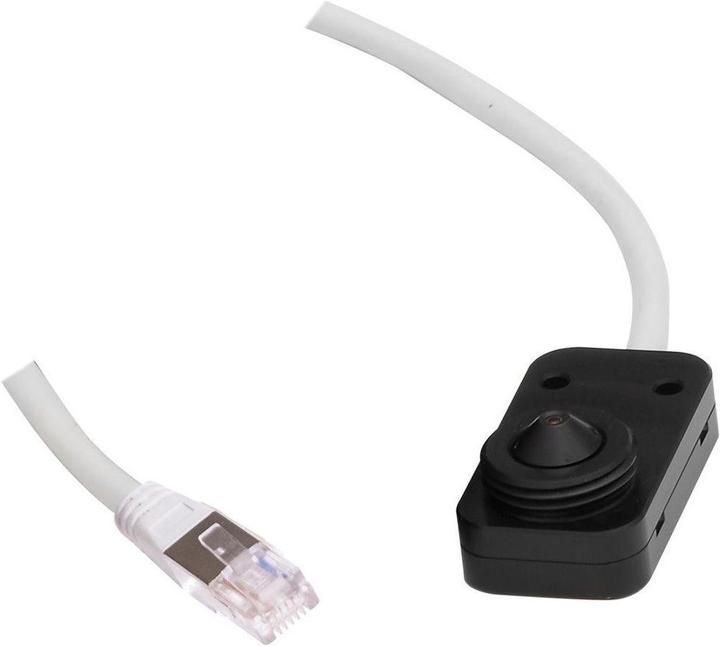

The AXIS F1025 sensor unit, when combined with an AXIS F main unit, is ideal for extremely discreet indoor surveillance, such as at ATMs, in banks, stores, hotels, and elevators. The small AXIS F1025 unit can be installed in tight spaces, passages, behind metal covers, or flush in a wall or ceiling, leaving only a small hole for the lens visible.

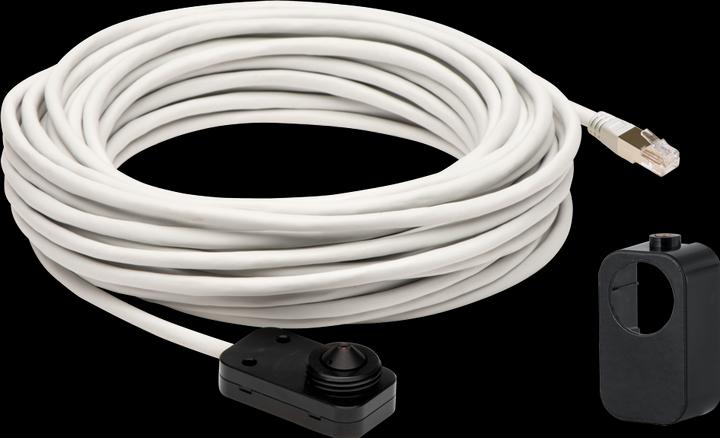

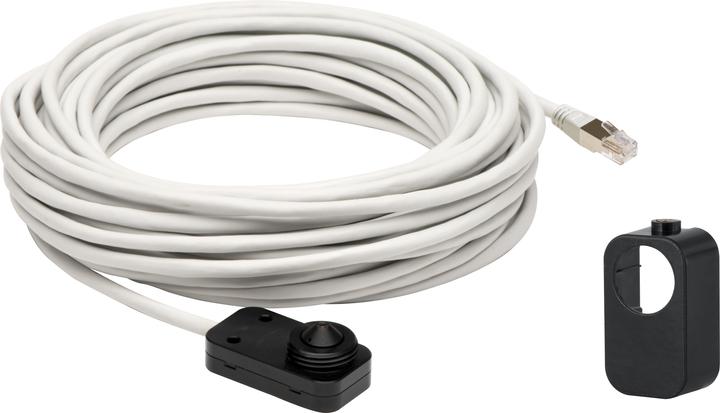

The AXIS F1025 features an image sensor and a pinhole lens with a 92° wide horizontal field of view in 1080p resolution. It comes with a 3 or 12-meter long cable for connection to the AXIS F main unit. Included in the package is an AXIS F8202 straight mounting bracket for installation on flat surfaces.

Key specifications

Network camera type
Surveillance camera indoor
Lens type
Prime lens
Advanced functions
Motion sensor, Night vision function, Two-way audio
Network interface
RJ45 port
Power supply
PoE
Documents
Technical data sheet.pdf

General information

Item number
5651407
Manufacturer
Axis
Category
Network camera
Manufacturer no.
0734-001
Release date
30.8.2015

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Camera properties

Network camera type
Surveillance camera indoor
Camera resolution
2 Mpx
Max. picture resolution
1920 x 1080 Pixels
Viewing angle (H)
92°
Viewing angle (V)
45°
Lens type
Prime lens
Focal length
3.7 mm
Aperture
f/2.5
Image sensor type
CMOS
Refresh rate
60 FPS
Advanced functions
Motion sensor, Night vision function, Two-way audio
Video file formats
H.264, MJPEG, MPEG-4

Network

Network interface
RJ45 port
Max. port speed
100 Mbit/s

Application range

Application range
Home use

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE), 802.3at (PoE+)

Scope of delivery

Scope of delivery
1x Axis F8202 straight mounting bracket, 1x installation guide, 1x network cable - external - 12 m

Product dimensions

Height
20 mm
Length
45 mm
Width
20 mm
Weight
78 g

Package dimensions

Length
18 cm
Width
17 cm
Height
5 cm
Weight
440 g
