Axagon PCEM2-N

Save CHF1.–
43Ratings
tonight with flash delivery
to check if flash delivery is available to you.

Product details

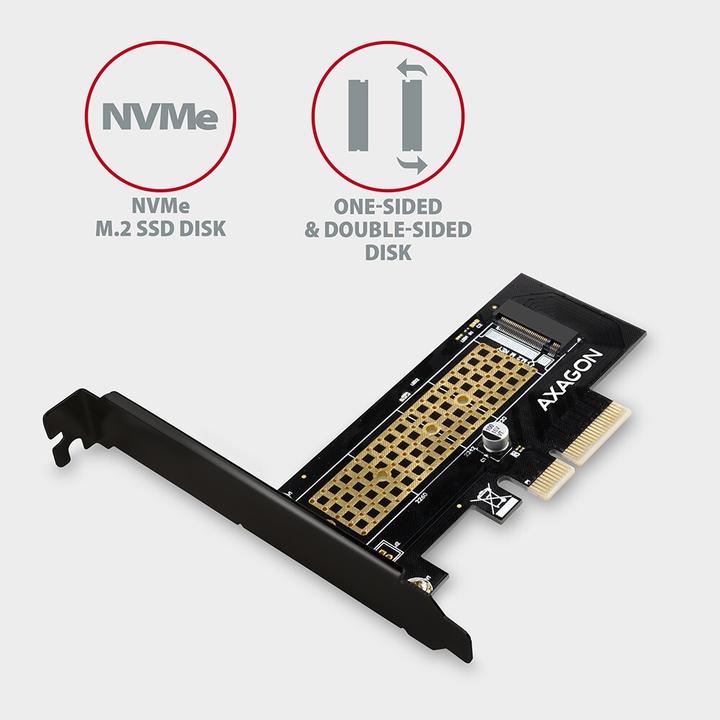

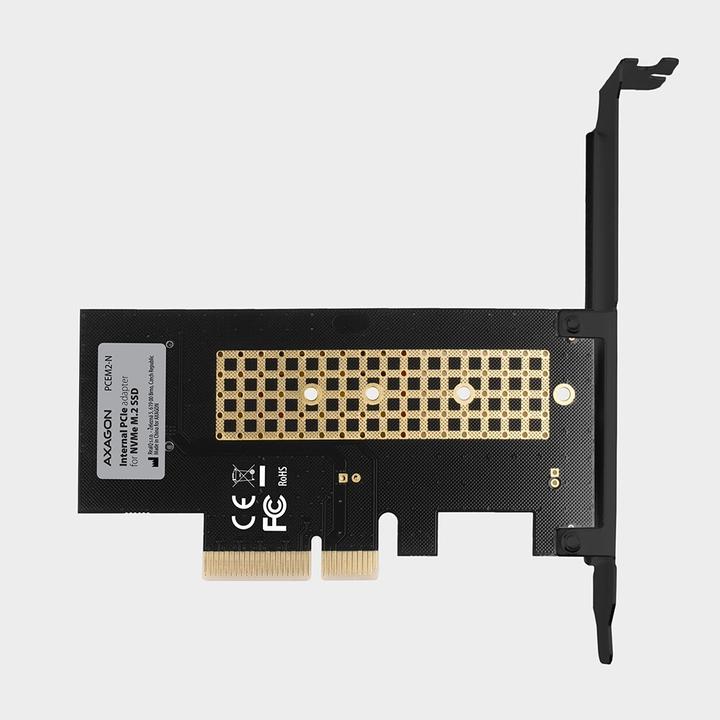

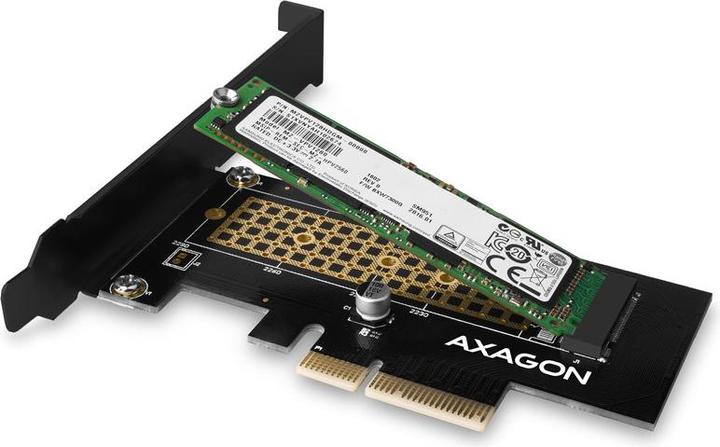

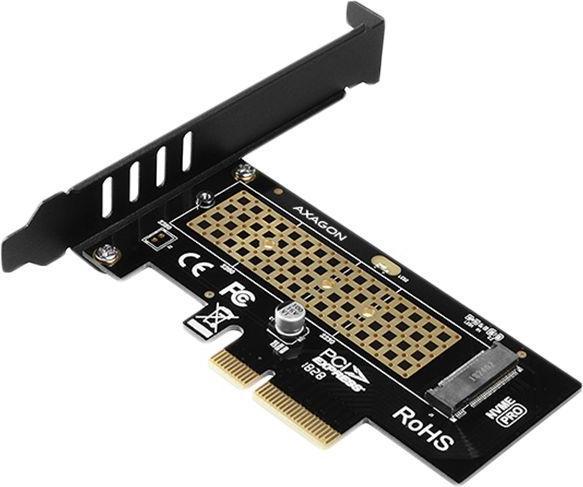

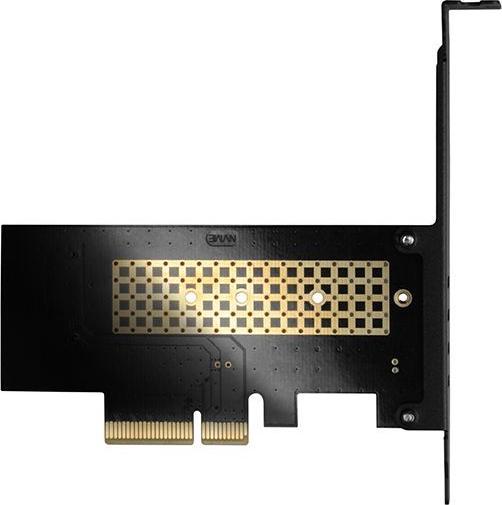

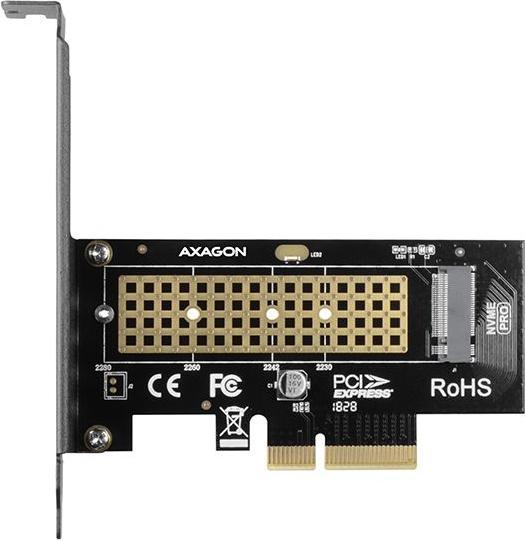

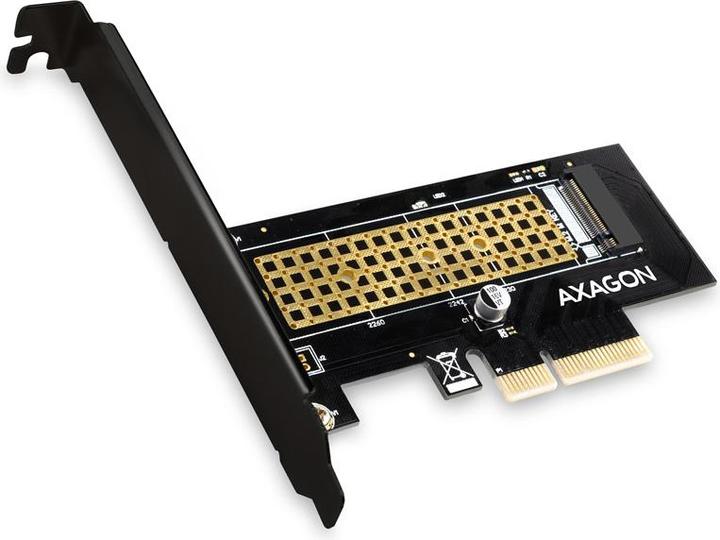

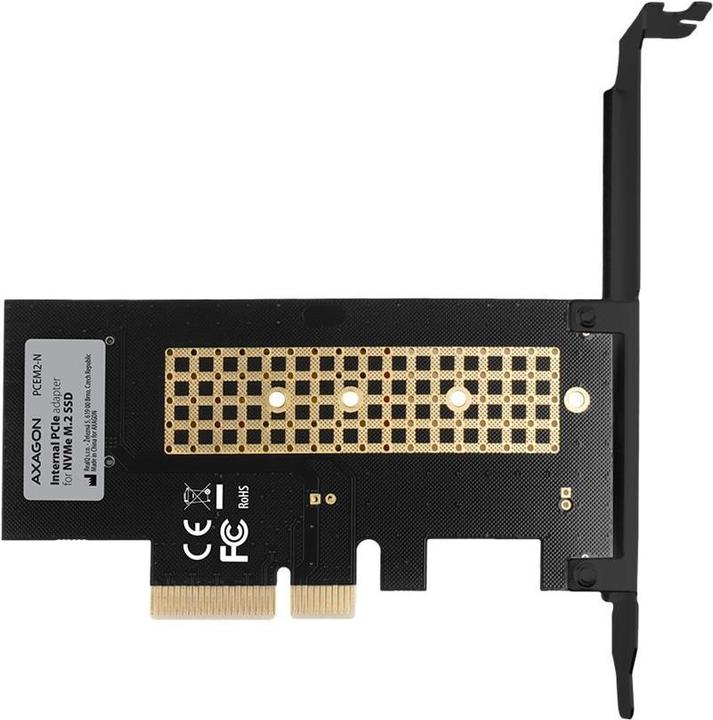

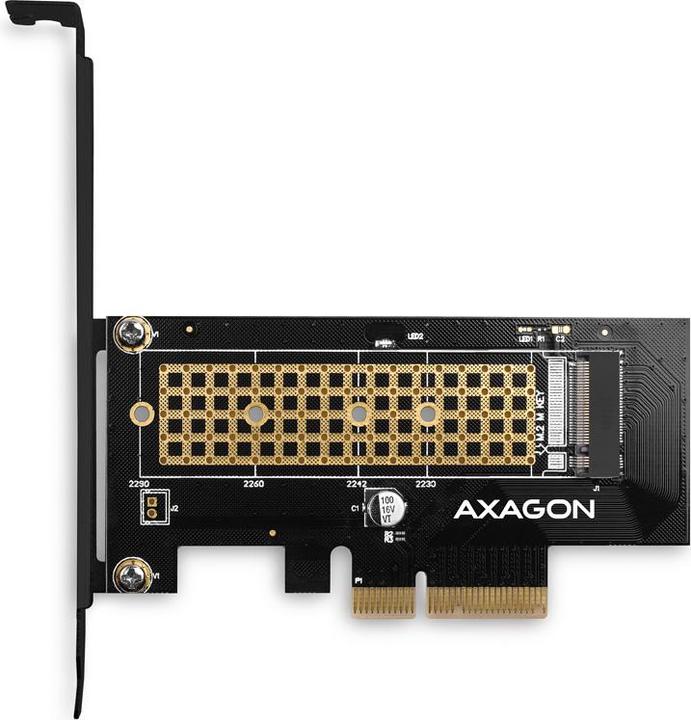

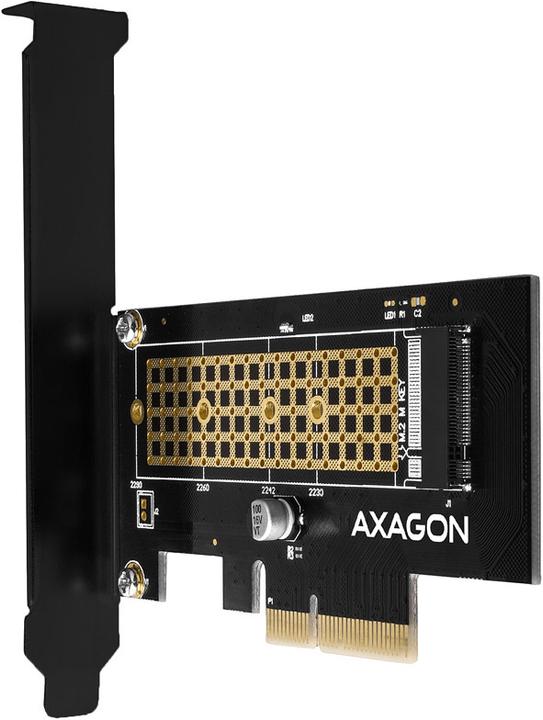

With the PCEM2-N, AXAGON offers an internal adapter that connects an NVMe M.2 SSD to the PC via a PCI-Express slot. This is particularly useful when the motherboard does not have a suitable M.2 slot or when those slots are already occupied. The adapter allows the use of single-sided and double-sided M.2 SSDs in x16, x8, and x4 PCIe 3.0 slots.

The PCI-Express bus powers the PCEM2-N directly, eliminating the need for an external power source. Thermal pads and copper ventilation openings help dissipate the heat generated by the M.2 SSDs under load. Two LED indicators provide information on the connection status and data transfer activity.

Technical details:

  • Dimensions: 105 x 8 x 49 mm (W x H x D)
  • Input:
  • Interface: PCI-Express 3.0
  • Number of lanes: 4-Lane (x4)
  • Speed (PCI-Express 3.0): 8 GB/s (bidirectional)
  • Compatibility: PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0
  • PCIe Slot: x4 / x8 / x16
  • Output:
  • Interface: M.2 NVMe (PCI-Express)

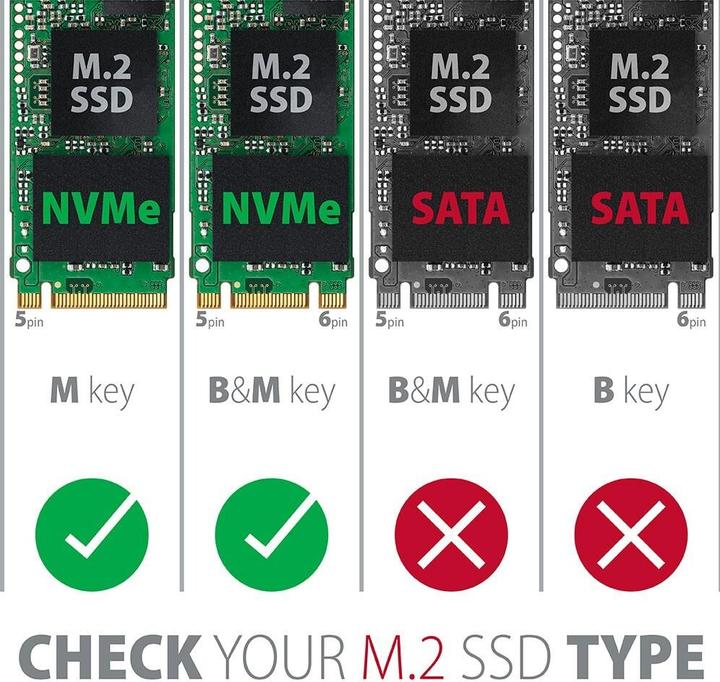

  • Connector: 75-pin M.2 M-Key or B+M-Key
  • Compatibility: all M.2 NVMe SSDs (M-Key)

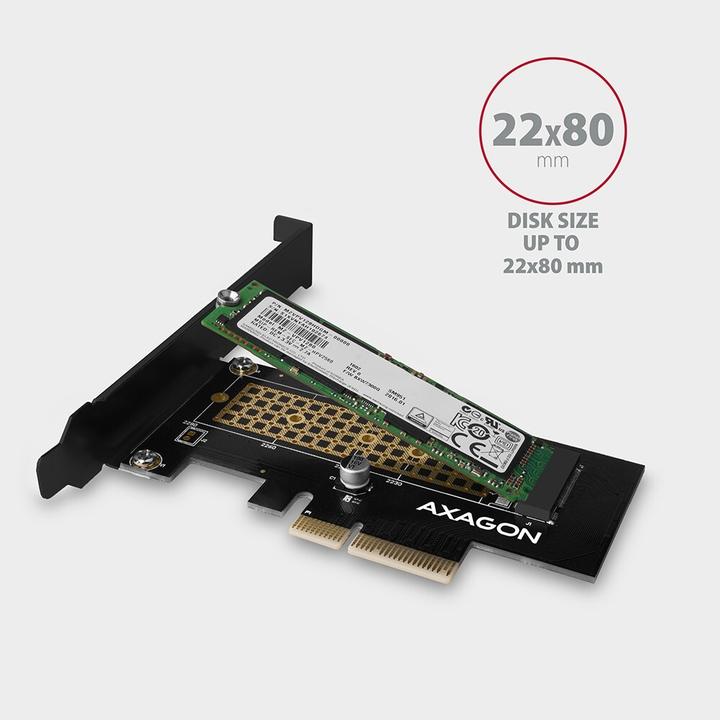

  • Supported sizes:
  • 2280 / 2260 / 2242 / 2230
  • Height: single-sided / double-sided M.2 SSDs
  • Max. disk capacity: no limit
  • Compatibility:
  • MS Windows: 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)
  • MS Windows Server: 2016 / 2012 / 2008 R2 (all 32- and 64-bit versions)
  • Linux: Kernel 2.6.31 and higher

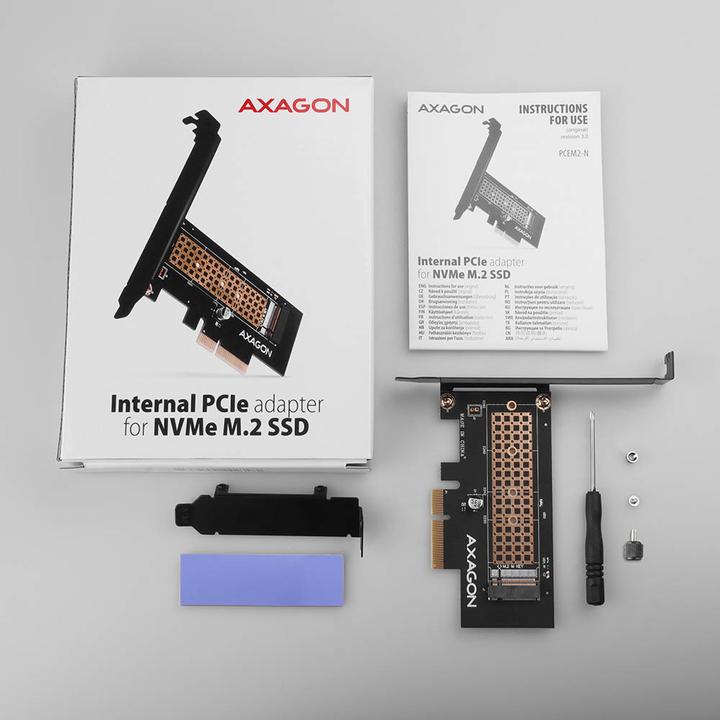

  • Package contents:
  • 1x PCI-Express adapter with standard bracket

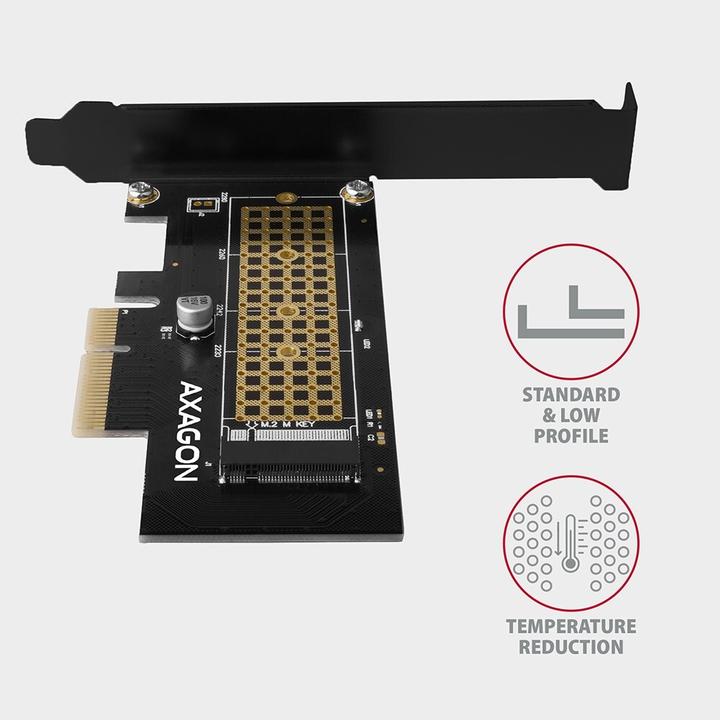

  • Low-profile bracket
  • 2x thermal pads
  • Mounting materials and screwdriver
  • Installation manual.

Key specifications

Internal connection options
M.2 (1x)
Expansion slot
PCI Express x16 (1x)
Number of connectable hard disks
1 x
Controller type
M.2 controller
Item number
16647150

General information

Manufacturer
Axagon
Category
Storage controller
Manufacturer no.
PCEM2-N
Release date
15.9.2021
Sales rank in Category Storage controller
9 of 558
External links
Manufacturer's site (de)

Controller properties

Controller type
M.2 controller
Expansion card form factor
Low profile
Number of ports
1 Ports
Number of connectable hard disks
1 x
Storage Controller Additional Functions
Hot swapping

Internal interfaces

Expansion slot
PCI Express x16 (1x)
Internal connection options
M.2 (1x)

Scope of delivery

Scope of delivery
Instruction manual

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
8 mm
Width
49 mm
Weight
35 g

Package dimensions

Length
17.20 cm
Width
13.50 cm
Height
3.20 cm
Weight
110 g
