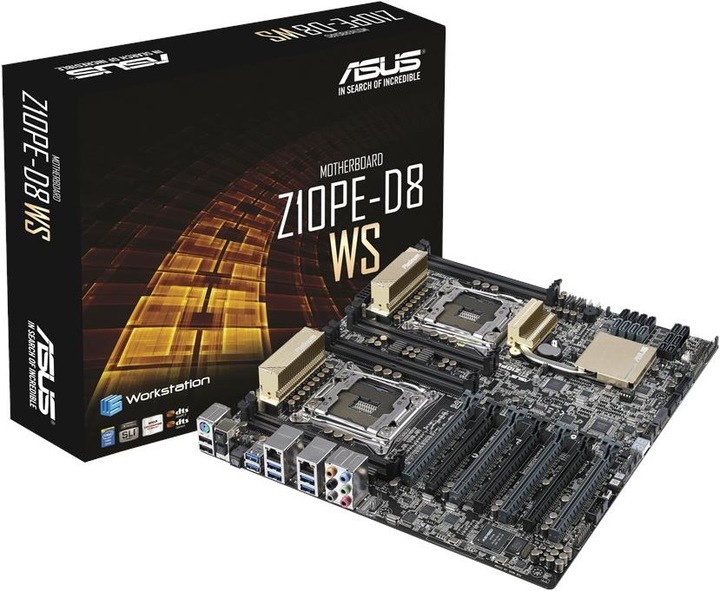

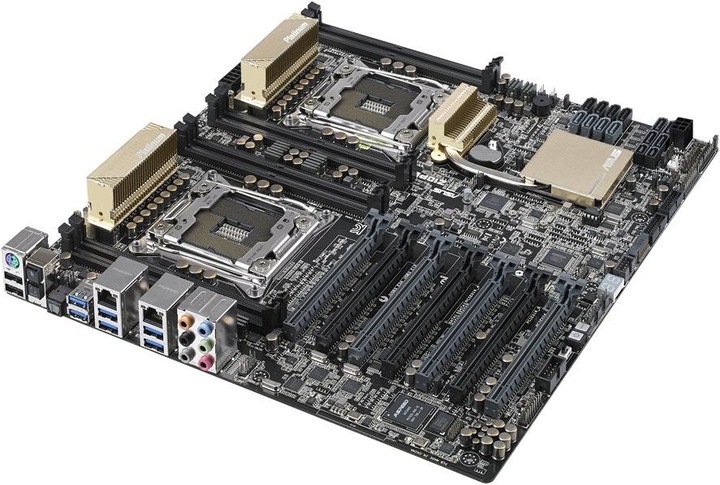

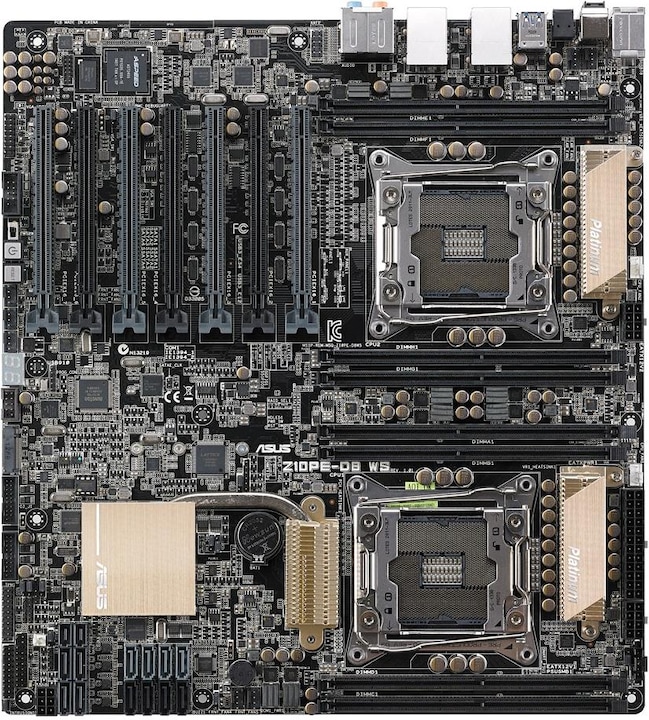

ASUS Z10PE-D8 WS

LGA 2011-v3, Intel C612 PCH, SSI EEB

Scope of delivery:

I/O shield
1 x COM port cable(s)
12 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x 2-port USB 2.0 module(s)
1 x VGA bracket(s)
1
x ASWM Enterprise SDVD

Key specifications

Processor family
Xeon E5 v3
Memory type
DDR4-RAM
Internal connection options
S-ATA III (8x)
Peripheral connections
USB 3.0 Type-A (2x), USB 3.0 Type-A (6x)
Item number
3457973

General information

Manufacturer
Category
Motherboards
Manufacturer no.
90SB0460-M0EAY0
Release date
12/8/2014

Motherboard properties

Form factor
SSI EEB
Processor socket
LGA 2011-v3
Chipset
Intel C612 PCH
Mainboard features
Clear CMOS Button

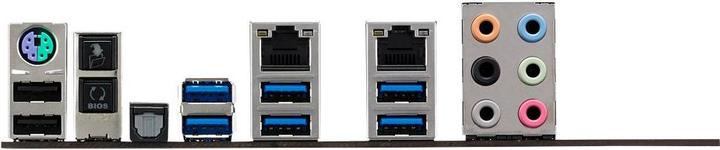

Peripheral connections
USB 3.0 Type-A (2x), USB 3.0 Type-A (6x)
BIOS type
UEFI

Processor

Processor type
Intel Xeon E5-2600
Processor family
Xeon E5 v3

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
8 x
Max. memory (RAM)
512 GB
Memory chip
DDR4-1333, DDR4-1600, DDR4-1866, DDR4-2133
Supported memory speed
1600 MHz, 1866 MHz, 2133 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered
Channel architecture
4

Graphics properties

Multi-GPU PCI-E x16 Speed
x16/x0, x16/x16, x8/x8/x8/x8/x8
Multi-GPU technology
AMD Quad-GPU CrossFireX, NVIDIA Quad SLI

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel
Ethernet controller
I210-AT
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC1150
Audio channel
7.1 Channel
Audio Connections
USB (2x)

Internal interfaces

Internal connection options
S-ATA III (8x)
Expansion slot
PCI Express x16 (7x)
Number of fan connector
9

Power supply

Power connectors
24-pin ATX, 2x 8-pin ATX 12V, 6-pin PCI-E

Scope of delivery

Scope of delivery
S-ATA cable, User manual

Product dimensions

Length
305 mm
Width
330.20 mm
Height
305 mm

Package dimensions

Length
37.30 cm
Width
41 cm
Height
10.20 cm
Weight
3.37 kg
