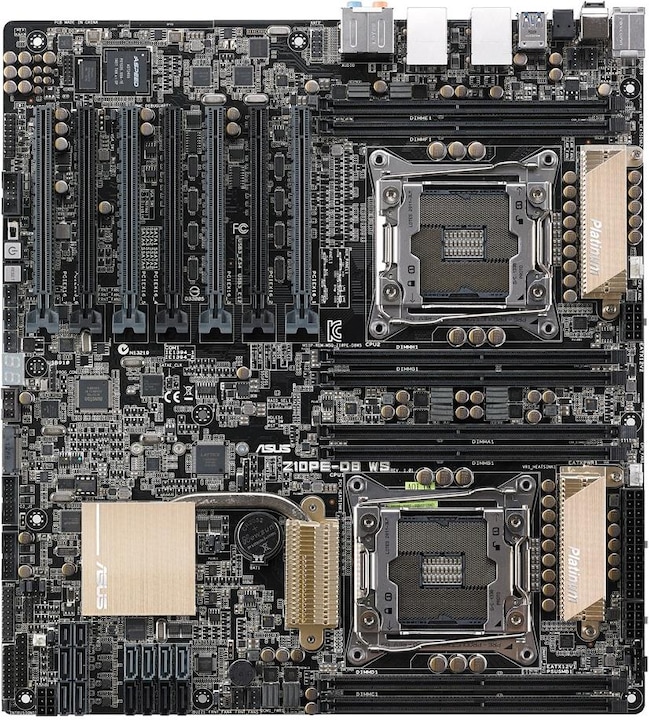

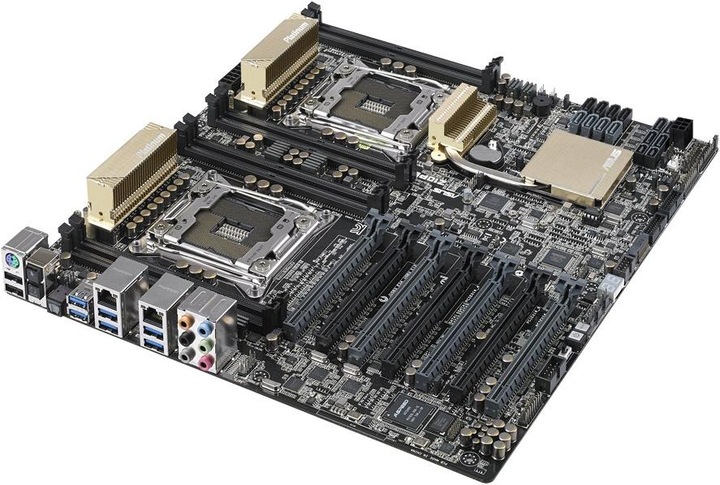

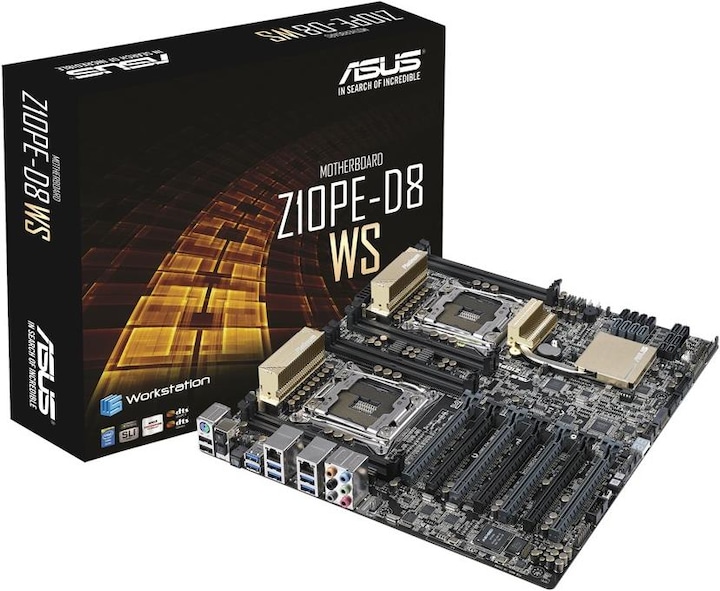

ASUS Z10PE-D8 WS (LGA 2011-v3, Intel C612 PCH, SSI EEB) Actual product image
CHF 526.–

ASUS Z10PE-D8 WS (LGA 2011-v3, Intel C612 PCH, SSI EEB)

Description

Scope of delivery:

I/O shield
1 x COM port cable(s)
12 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x 2-port USB 2.0 module(s)
1 x VGA bracket(s)
1 x ASWM Enterprise SDVD

Specifications

Key specifications

PCI express version (max.)3
Multi-GPU technologyNVIDIA Quad SLI, AMD Quad-GPU CrossFireX

General information

Manufacturer ASUS
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number3457973
Manufacturer no.90SB0460-M0EAY0
External links Manufacturer's site (de)

Motherboard properties

Form factor
SSI EEB
i

SSI EEB

305 × 330 mm

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

LGA 2011-v3
Chipset
Intel C612 PCH
BIOS Flashback
Yes
SuperSpeed USB 3.0
Yes
UEFI BIOS
Yes

Processor compatibility

Processor family
Intel Xeon E5-2600 v3

Memory

Number of memory modules
8 x
Max. memory
512 GB
Memory chip
DDR4-2133
,
DDR4-1600
,
DDR4-1866
,
DDR4-1333
Memory type
DDR4-RAM
Channel architecture
4 (Quad Channel)
i

4 (Quad Channel)

More information...

RAM buffer
i

RAM buffer

In addition to bandwidth and capacity variants, modules can
1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation.
2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation.
3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.

ECC Registered
Memory form factor
DIMM 288

Mass storage controller 1

Data storage controller
Intel onboard
i

Intel onboard

More information...

S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

8 x
S-ATA Express
1 x
M.2
1 x
RAID configuration
0
i

0

(block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance.

More information...

,
1
i

1

(mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency.

More information...

,
5
i

5

(block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure.

More information...

,
10
i

10

A RAID 10 group is a RAID 0 over several RAID 1, combining the characteristics of both RAIDs: security and increased read/write speed.
A RAID 10 network requires at least four hard disks.

More information...

Mass storage controller 2

Data storage controller
AsMedia
S-ATA Express
1 x

Expansion slots

PCI express version (max.)
3
PCI Express x16
i

PCI Express x16

PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors.
During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output".

More information...

7 x

Graphics properties

i

Graphics properties

Beschreibt die Grafik Eigenschaften des Gerätes.

Multi-GPU PCI-E x16 Speed
x16/x16
,
x8/x8/x8/x8/x8
,
x16/x0
Multi-GPU technology
NVIDIA Quad SLI
,
AMD Quad-GPU CrossFireX

Graphic connectors

VGA
i

VGA

A VGA connector as it is commonly known (other names include RGB connector, D-sub 15, mini sub D15 and mini D15) is a three-row 15 pin DE-15. There are four versions: original and DDC2 pinouts, the far older and less flexible DE-9 connector, and a Mini-VGA used for laptops.
The common 15-pin VGA connector found on most video cards, computer monitors, and other devices, is almost universally called "HD-15". HD stands for "high-density", which distinguishes it from connectors having the same form factor but only 2 rows of pins. However, this connector is often incorrectly referred to as a DB-15 or HDB-15.[citation needed]
"VGA connectors" and their associated cabling are almost always used solely to carry analog component RGBHV (red - green - blue - horizontal sync - vertical sync) video signals along with DDC2 digital clock and data.
Where size is a constraint (such as laptops) a mini-VGA port can sometimes be found in place of the full-sized VGA connector.

1 x

Network

RJ45/LAN port
i

RJ45/LAN port

Network connection allows connection to an internal or external network.

More information...

2 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
Intel
i

Intel

Intel Corporation is an American multinational semiconductor chip maker corporation headquartered in Santa Clara, California.

More information...

Ethernet controller
I210-AT

Audio

Chip
Realtek ALC1150
Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

7.1 Channel
Audio (3. 5 mm) connectors
5 x
Optical TOSLINK
1 x
Coaxial S/PDIF
1 x

Internal interfaces

USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

1 x
USB 3.0 type A
2 x
Number of fan connector
9
Onboard power button
Yes
Reset button onboard
Yes
S/PDIF Header
1 x
Serial Header
1 x

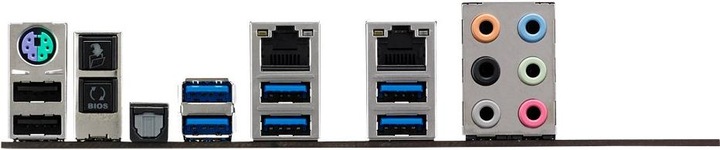

External interfaces

PS/2 Combo
1 x
USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

2 x
USB 3.0 type A
6 x

Power supply

i

Power supply

All power supply related details.

Power connectors
24-pin ATX
i

24-pin ATX

More information...

,
6-pin PCI-E
i

6-pin PCI-E

More information...

,
2x 8-pin ATX 12V

Delivery contents

S-ATA cable
12 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

More information...

Yes

Product dimensions

Length
305 mm
Width
330.20 mm
