ASUS TUF GAMING B760M-PLUS WIFI D4

LGA 1700, Intel B760, mATX
4Ratings
BrandMore from ASUS
Delivered between Sat, 7.6. and Sat, 14.6.
Only 4 items in stock at supplier

Product details

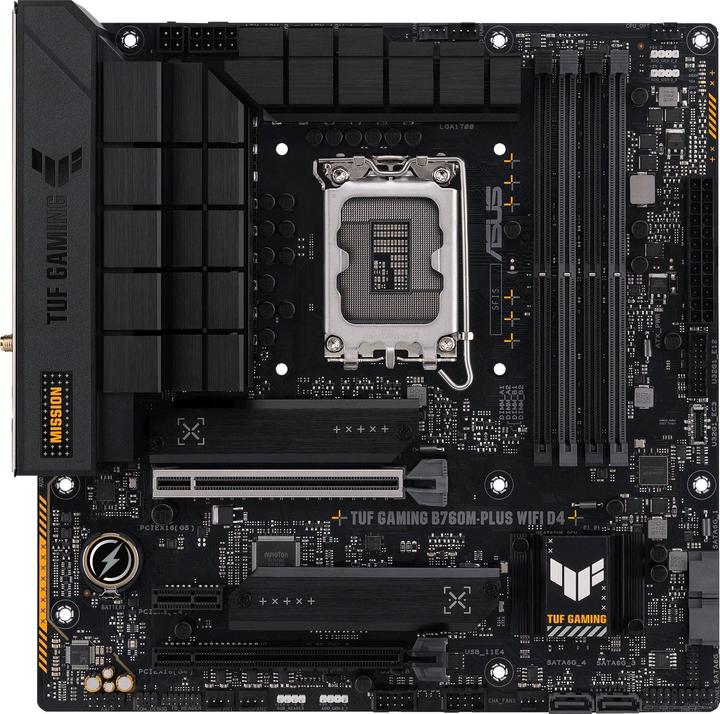

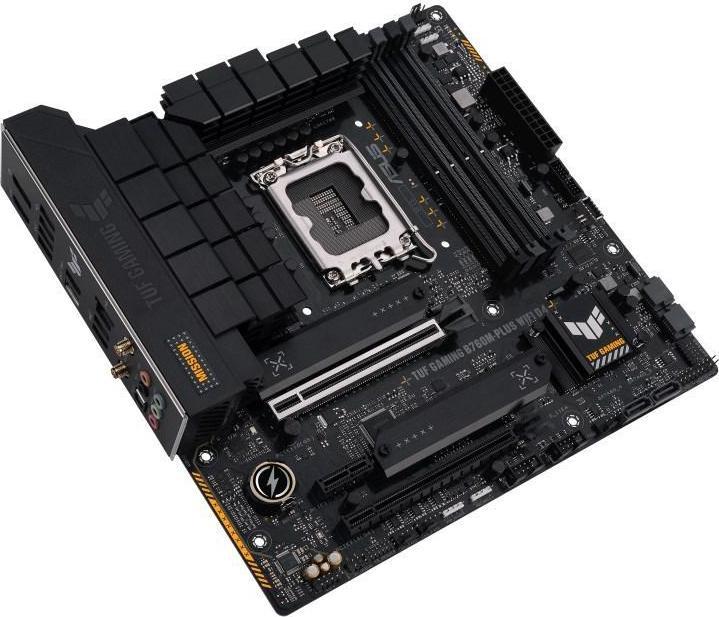

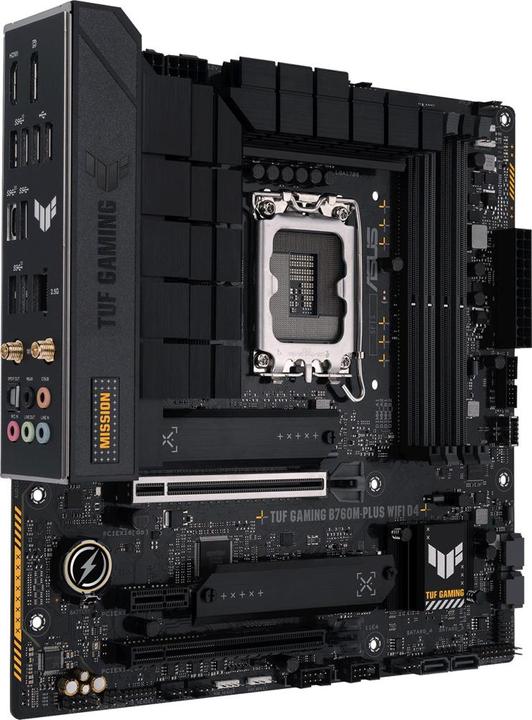

The ASUS TUF Gaming B760M-Plus WiFi D4 motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket from the 12th and 13th generations. It features four DDR4 DIMM slots operating in dual-channel mode for up to 128 GB of RAM.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
23621344

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1DG0-M0EAY0
Release date
29.11.2022
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-2933, DDR4-3200
Max. RAM OC
5333 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 5000 MHz, 6400 MHz, 8000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

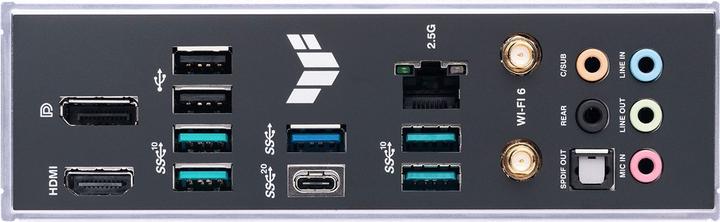

Video connections
DisplayPort, HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x), Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x)

Power supply

Power connectors
24-pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
Weight
1650 g

Package dimensions

Length
28 cm
Width
28 cm
Height
7 cm
Weight
1.56 kg
