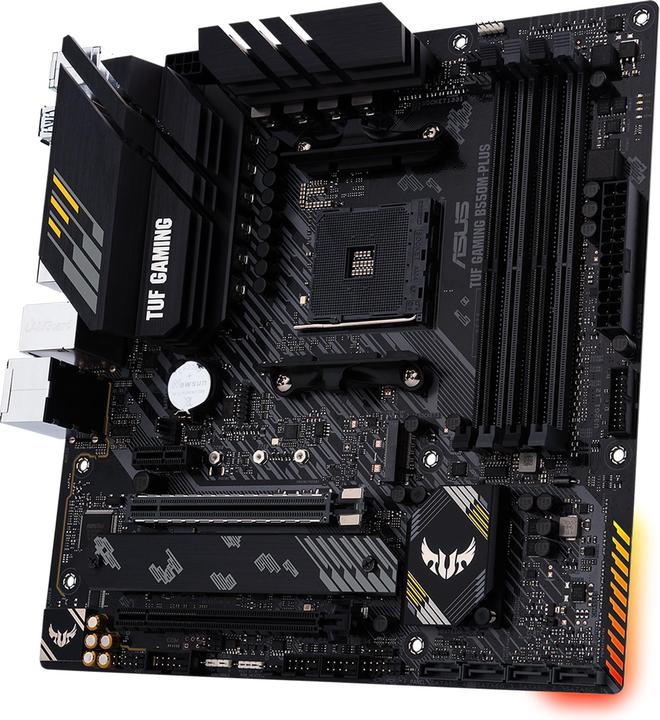

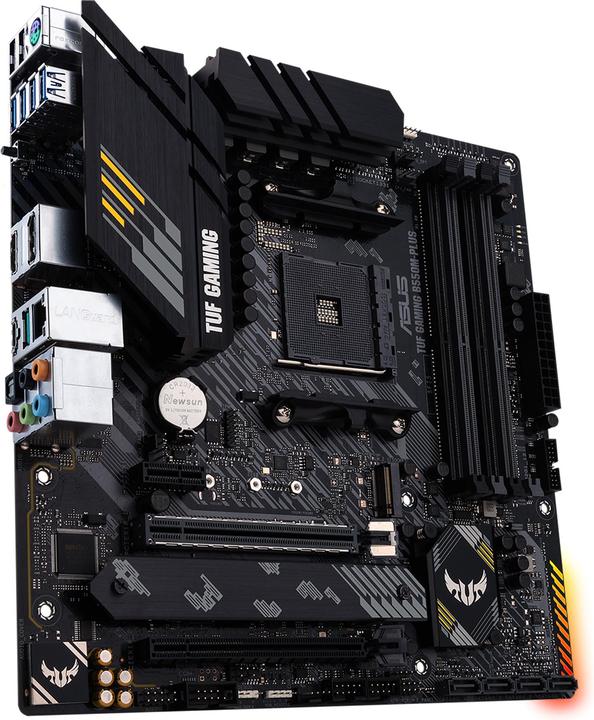

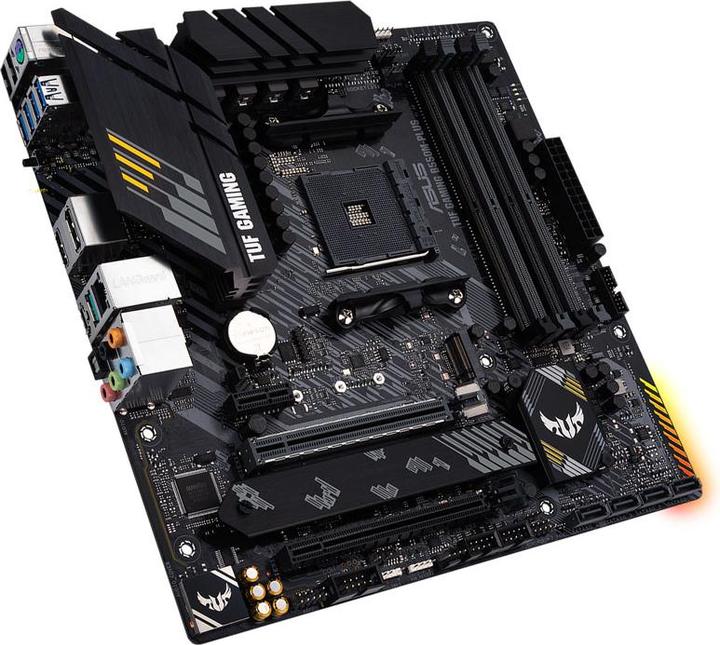

Comprehensive controls form the foundation of the ASUS Tuf Gaming series. The Tuf Gaming B550 motherboard offers flexible tools for fine-tuning every aspect of your system, allowing you to perfectly adjust the performance settings to match your workflow and maximize your productivity.
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Item number | 13348830 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB14A0-M0EAY0 |
Release date | 17.6.2020 |
Sales rank in Category Motherboards | 310 of 1035 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B550 |
Operating system compatibility | Windows 10 |
BIOS type | Ami |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3000, DDR4-3200, DDR4-3600 |
Max. RAM OC | 4600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Multi-GPU technology | AMD CrossfireX |

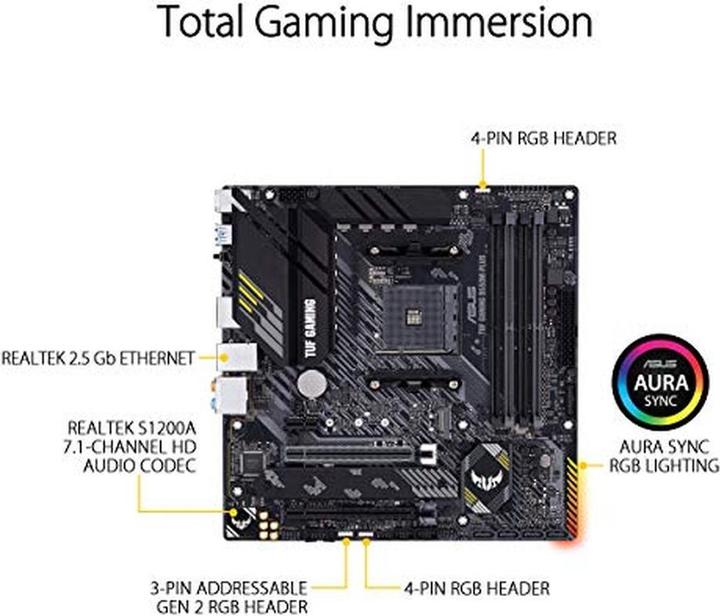

Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125B |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |

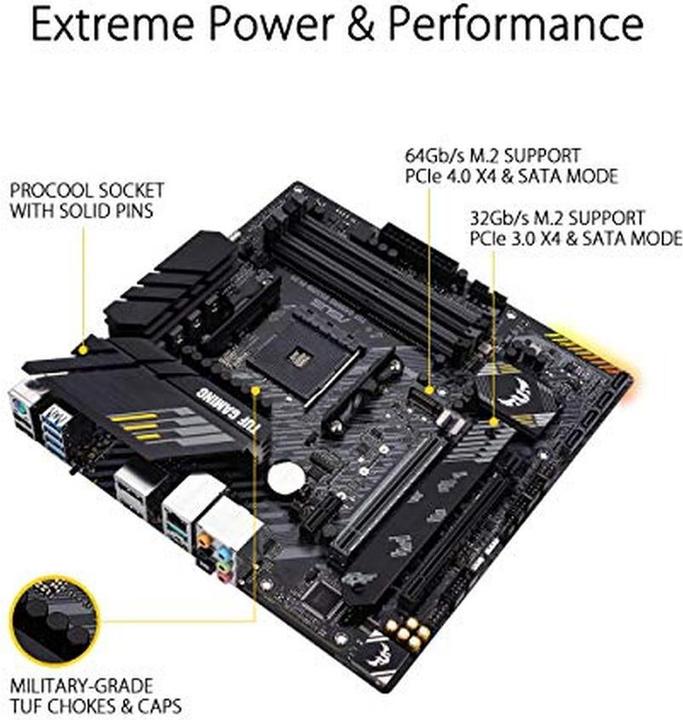

Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |

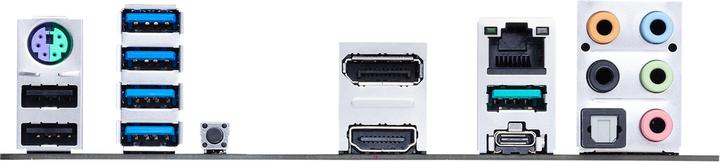

USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

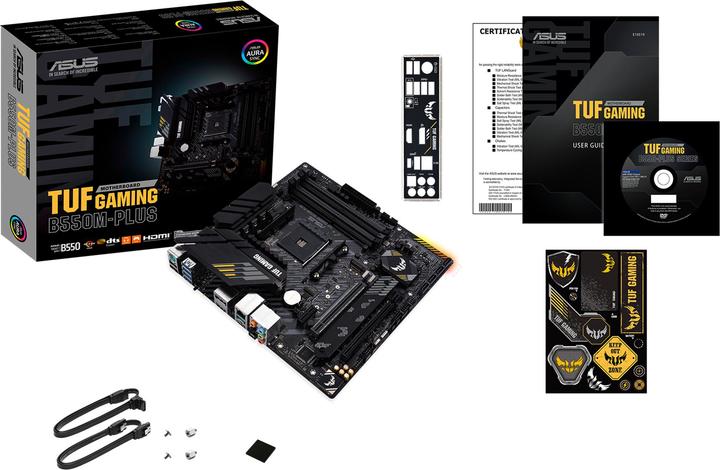

Scope of delivery | 1 M.2 screw, I/O back cover, TUF sticker |
Length | 244 mm |
Width | 244 mm |
Height | 67 mm |
Weight | 845 g |
Length | 8 cm |
Width | 27 cm |
Height | 27 cm |
Weight | 1.29 kg |
