Product details
The B450 chipset is the heart of the ASUS TUF B450-PRO II Gaming motherboard and has been specifically optimized for the Ryzen CPUs of the 2000 series (Pinnacle Ridge). B450 motherboards support all features of the second-generation Ryzen processors, such as the new overclocking feature XFR2. Additionally, the motherboards support up to 128 GB of RAM with a clock speed of 2,666 megahertz. Depending on the motherboard, significantly higher clock speeds are possible through overclocking, and the B450 chipset also enables CPU overclocking.
Processor family | AMD 3000 Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Mainboard features | Error Correcting Code |
Item number | 13984781 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1610-M0EAY0 |
Release date | 7.10.2020 |
External links |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Error Correcting Code |
Operating system compatibility | Windows 10, Windows 7 |
BIOS type | UEFI AMI |
Processor family | AMD 3000 Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3600 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |

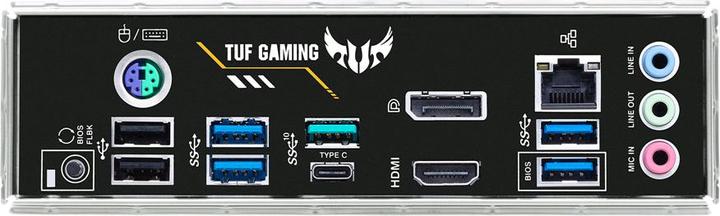

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0b |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | i211 |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x8 (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |

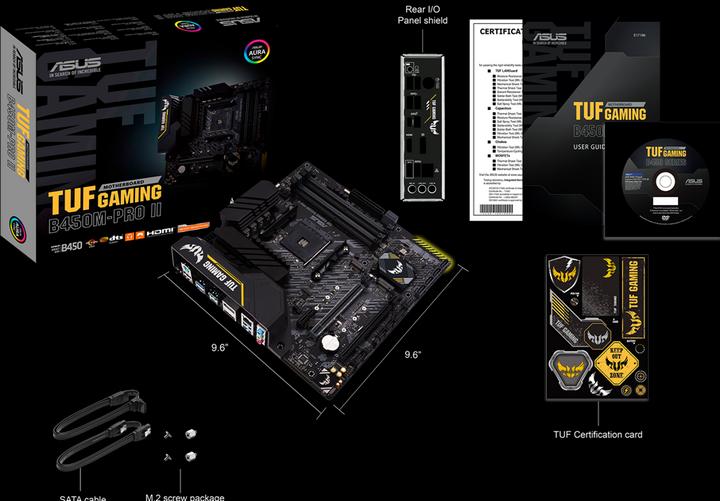

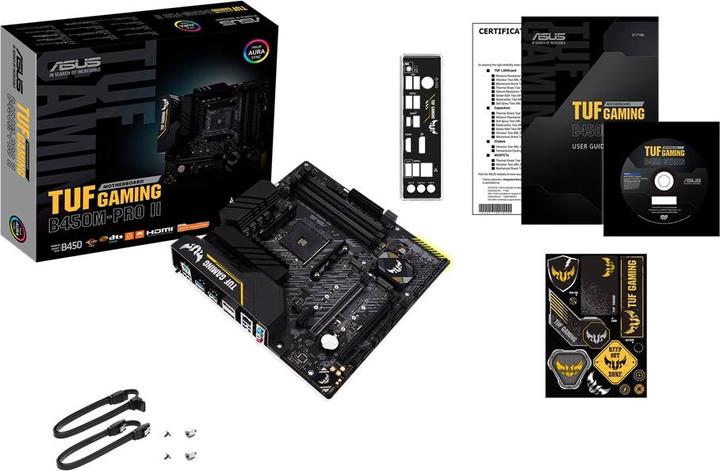

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 300 mm |
Weight | 1333 g |
Length | 34 cm |
Width | 28 cm |
Height | 6 cm |
Weight | 1.08 kg |
