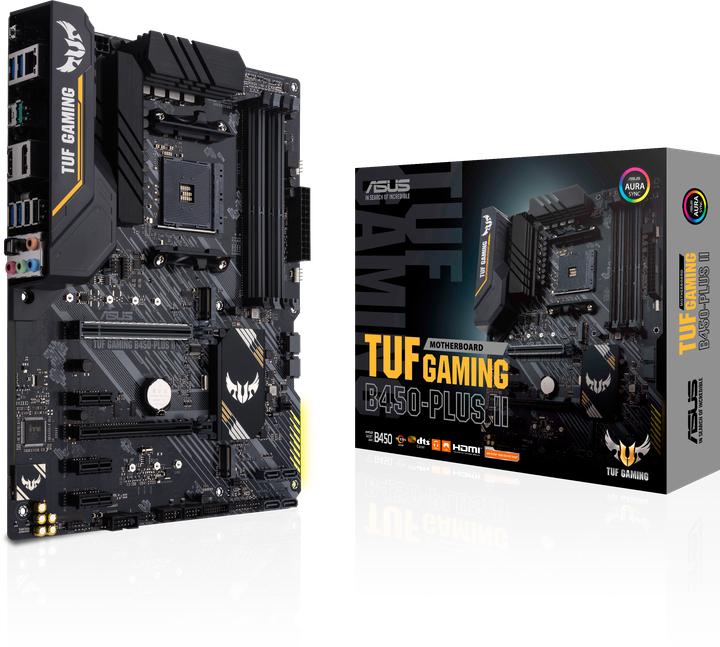

The B450 chipset is the heart of the ASUS TUF B450-Plus II Gaming motherboard and has been specifically optimized for the Ryzen CPUs of the 2000 series (Pinnacle Ridge). B450 motherboards support all features of the second-generation Ryzen processors, such as the overclocking feature XFR2. Additionally, the motherboards support up to 128 GB of RAM with a guaranteed clock rate of 2,666 megahertz. Depending on the motherboard, significantly higher clock rates are also possible through overclocking, and the B450 chipset also enables CPU overclocking.
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button, S/PDIF header |
Item number | 14102361 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1650-M0EAY0 |
Release date | 9.3.2023 |
Sales rank in Category Motherboards | 237 of 1040 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Clear CMOS Button, S/PDIF header |
Operating system compatibility | Linux, Windows |
BIOS type | UEFI AMI |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 4000 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4000 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.0b |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek L8200A |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 1.0 (1x), USB-C 4 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

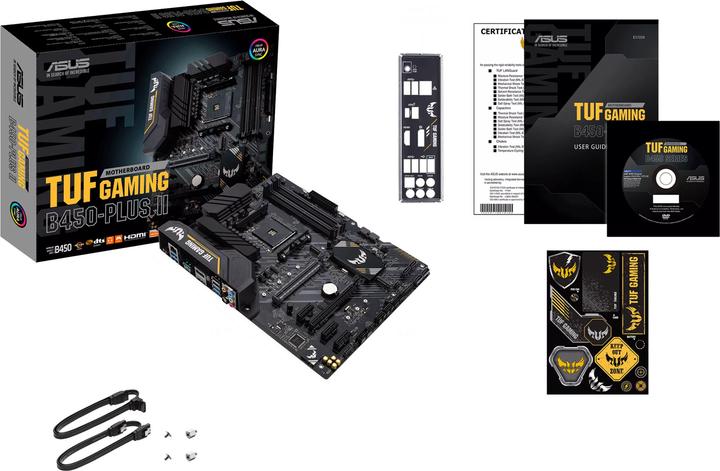

Scope of delivery | Beater, Sata Cables |
Length | 305 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1100 g |
Length | 34.50 cm |
Width | 27.50 cm |
Height | 7 cm |
Weight | 1.47 kg |
