CHF 229.-

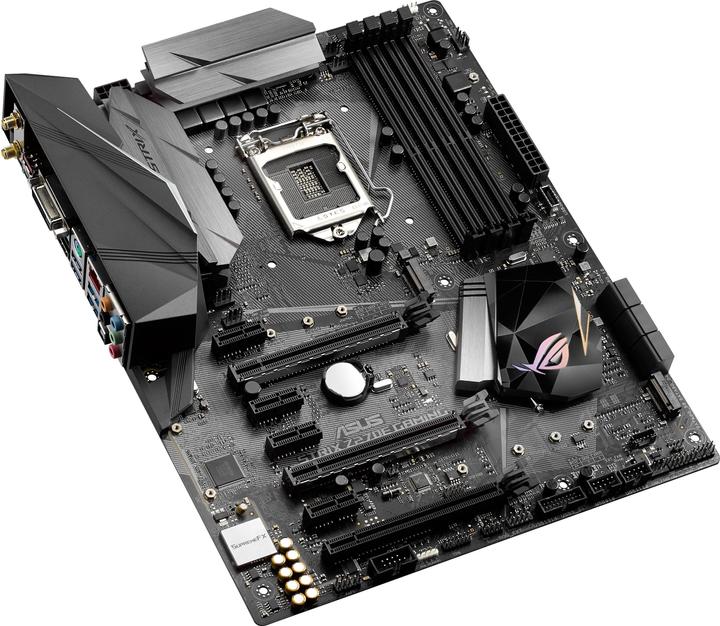

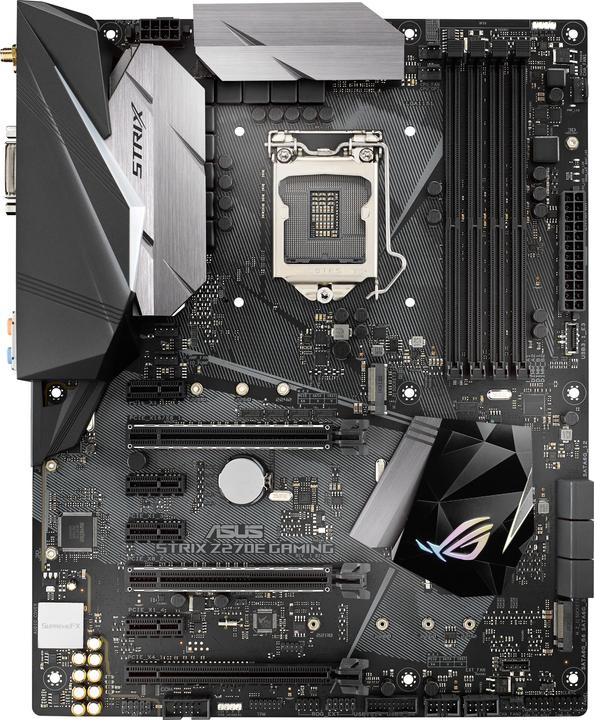

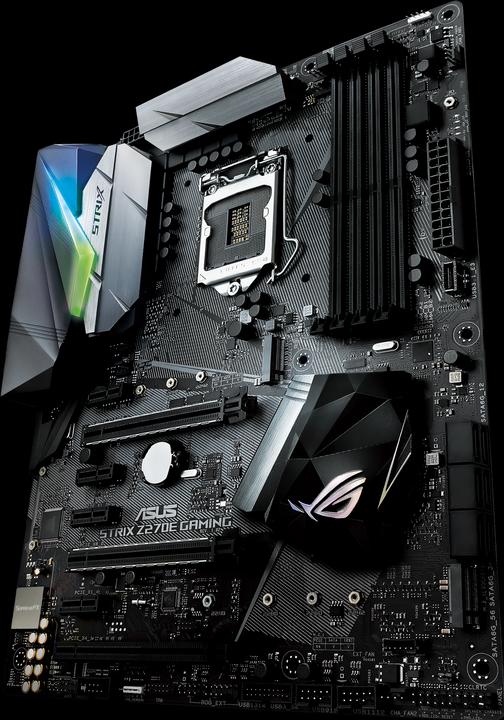

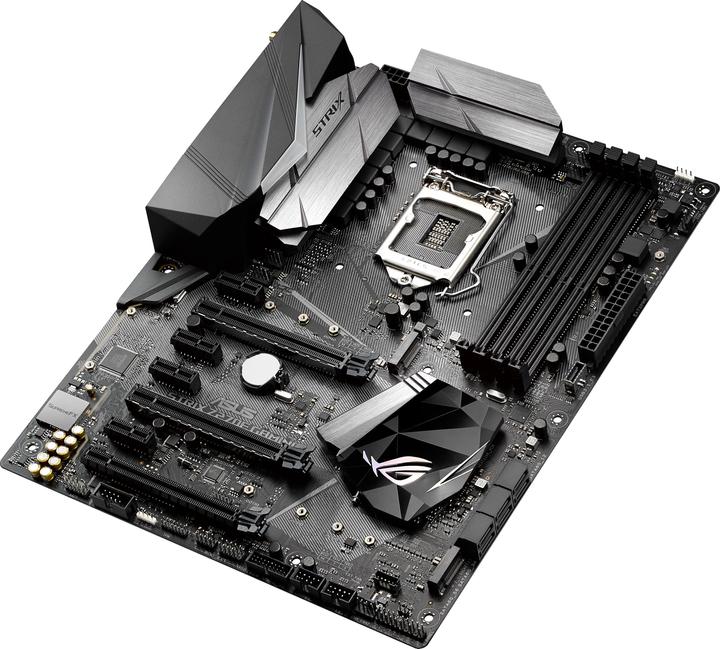

ASUS ROG STRIX Z270E GAMING (LGA 1151, Intel Z270, ATX)

Art-Nr 6067322
 8 piece(s) in our warehouse

Availability

Mail delivery

  • 8 piece(s)
    in our warehouse

PickMup

Collection

  • Basel: only 1 piece(s)
  • Bern: only 1 piece(s)
  • Dietikon: only 1 piece(s)
  • Geneva: only 1 piece(s)
  • Kriens: only 1 piece(s)
  • Lausanne: only 1 piece(s)
  • St Gallen: only 1 piece(s)
  • Winterthur: today at 13:30
  • Wohlen: only 2 piece(s)
  • Zurich: only 3 piece(s)

If ordered immediately.
Information subject to change.

View details

12

Specifications

Key specifications

PCI express version (max.)3
Multi-GPU technology,

General information

Manufacturer ASUS
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number6067322
Manufacturer no.90MB0RN0-M0EAY0
Release date05.01.2017
Sales rank in Product type Motherboards2 of 388
External links Manufacturer's site (en)

Motherboard properties

Form factor
ATX
i

ATX

ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995 to improve on previous de facto standards like the AT form factor.

More information...

Yes
Yes
i

USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. The standard from 2008 defines a 5 Gbit/s transfer rate.

Yes
i

The Unified Extensible Firmware Interface (UEFI) is a specification that defines a software interface between an operating system and platform firmware. UEFI is meant as a replacement for the Basic Input/Output System (BIOS) firmware interface, present in all IBM PC-compatible personal computers. In practice, most UEFI images have legacy support for BIOS services. UEFI can be used to allow remote diagnostics and repair of computers, even without another operating system.

More information...

Yes

Memory

i

Memory

Computer data storage, often called storage or memory, is a technology consisting of computer components and recording media used to retain digital data. It is a core function and fundamental component of computers.

More information...

Number of memory modules
4 x
Max. memory
64 GB
Max. RAM OC
i

Max. RAM OC

Describes how much memory can be overclocked (maxium RAM overclocking).

3866 MHz
RAM buffer
i

RAM buffer

In addition to bandwidth and capacity variants, modules can
1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation.
2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation.
3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.

unbuffered

Mass storage controller 1

S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

6 x
2 x
RAID configuration
i

RAID configuration

RAID (redundant array of independent disks, originally redundant array of inexpensive disks) is a storage technology that combines multiple disk drive components into a logical unit. Data is distributed across the drives in one of several ways called "RAID levels", depending on what level of redundancy and performance (via parallel communication) is required.

More information...

0
i

0

(block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance.

More information...

,
1
i

1

(mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency.

More information...

,
i

(block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure.

More information...

,

Expansion slots

i

Expansion slots

The expansion card (also expansion board, adapter card or accessory card) in computing is a printed circuit board that can be inserted into an electrical connector, or expansion slot on a computer motherboard, backplane or riser card to add functionality to a computer system via the expansion bus.

More information...

PCI express version (max.)
i

PCI express version (max.)

PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a computer expansion card standard designed to replace the older PCI, PCI-X, and AGP bus standards. PCIe has numerous improvements over the aforementioned bus standards, including higher maximum system bus throughput, lower I/O pin count and smaller physical footprint, better performance-scaling for bus devices, a more detailed error detection and reporting mechanism, and native hot-plug functionality. More recent revisions of the PCIe standard support hardware I/O virtualization.

More information...

3
3 x
PCI Express x1
i

PCI Express x1

PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes.

More information...

4 x

Expansion slot speed

i

Describes the count of the PCI-E slots with the slot size of x16 and are wired electrically x16.

More information...

2 x
i

Beschreibt den Anteil der PCI-E Slots die mechanisch eine Steckplatzgrösse von x16 haben und elektrisch auch x16 verbunden sind.

1 x

Graphic connectors

DisplayPort
i

DisplayPort

DisplayPort is a digital display interface standard (approved May 2006, current version 1.1a approved on January 11, 2008) put forth by the Video Electronics Standards Association (VESA). It defines a new license-free, royalty-free, digital audio/video interconnect, intended to be used primarily between a computer and its display monitor, or a computer and a home-theater system.

More information...

1 x
DVI-D
1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x
DisplayPort version
1.20 x

Network

RJ45/LAN port
1 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
Intel
i

Intel

Intel Corporation is an American multinational semiconductor chip maker corporation headquartered in Santa Clara, California.

More information...

Wireless connectivity

i

Wireless connectivity

All network connectivity bluetooth, infrared ports, WLAN, UMTS etc.
Standards are listed here as well.

Wi-Fi
i

Wi-Fi

A wireless local area network (WLAN) links two or more devices using some wireless distribution method (typically spread-spectrum or OFDM radio), and usually providing a connection through an access point to the wider Internet.

More information...

Yes
Wi-Fi standard
i

Wi-Fi standard

Describes the supported modes of transmission of a WLAN.

More information...

802.11 a
i

802.11 a

IEEE 802.11a-1999 or 802.11a is an amendment to the IEEE 802.11 specification that added a higher data rate of up to 54 Mbit/s using the 5 GHz band. It has seen widespread worldwide implementation, particularly within the corporate workspace. The amendment has been incorporated into the published IEEE 802.11-2007 standard.

More information...

,
802.11 ac
,
802.11 b
i

802.11 b

IEEE 802.11b-1999 or 802.11b, is an amendment to the IEEE 802.11 specification that extended throughput up to 11 Mbit/s using the same 2.4 GHz band.

More information...

,
802.11 g
i

802.11 g

IEEE 802.11g-2003 or 802.11g is an amendment to the IEEE 802.11 specification that extended throughput to up to 54 Mbit/s using the same 2.4 GHz band as 802.11b.

More information...

,
802.11 n
i

802.11 n

IEEE 802.11n-2009 is an amendment to the IEEE 802.11-2007 wireless networking standard to improve network throughput over the two previous standards—802.11a and 802.11g—with a significant increase in the maximum net data rate from 54 Mbit/s to 600 Mbit/s (slightly higher gross bit rate including for example error-correction codes, and slightly lower maximum throughput) with the use of four spatial streams at a channel width of 40 MHz.802.11n standardized support for multiple-input multiple-output and frame aggregation, and security improvements, among other features.

More information...

Bluetooth
i

Bluetooth

The device can be connected to another device via Bluetooth.

Yes

Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

7.1 Channel
Audio (3. 5 mm) connectors
5 x
Optical TOSLINK
i

Optical TOSLINK

S/PDIF (Sony/Philips Digital Interconnect Format) is a type of digital audio interconnect cable used in consumer audio equipment to output audio over reasonably short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.

More information...

1 x

Internal interfaces

USB 3.0 type A
i

USB 3.0 type A

The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus.

More information...

1 x
USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

3 x
Number of fan connector
6
Onboard power button
Yes
Reset button onboard
Yes
Temperature sensor connections
1 x

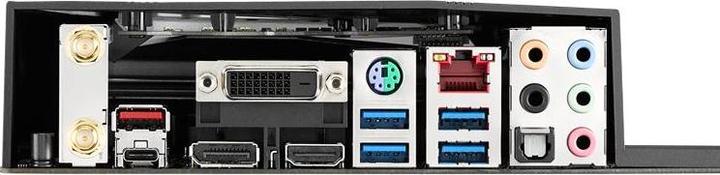

External interfaces

i

The PS/2 connector is a 6-pin Mini-DIN connector used for connecting some keyboards and mice to a PC compatible computer system.

1 x
USB 3.0 type A
i

USB 3.0 type A

The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus.

More information...

4 x
1 x
1 x

Delivery contents

i

Delivery contents

The scope of delivery means the included accessories.

S-ATA cable
4 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

Yes

Product dimensions

i

Product dimensions

Physical size of an object

Length
305 mm
Width
244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data

Correction suggestion

Comment

Report incorrect data

Returns and warranty

Dead on arrival (DOA) 7 Days Bring-in
Warranty 36 month Bring-in
30-day right of return
i

30-day right of return

This product may be returned within 30 days after shipment or collection. A minimum of 10% will be deducted from opened products. Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified warranty process to view the warranty period as well as any warranty extensions you may have purchased. This will ensure that your return or warranty case is processed quickly and effectively.

Availability

Mail delivery

 8 item(s) ready for delivery from our warehouse
Expected delivery date: tomorrow 23.11.2017 if ordered by today 17:00.

Collection

Basel

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Bern

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Dietikon

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Geneva

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Kriens

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Lausanne

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

St Gallen

 only 1 piece(s) ready for pick up
Ready for collection immediately after ordering.

Winterthur

 Ready for collection approx today at 13:30 if ordered by today 08:10
8 item(s) at our central warehouse

Wohlen

 only 2 piece(s) ready for pick up
Ready for collection immediately after ordering.

Zurich

 only 3 piece(s) ready for pick up
Ready for collection immediately after ordering.

PickMup

 8 item(s) ready for delivery from our warehouse
Expected delivery date: tomorrow 23.11.2017 if ordered by today 17:00. What is PickMup?

If ordered immediately.
Information subject to change.

Matching accessories

Keyboards

ROG Claymore (USB, CH, Cable, MX-Red)
CHF 229.-
ASUS ROG Claymore (USB, CH, Cable, MX-Red)
5

Availability

Mail delivery

  • more than 10 piece(s)
    in our warehouse

PickMup

Collection

  • Basel: only 1 piece(s)
  • Bern: today at 12:45
  • Dietikon: today at 14:30
  • Geneva: today at 13:30
  • Kriens: today at 11:20
  • Lausanne: today at 15:40
  • St Gallen: only 1 piece(s)
  • Winterthur: today at 13:30
  • Wohlen: only 1 piece(s)
  • Zurich: today at 12:30

If ordered immediately.
Information subject to change.

View details

+1

Mouse

ROG Spatha (Cable, Wireless)
CHF 169.-
ASUS ROG Spatha (Cable, Wireless)
10

Availability

Mail delivery

  • more than 10 piece(s)
    in our warehouse

PickMup

Collection

  • Basel: today at 13:10
  • Bern: today at 12:45
  • Dietikon: today at 14:30
  • Geneva: today at 13:30
  • Kriens: today at 11:20
  • Lausanne: today at 15:40
  • St Gallen: today at 15:30
  • Winterthur: today at 13:30
  • Wohlen: today at 11:00
  • Zurich: today at 12:30

If ordered immediately.
Information subject to change.

View details

CPU water coolers

Customer questions and answers

The 3 most helpful customer questions

User simon.rosenberger

Hallo Zusammen

Meine Komponenten sind in die Jahre gekommen und müssen ausgetauscht werden. Passen diese Sachen zusammen?

Einkaufsliste:

https://www.digitec.ch/de/ShopList/Show?shopListId=6339BFFF1052F1D01D110699F7782CC4

Besten Dank für Eure Meinungen.

Gruess
Migu

01.08.2017
2 answers
User mariu5

Hallo zusammen,

Was ist genau der Unterschied zu der Z270F Version? Sehen für mich auf den ersten Blick gleich aus.

Danke und Gruss

13.08.2017
1 answer
User nbfsh579
Accepted answer

Die Z270E Version hat zusätzlich:

- Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
- Bluetooth V4.1

Z270F hat kein Wi-Fi und Bluetooth!

Vergleiche die beiden Mainboards auf folgender Seite:

asus.com/ch-de/Motherboards...

13.08.2017
User SKCMLG

Ich habe 6 Lüfter bei meinem Gehäuse.
Zählen die 6 Pätze inkl. CPU Kühler?
Reichen die 6 Steckplätze?

18.04.2017
1 answer
User Greneey
Accepted answer

Gemäss Handbuch besitzt das Board folgende FAN-Anschlüsse:
1x 4-polig CPU_FAN
1x 4-polig CPU_OPT (Sekundärer CPU_FAN)
1x 4-polig AIO_PUMP (Für Wasserpumpen)
1x 4-polig H_AMP_FAN
1x 5-polig EXT_FAN (Wird für eine externe ASUS FAN Controller Karte benötigt, kann nicht für einen FAN benutzt werden)
2x 4-polig CHA_FAN (Eigentlich für Gehäuse Lüfter angedacht)

Handbuch: dlcdnet.asus.com/pub/ASUS/m...

Selbst wenn du alle Anschlüsse nebst dem CPU FAN für Gehäuselüfter missbrauchen würdest hättest du nur 5 Anschlüsse zur Verfügung.
Ich empfehle den Einsatz von sogenannten "FAN Splittern" oder eines "FAN controller" um mehr Anschlüsse für Gehäuselüfter zu erhalten.

18.04.2017

Ask a question

Ask other customers about product properties, performance or use.
If you have any questions about your order, please contact the Customer service.

Your contributions in the community are subject to the Community terms and conditions.

Customer ratings

Overall rating

12
Avg. 4.8 of 5 stars

The 3 most useful ratings

User rschleiss
ROG STRIX Z270E GAMING (LGA 1151, Intel Z270, ATX)

Guetes Mainboard für OC

Sehr Gute Mainboard!
die Z270E ist ja bekannt als "Extreme" version von der STRIX Serie,
Die Board hat nur das Wifi dazu VS eine F Version. ;-)

Sonst die RGB beleuchtung sieht wirklich toll aus muss ich sagen
Wurde ich entfehlen an jemand der ein Compi mit Glass / Fenster Bauen will.

mein i7 7700k habe ich auf 5Ghz gebracht wie ein Kinderspiel.
more


+
+
+
+
-
-

20.01.2017
0 Comments
Report abuse

You must log in to report an abuse.

ASUS ROG STRIX Z270E GAMING (LGA 1151, Intel Z270, ATX) ASUS ROG STRIX Z270E GAMING (LGA 1151, Intel Z270, ATX)
