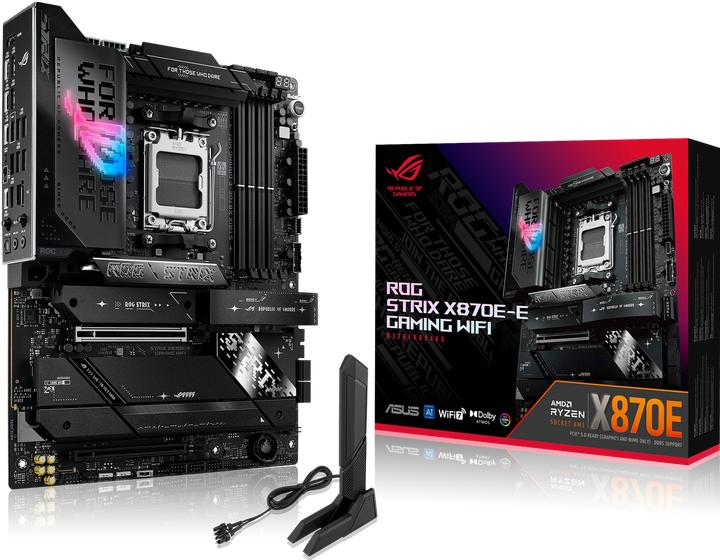

The ROG Strix X870E-E Gaming WiFi is designed to harness the full potential of AMD Ryzen 9000 series processors. With support for PCIe 5.0, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is simplified and performance is maximized. Two USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-notch connectivity, while robust heatsinks keep M.2 drives cool even under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also provides the necessary power and connectivity for advanced AI PC applications.
ASUS AI Overclocking creates profiles for the CPU and cooling to determine the optimal configuration and push the system to its limits.
Tune the temperatures and noise levels of any build with a single click.
AI Networking II combines intelligent technologies to continuously optimize network performance, enable a reliable and seamless connection, and unleash the full speed of WiFi 7.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (5x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Power-On Button, Trusted Platform Module |
Item number | 49774821 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1IB0-M0EAY0 |
Release date | 2.9.2024 |
Sales rank in Category Motherboards | 2 of 1032 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Clear CMOS Button, Power-On Button, Trusted Platform Module |
Operating system compatibility | Windows, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8400 MHz |
Supported memory speed | 8000 MHz, 8400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | 2 x USB-C, HDMI (1x) |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Audio Out (1x), Microphone connection (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (5x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x16 (5x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |
USB ports | USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable, Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 2060 g |
Length | 35.50 cm |
Width | 28.50 cm |
Height | 8.50 cm |
Weight | 2.86 kg |
