The ROG Strix X670E-F Gaming WiFi is the secret alter ego of the Strix X670E-A. A significant performance boost unleashes its inner demons and provides the exclusive ROG overclocking tools with even more room to unlock the potential of AMD Ryzen processors from the 7000 series. The black PCB and dark metal heatsinks aesthetically complement a variety of system hardware and build themes, while a touch of customizable color on the cover subtly announces the ROG presence in your AM5 build.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 22445221 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BA0-M0EAY0 |
Release date | 16.8.2022 |
External links |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X670E |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6E / 802.11az |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

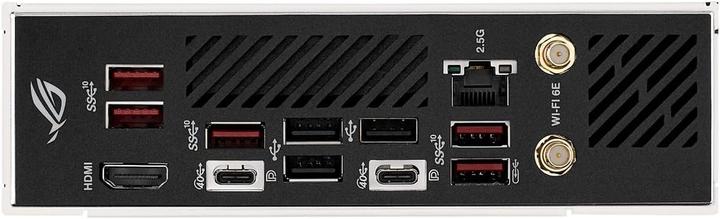

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In, Coaxial S/PDIF (1x), Headphones, Microphone |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 30.50 mm |
Weight | 2550 g |
Length | 34.20 cm |
Width | 28.40 cm |
Height | 7.60 cm |
Weight | 2.33 kg |
