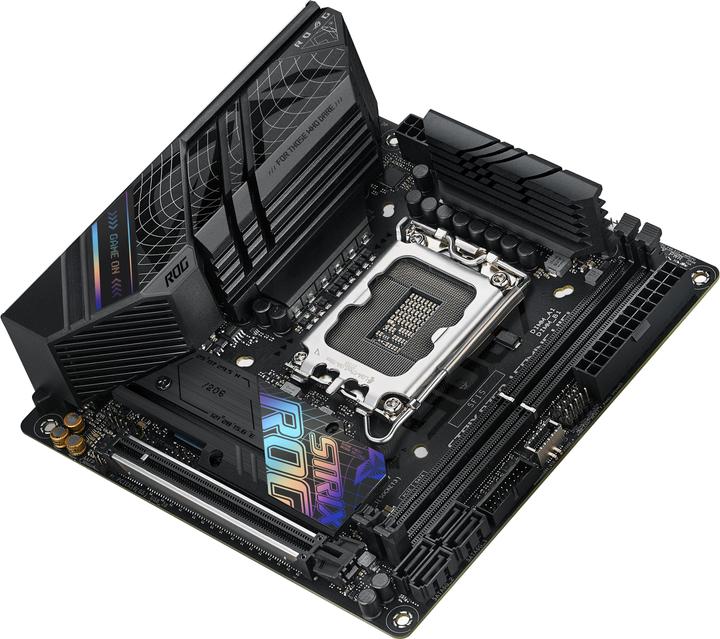

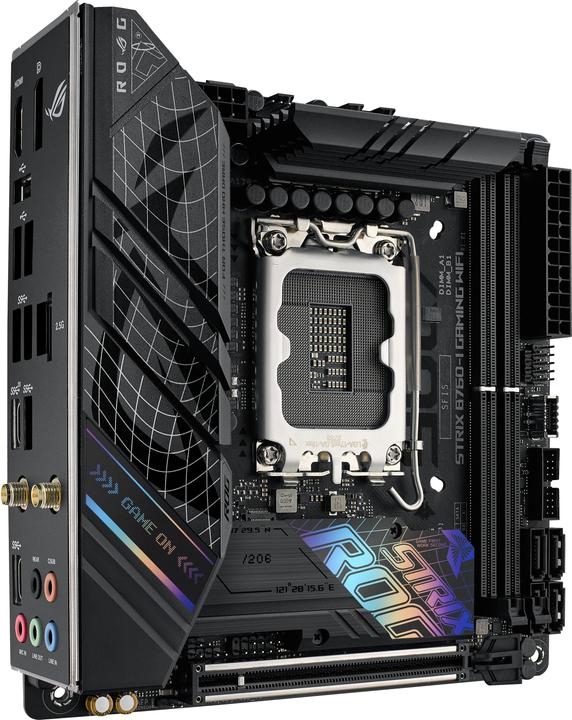

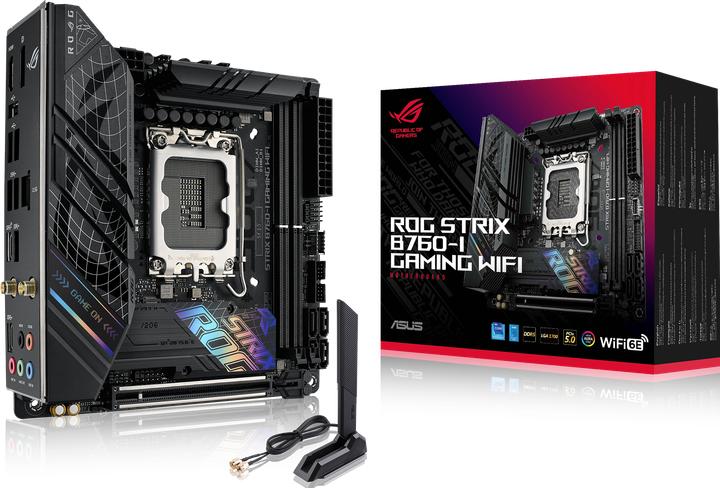

ASUS ROG STRIX B760-I GAMING WIFI

LGA 1700, Intel B760, Mini-ITX
42Ratings
BrandMore from ASUS
Delivered tomorrow
More than 10 items in stock

Product details

Let your system run at full throttle with the ROG Strix B760-I, a bold foundation for your next SFF build. Equipped with ultra-fast DDR5 memory, low-latency WiFi 6E networking, and a future-proof PCIe 5.0 slot, it is designed for wild speeds and offers incredible support for the 13th generation thanks to its powerful VRM and thermal solution.

Key specifications

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector, RGB header, Temperature sensor connections
Item number
23621341

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1D90-M1EAY0
Release date
29.11.2022
Sales rank in Category Motherboards
60 of 979
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Front panel audio connector, RGB header, Temperature sensor connections
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7600 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI Type A
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Chip
SupremeFX S1220A
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x), Jack 3.5mm Line In (1x), Microphone

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 PCIe (2x), S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
5
Number of fan connector
1

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (3x), USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
170 mm
Width
170 mm
Height
50 mm
Weight
644 g

Package dimensions

Length
24 cm
Width
11 cm
Height
20 cm
Weight
1.18 kg
