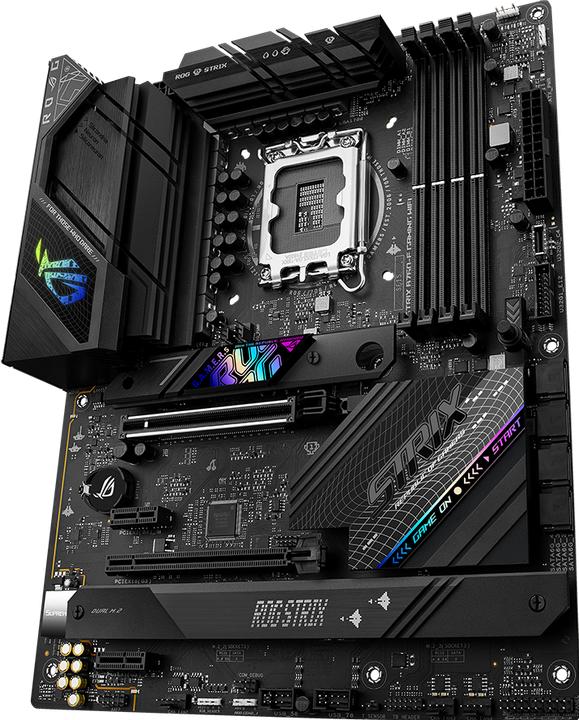

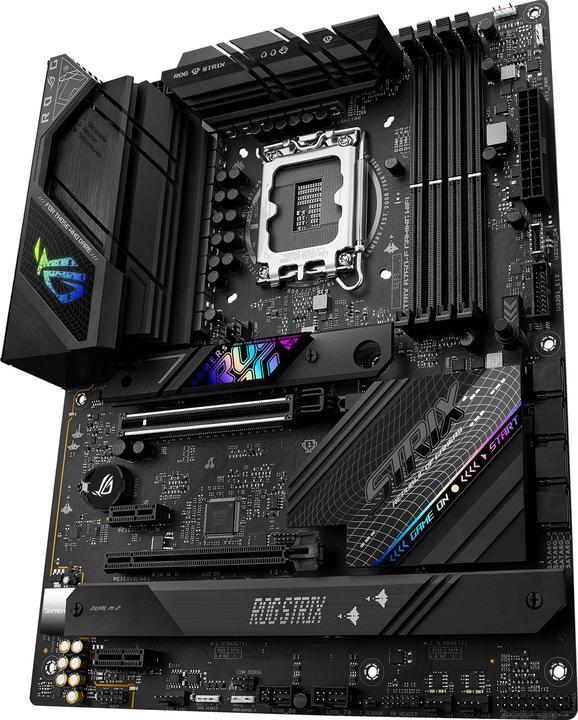

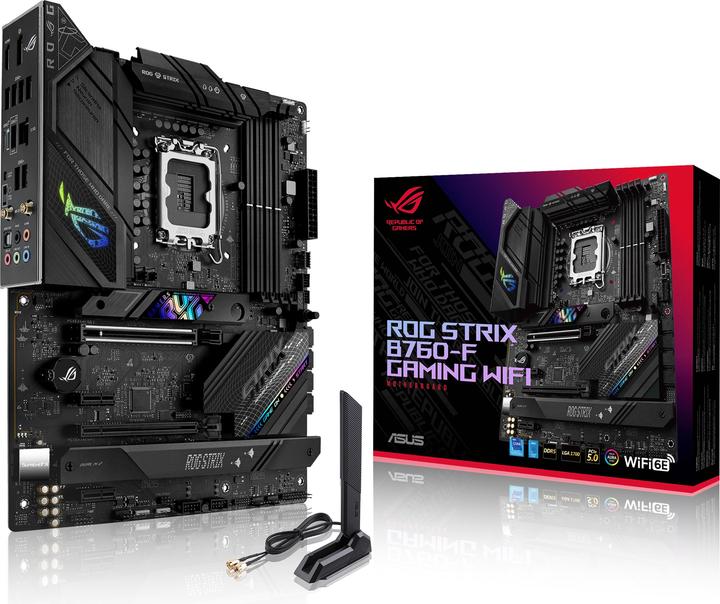

The ASUS ROG STRIX B760-F Gaming WIFI motherboard is a powerful and versatile choice for gamers and enthusiasts using an Intel LGA 1700 processor. The board features a robust power supply that provides stable performance and overclocking capabilities.
Key features of the ASUS ROG Strix B760-F Gaming WIFI motherboard include support for DDR4 memory with a maximum capacity of 128 GB and a clock speed of up to 4800 MHz. It also offers a variety of ports and expansion options, including an M.2 slot for fast NVMe SSDs, USB 3.2 Gen 2 ports for rapid data transfers, and integrated Wi-Fi 6 for a fast and stable wireless connection.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x), USB 2.0 Header (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Item number | 23621347 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1CT0-M0EAY0 |
Release date | 29.11.2022 |
Sales rank in Category Motherboards | 50 of 1035 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7800 MHz |
Supported memory speed | 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x), Headphones, Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x), USB 2.0 Header (2x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 3) (1x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (6x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Back-to-BIOS button, Clear CMOS button, IO Shielding, Sata Cables, User manual |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 2040 g |
Length | 36 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 2.02 kg |
