Very good93/100
- Very good performance
- Modern and sophisticated technology
- DDR5
- M.2, USB 3.2 and PCIe 5.0
- Bluetooth and WLAN
- proper equipment
−28%

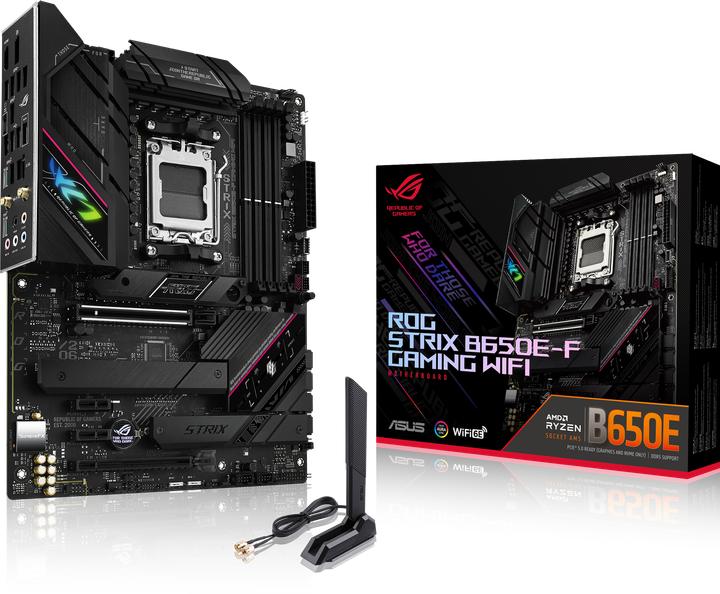

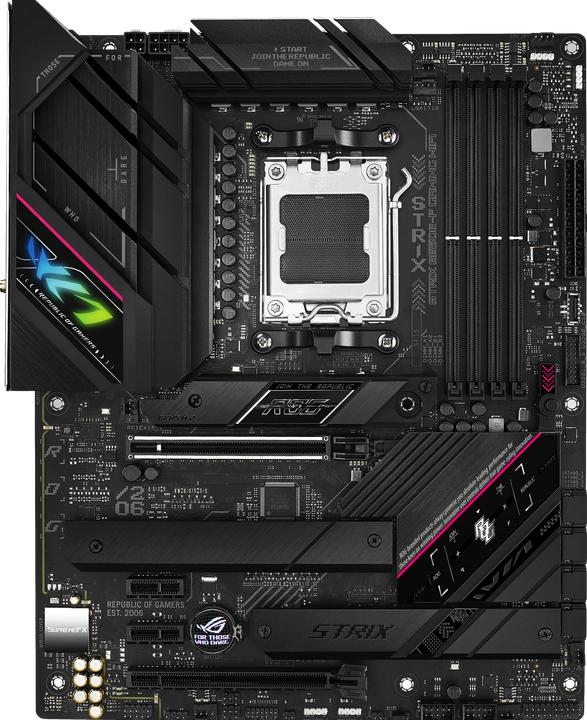

ASUS ROG Strix B650E-F Gaming WiFi
AM5, AMD B650E, ATXDelivered tomorrow
More than 10 pieces in stock
More than 10 pieces in stock
free shipping
Product details
This powerful machine is the centerpiece of your next hot rod. With stunning speeds of PCIe 5.0 and WiFi 6E, robust cooling from integrated heatsinks, and advanced power design tailored for Ryzen processors, the ROG Strix B650E-F leaves its competition in the dust.
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Memory type | DDR5-RAM |
Internal connections | M.2 PCIe (3x), S-ATA III (4x) |
Item number | 22605357 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer No. | 90MB1BQ0-M0EAY1 |
Release date | 22.9.2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650E |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8000 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10 |
Internal connections | M.2 PCIe (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 7 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (1x), USB-C 3.2 Gen 2x2 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 3066.15 kg |
Climate contribution | CHF 11.25 |
Scope of delivery | SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 2000 g |
Length | 34.90 cm |
Width | 27.80 cm |
Height | 8.10 cm |
Weight | 2.10 kg |
30-day right of return
36 Months Warranty (Bring-in)
1 additional offer
Compare products
Goes with
Reviews & Ratings
Warranty score
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec Galaxus- 1.MSI2.3 %
- 2.ASUS2.4 %
- 3.Gigabyte2.6 %
- 4.Biostar2.8 %
- 5.AsRock2.9 %
Warranty case duration
How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec Galaxus- 1.MSI3 days
- 2.ASUS6 days
- 3.Gigabyte7 days
- 4.AsRock11 days
- 4.Supermicro11 days
Return rate
How often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus- 1.MSI5.1 %
- 2.Gigabyte5.3 %
- 3.ASUS5.4 %
- 4.AsRock6 %
- 5.Sapphire7 %
