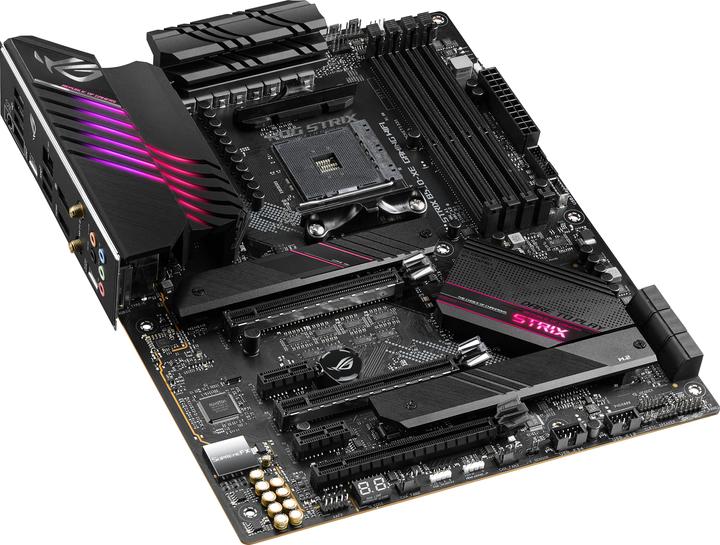

The motherboards of the ROG Strix B550 Gaming series offer a feature set typically found in the high-end ROG Strix X570 Gaming series, including the modern PCI Express 4.0 interface. The flagship of the B550 motherboard lineup, ROG Strix B550-XE Gaming WIFI, provides robust power delivery and effective cooling, making it well-suited for the popular AMD Ryzen 3rd generation processors and the modern AMD Ryzen 5000 processors (Zen 3 architecture).
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 SATA (2x), S-ATA III (6x) |
Wireless transmission | Bluetooth |
Item number | 14221291 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB17B0-M0EAY0 |
Release date | 9.3.2023 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 4866 MHz |
Supported memory speed | 2133 MHz, 2800 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD 3-Way CrossFireX, NVIDIA SLI |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel |
Max. port speed | 2.50 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 SATA (2x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (5x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4x S-ATA cables, USB-C cable |
Length | 305 mm |
Width | 244 mm |
Height | 305 mm |
Weight | 1380 g |
Length | 37 cm |
Width | 31 cm |
Height | 11 cm |
Weight | 3.17 kg |
