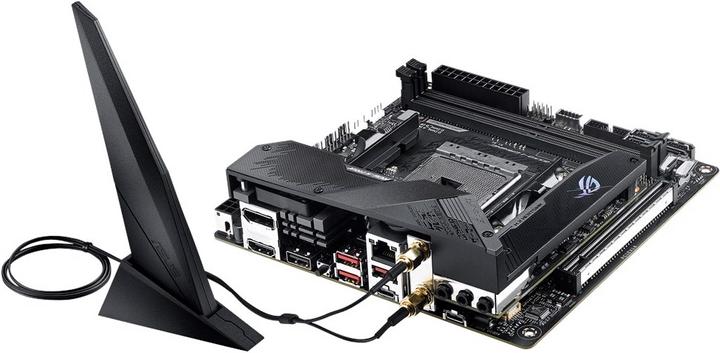

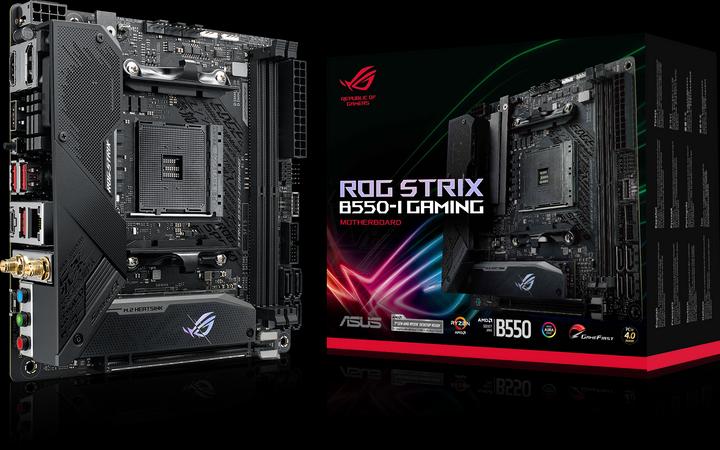

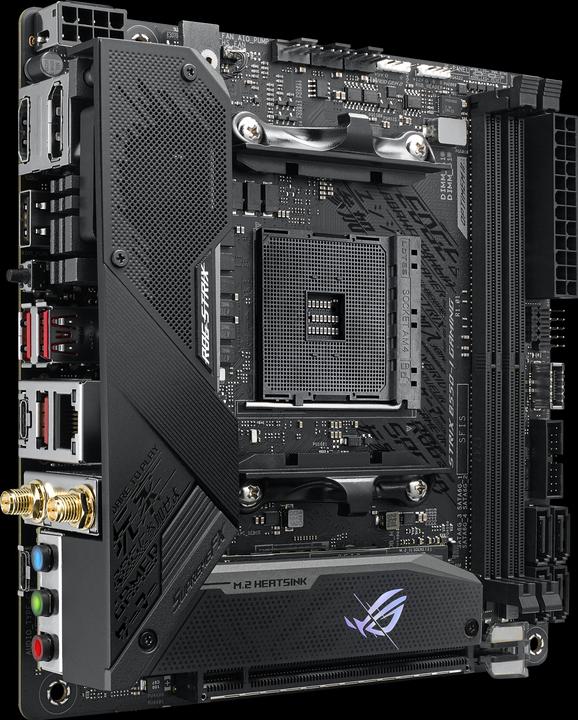

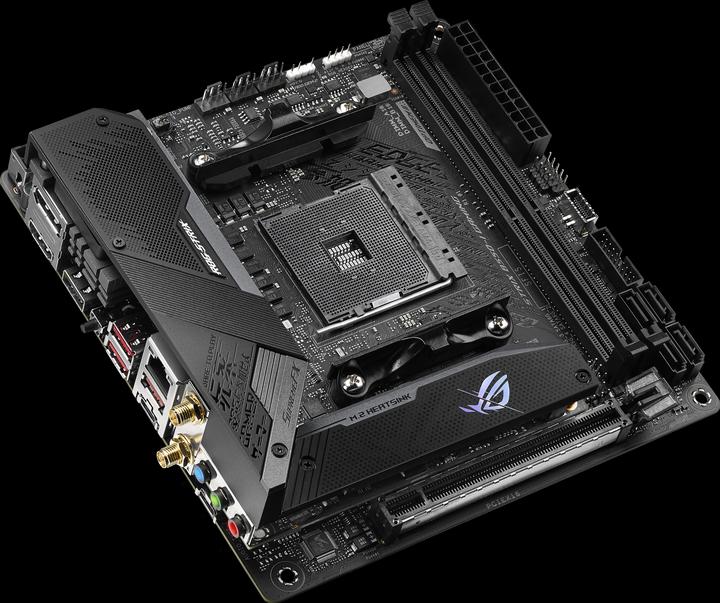

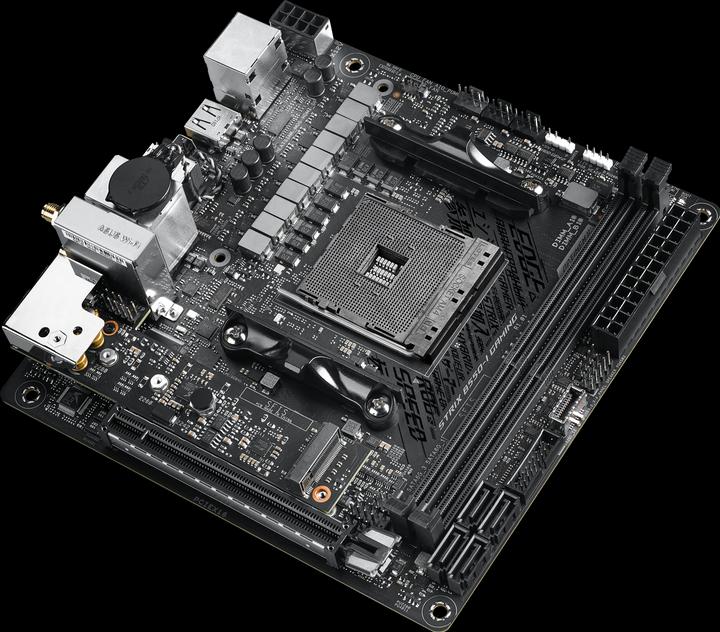

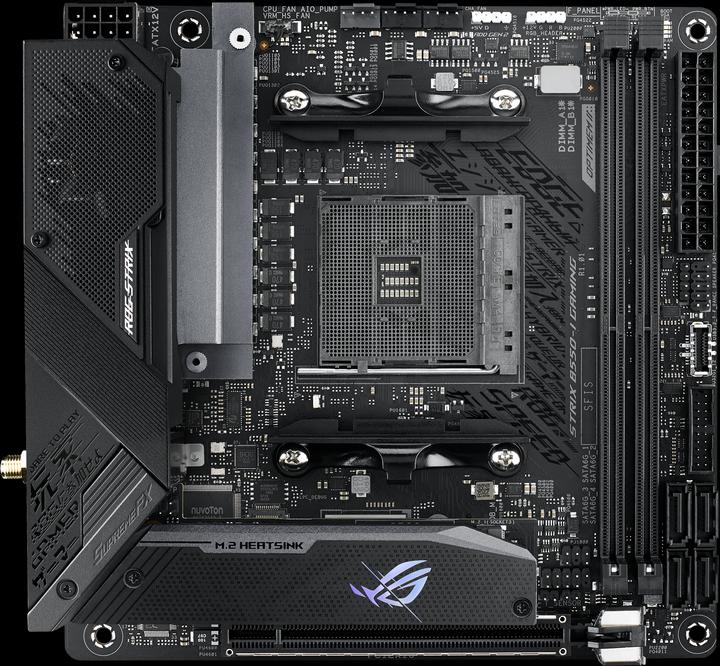

Comprehensive controls form the foundation of the ASUS Rog Strix series. The Rog Strix B550 motherboard offers flexible tools for fine-tuning every aspect of your system, allowing you to perfectly adjust the performance settings to match your workflow and maximize your productivity.
Processor family | Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Item number | 13348832 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB14L0-M0EAY0 |
Release date | 17.6.2020 |
Sales rank in Category Motherboards | 290 of 1021 |
Form factor | Mini-ITX |
Socket | AM4 |
Chipset | AMD B550 |
Operating system compatibility | Windows 10 |
BIOS type | Ami |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-3000, DDR4-3200 |
Max. RAM OC | 5100 MHz |
Supported memory speed | 2133 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

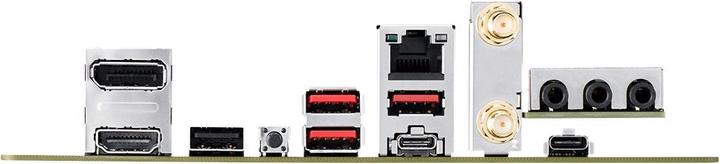

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel, Intel AX200 |
Max. port speed | 2.50 Gbit/s |
Chip | ROG SupremeFX |
Audio channel | 7.1 Channel |
Audio Connections | Audio In, Audio Out (1x), Jack 3.5mm Microphone In (1x) |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

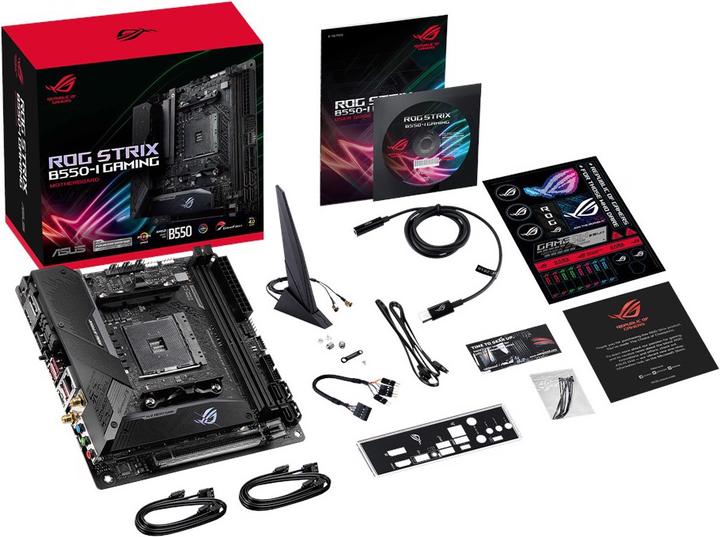

Scope of delivery | 1 x USB-C audio cable, 4 x Serial ATA cable |
Length | 170 mm |
Width | 170 mm |
Height | 170 mm |
Weight | 1100 g |
Length | 23 cm |
Width | 19 cm |
Height | 10 cm |
Weight | 1.11 kg |
