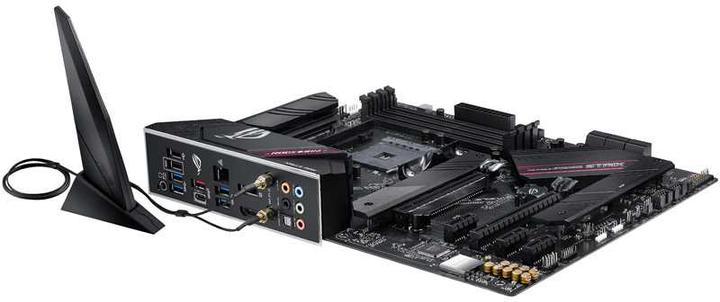

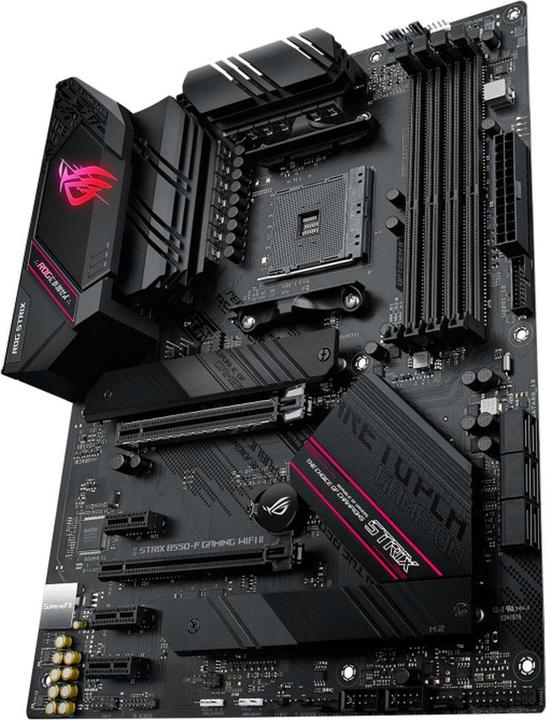

The ASUS ROG Strix B550-F Gaming WiFi II is based on the AMD B550 chipset and supports AMD processors for the AM4 socket. It has four DDR4 slots for up to 128 GB of RAM. The ASUS ROG Strix B550-F Gaming is also equipped with one PCIe 4.0 x16 slot, one PCIe 3.0 x16 and three PCIe 3.0 x1 slots. The ASUS ROG Strix B550-F Gaming WiFi II also has 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi 6, six SATA3 ports, two M.2 ports and a range of USB interfaces.
Mainboard features | Clear CMOS Button |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR4-RAM |
Internal connection options | 4-pin PWM (2x), M.2 PCIe (2x), S-ATA III (6x) |
Item number | 17442536 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB19V0-M0EAY0 |
Release date | 8.11.2021 |
Sales rank in Category Motherboards | 1 of 984 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 Home, Windows 10 Pro, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4000 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | 4-pin PWM (2x), M.2 PCIe (2x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (1x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 12-pin PCI-E, 8-pin EATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 68 mm |
Weight | 945 g |
Length | 34.90 cm |
Width | 28.70 cm |
Height | 7.40 cm |
Weight | 1.79 kg |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Digitec Galaxus
The B550 is not a high-end product and accordingly there are no high-flyer mainboards on this basis. But with its quantitatively slightly below, qualitatively clearly above the X470 capabilities and releases, it is a neat addition to the luxury I/O hub X570. This means that, contrary to its name, it does not want to and cannot be a replacement for the B450 savings tips, but competes at a level that...
